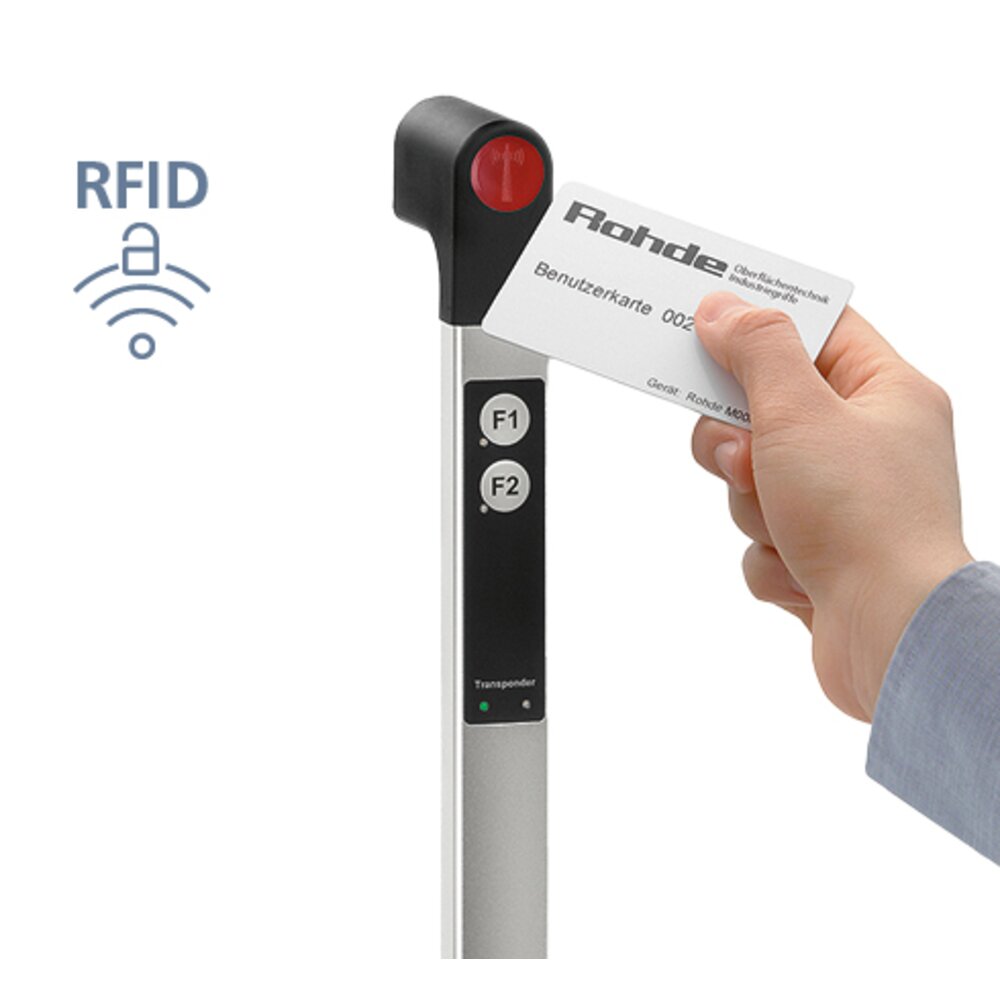

  • Close-up of FG4-T transponder handle with two push-buttons labeled F1 and F2, two LEDs, and a hand holding an RFID card near the handle's transponder reader area.
Close-up of FG4-T transponder handle with two push-buttons labeled F1 and F2, two LEDs, and a hand holding an RFID card near the handle's transponder reader area.

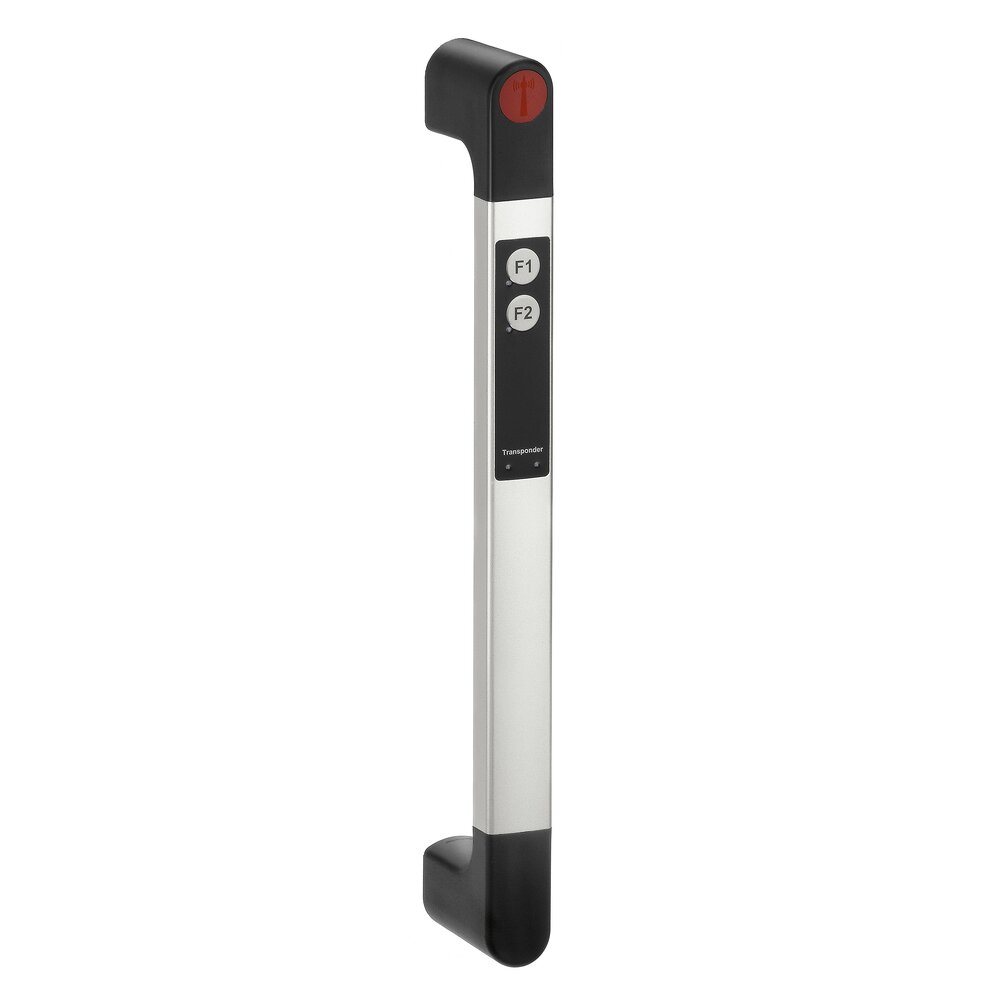

Functional handles FG4-T

Versions:
Keypad with 2 optional push-buttons and 2 LEDs. Button labelling as standard with F1 to F2 or on customers request. Integrated transponder reader in upper handle shank with a range of approx. 15 cm. Transponder in 3 different versions.

Connection:
12-pole, coupling with 10 m ready made cable available as accessory .

Special designs:
Further handle lengths, other transponder versions and labelling on request.

Functionality:
The transponder handle is an independent system with optional activation and deactivation of operator transponder. Therefore no additional reading device or connection to an external computer is neccessary.
The learn and delete mode will be started and stopped by a master transponder. The particular status will be indicated by both LEDs located below the writing "Transponder".

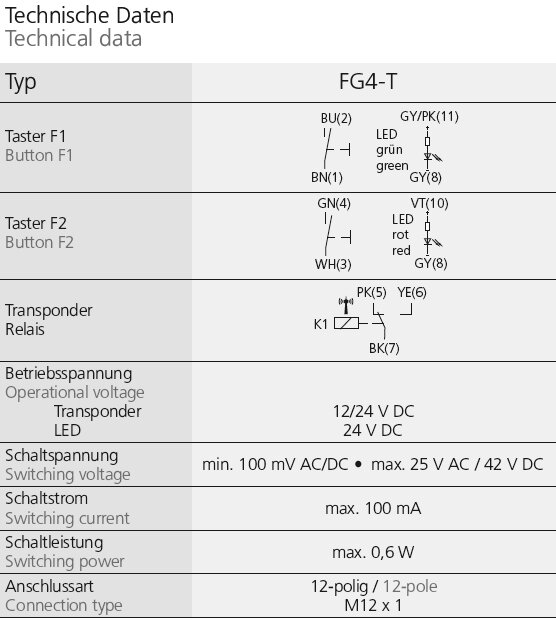

A detailed description of the functions and pin assignments will be provided with the handles.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities
  • labeling possible
  • further color versions
show more show less

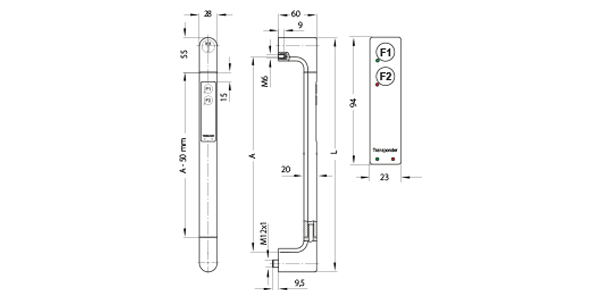

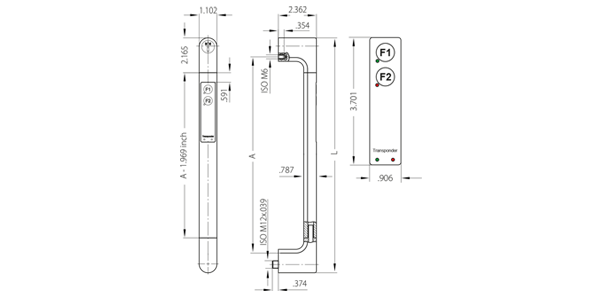

Technical drawing of FG4-T transponder handle with front, side, and button panel views displaying dimensions and labeled buttons F1 and F2 with LED indicators
Unit of measure
A L Order-No.
A L Order-No.
A 350 L 410 Order-No. FG4-T2.350.01 3D+CAD
Version Order-No.
Version Order-No.
Version 10m cable welded to coupling (12-pole, M 12 x 1) Order-No. FZ-KS.W12.10
Version blank card Order-No. FZ-TP.001
Version key fob Order-No. FZ-TP.002
Hand with a black smartwatch displaying a blank white screen on the wrist against a white background. Version watch-dummy Order-No. FZ-TP.003
