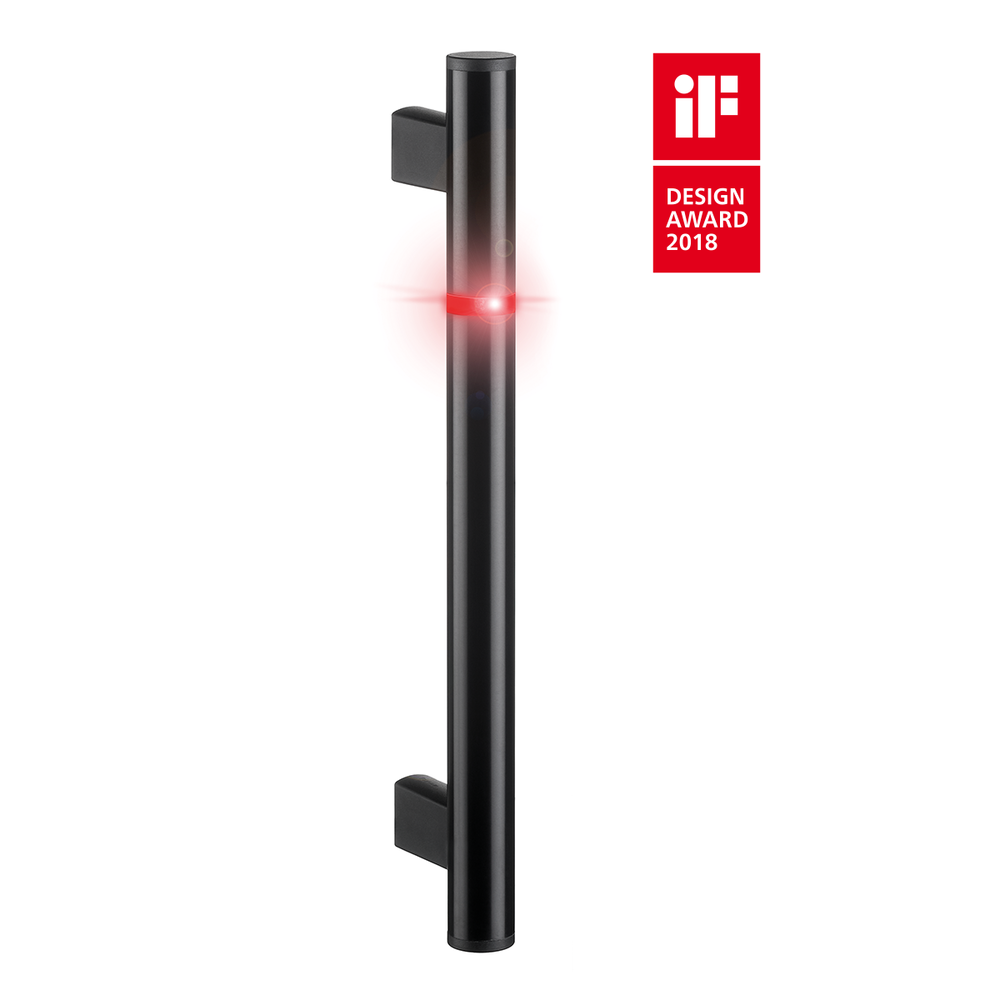

Black cylindrical handle with a red LED indicator light ring in the middle and two black mounts, iF Design Award 2018 logo displayed beside it.
Functional handles FG17

Functional handles FG17

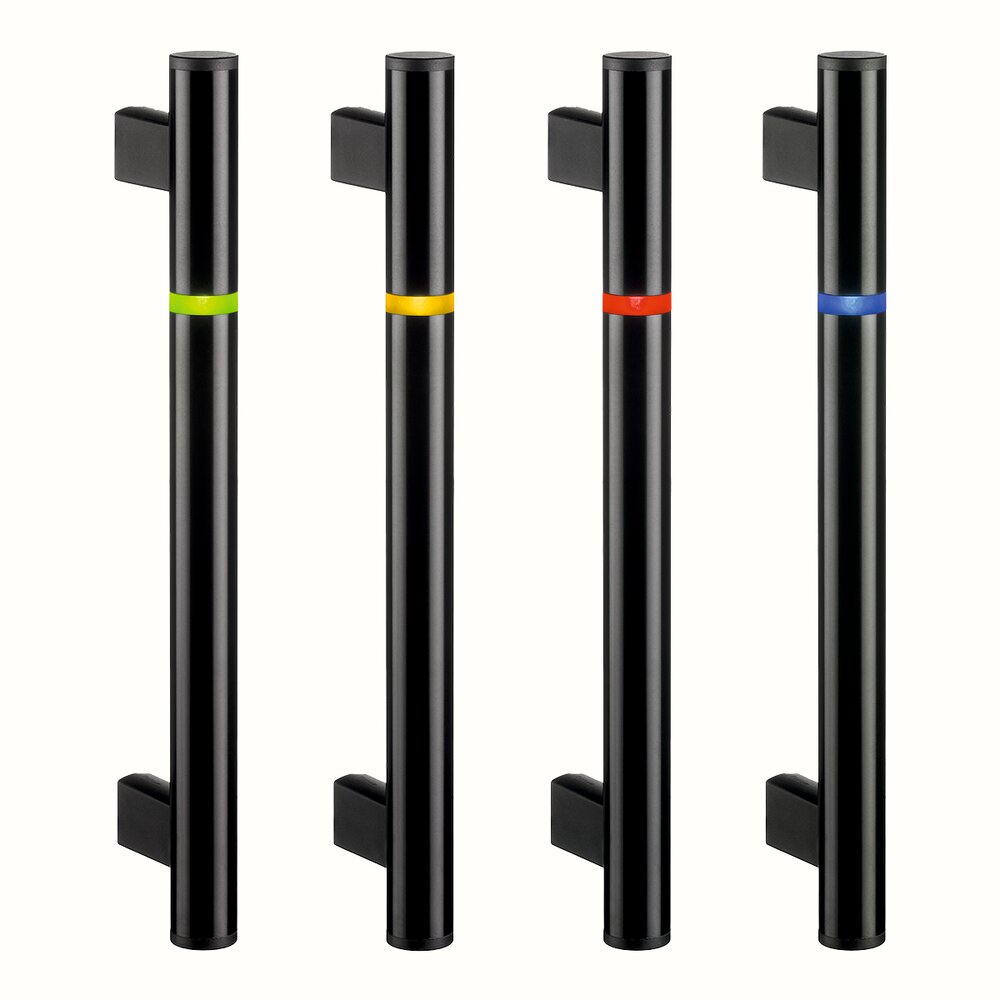

Handle with indicator light in the colours red, yellow, green or blue.

Material and surface:
Aluminum tube AlMgSi 0.5; grounded and black anodized. Shanks and caps made of polyamide PA6 black with fine structure.

Function elements:
LED ring.

Connection:
Connection cable 5m led out of the tube holder.

Protection:
IP 54.

Note:
Other lengths and designs on request.

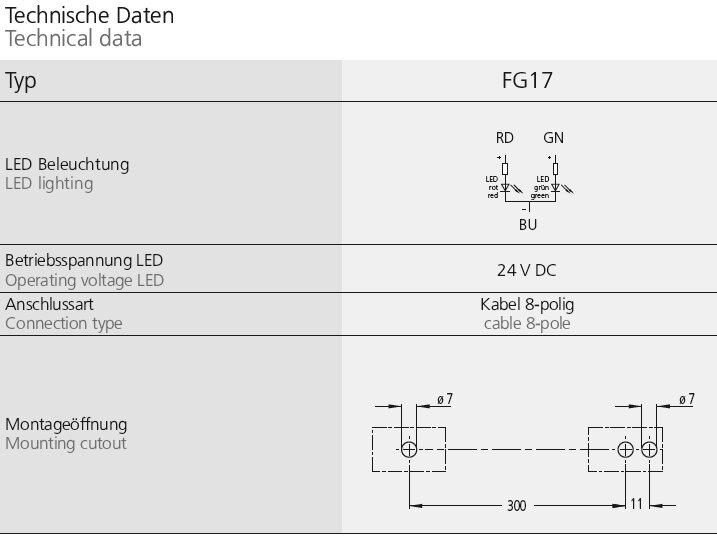

Technical data
Unit of measure
A Order-No.
A300 Order-No. FG17-10.300.04 3D+CAD
Functional handles FG17
