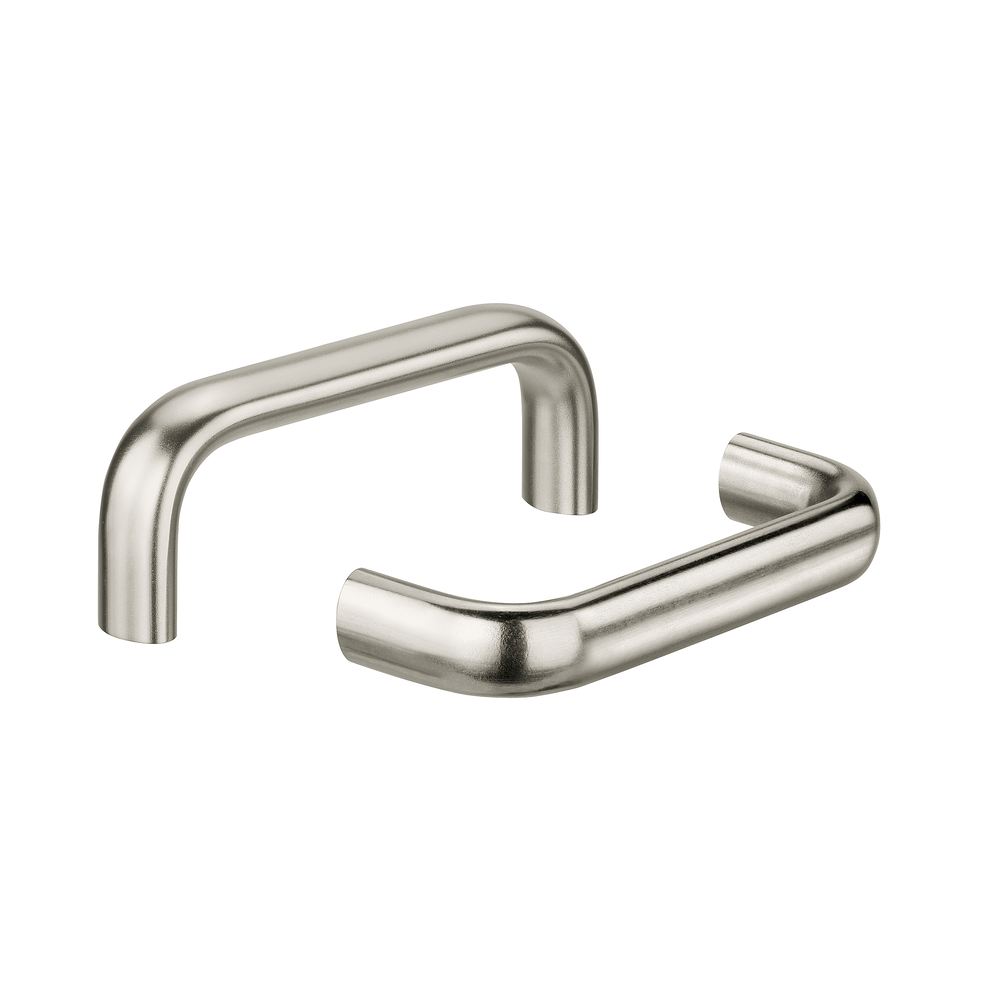

Handles EO

Material and surface:
Oval-profiled stainless steel made of Materialno: 1.4307. or 1.4404.

Version A:
Surface ground, brushed and electropolished.

Version B:
Surface ground, blasted and electropolished with a half-matt finish.

Version C:
Surface ground, brushed and electropolished.

Note:
Other handle lengths on request.

Stress resistance:
min. 1000 N.

Version EO-20

EO-20
Unit of measure
	Type
A	Surface ground with a half-matt finish (Material: 1.4307 / 304L) Order-No.	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No.	Surface ground with a half-matt finish (Material: 1.4404 / 316L) Order-No.	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No.
A100	Surface ground with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.100.31 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.100.36 3D+CAD	Surface ground with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.100.41 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.100.46 3D+CAD
A120	Surface ground with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.120.31 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.120.36 3D+CAD	Surface ground with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.120.41 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.120.46 3D+CAD
A160	Surface ground with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.160.31 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.160.36 3D+CAD	Surface ground with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.160.41 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.160.46 3D+CAD
A180	Surface ground with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.180.31 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-20.180.36 3D+CAD	Surface ground with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.180.41 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-20.180.46 3D+CAD

Version EO-26

EO-26
Unit of measure
	Type
A	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No.	Surface ground, brushed and electropolished (Material: 1.4307 / 304L) Order-No.	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No.	Surface ground, brushed and electropolished (Material: 1.4404 / 316L) Order-No.
A120	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-26.120.36 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4307 / 304L) Order-No. EO-26.120.38 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-26.120.46 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4404 / 316L) Order-No. EO-26.120.48 3D+CAD
A160	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-26.160.36 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4307 / 304L) Order-No. EO-26.160.38 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-26.160.46 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4404 / 316L) Order-No. EO-26.160.48 3D+CAD
A180	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-26.180.36 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4307 / 304L) Order-No. EO-26.180.38 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-26.180.46 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4404 / 316L) Order-No. EO-26.180.48 3D+CAD
A250	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-26.250.36 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4307 / 304L) Order-No. EO-26.250.38 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-26.250.46 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4404 / 316L) Order-No. EO-26.250.48 3D+CAD
A350	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L) Order-No. EO-26.350.36 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4307 / 304L) Order-No. EO-26.350.38 3D+CAD	Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L) Order-No. EO-26.350.46 3D+CAD	Surface ground, brushed and electropolished (Material: 1.4404 / 316L) Order-No. EO-26.350.48 3D+CAD
