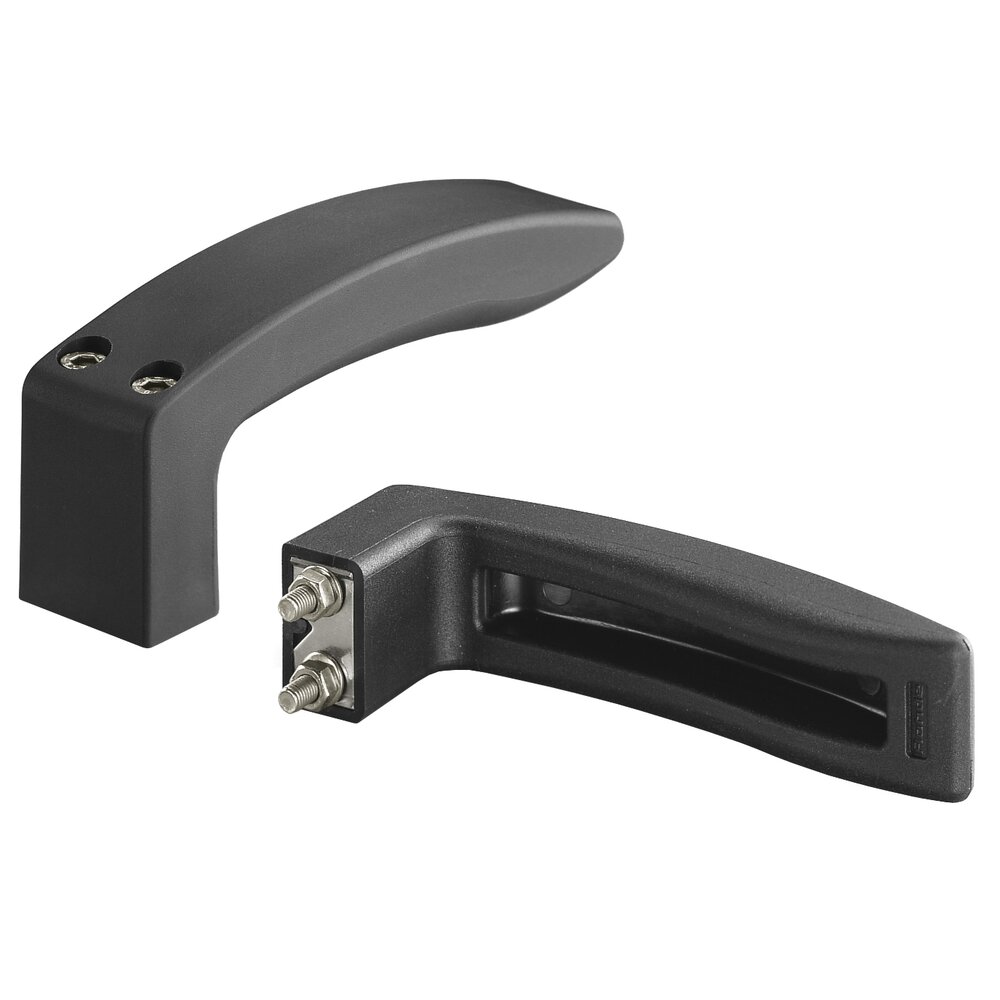

Handles KW

For all usages where one sided fastening is required, stable in form and highly stressable.

Material and surface:
Polyamide PA 6, glass ball reinforced, black, matt with fine structure.

Scope of supply:
Including cheese head screws with hexagon sockets DIN 912 and nuts DIN 934 with washers DIN 125, plus a clamping plate of stainless steel for additional torsion locking. All items made of stainless steel (Material no. 1.4301).

Stress resistance:
min. 800 N.

Technical data
Unit of measure

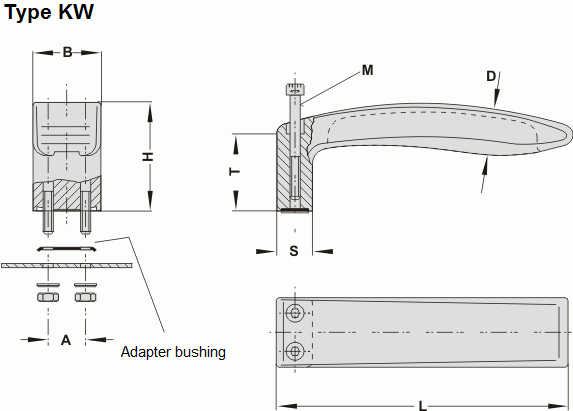

A	L	Order-No.	M	T	B	H	D	S
A17	L128	Order-No. KW-30.017.84 3D+CAD	MM5 x 45	T33	B30	H48	D20	S18
A22	L154	Order-No. KW-36.020.84 3D+CAD	MM6 x 55	T40	B36	H58	D24	S22
