Handles K4

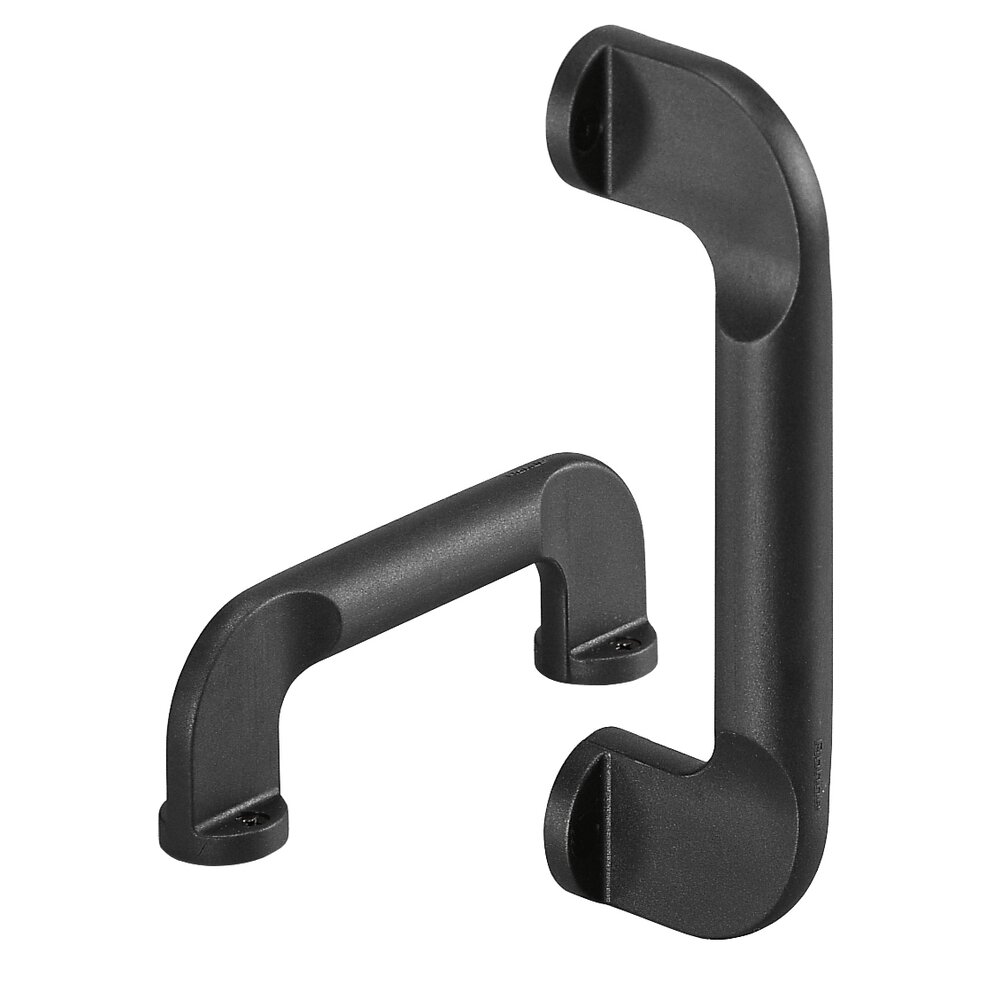

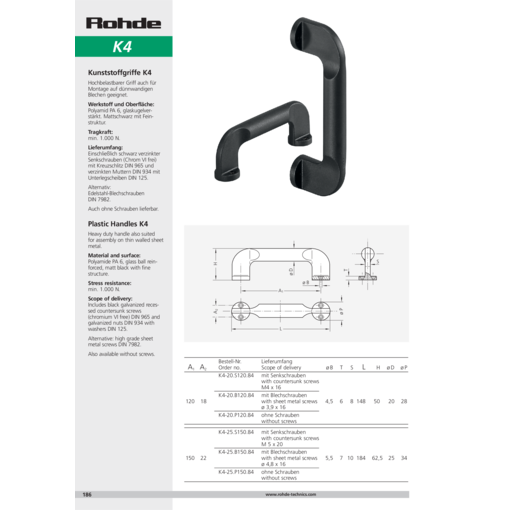

Heavy duty handle also suited for assembly on thin walled sheet metal.

Material and surface:
Polyamide PA6, glass ball reinforced, matt black with fine structure.

Scope of delivery:
Includes black galvanized recessed countersunk screws (chromium VI free) DIN 965 and galvanized nuts DIN 934 with washers DIN 125.

Alternative: high grade sheet metal screws DIN 7982. Also available without screws.

Stress resistance:
min. 1000 N.

Version K4-20

K4-20
Unit of measure
		Scope of delivery
A₁	A₂	with sheet metal screws ø3,9x16 Order-No.	with countersunk screws M4x16 Order-No.	without screws Order-No.	øB	T	S	L	H	øD	øP
A₁120	A₂18	with sheet metal screws ø3,9x16 Order-No. K4-20.B120.84 3D+CAD	with countersunk screws M4x16 Order-No. K4-20.S120.84 3D+CAD	without screws Order-No. K4-20.P120.84 3D+CAD	øB4,5	T6	S8	L148	H50	øD20	øP28

Version K4-25

K4-25
Unit of measure
		Scope of delivery
A₁	A₂	with sheet metal screws ø4,8x16 Order-No.	with countersunk screws M5x20 Order-No.	without screws Order-No.	øB	T	S	L	H	øD	øP
A₁150	A₂22	with sheet metal screws ø4,8x16 Order-No. K4-25.B150.84 3D+CAD	with countersunk screws M5x20 Order-No. K4-25.S150.84 3D+CAD	without screws Order-No. K4-25.P150.84 3D+CAD	øB5,5	T7	S10	L184	H62,5	øD25	øP34
