Handles PB

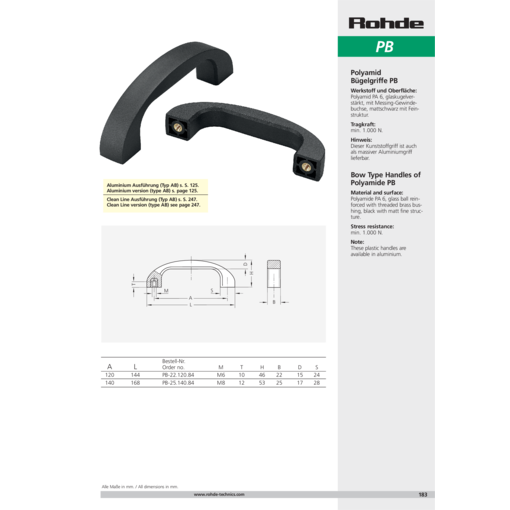

pb.pdf

Handles PB

Material and surface:

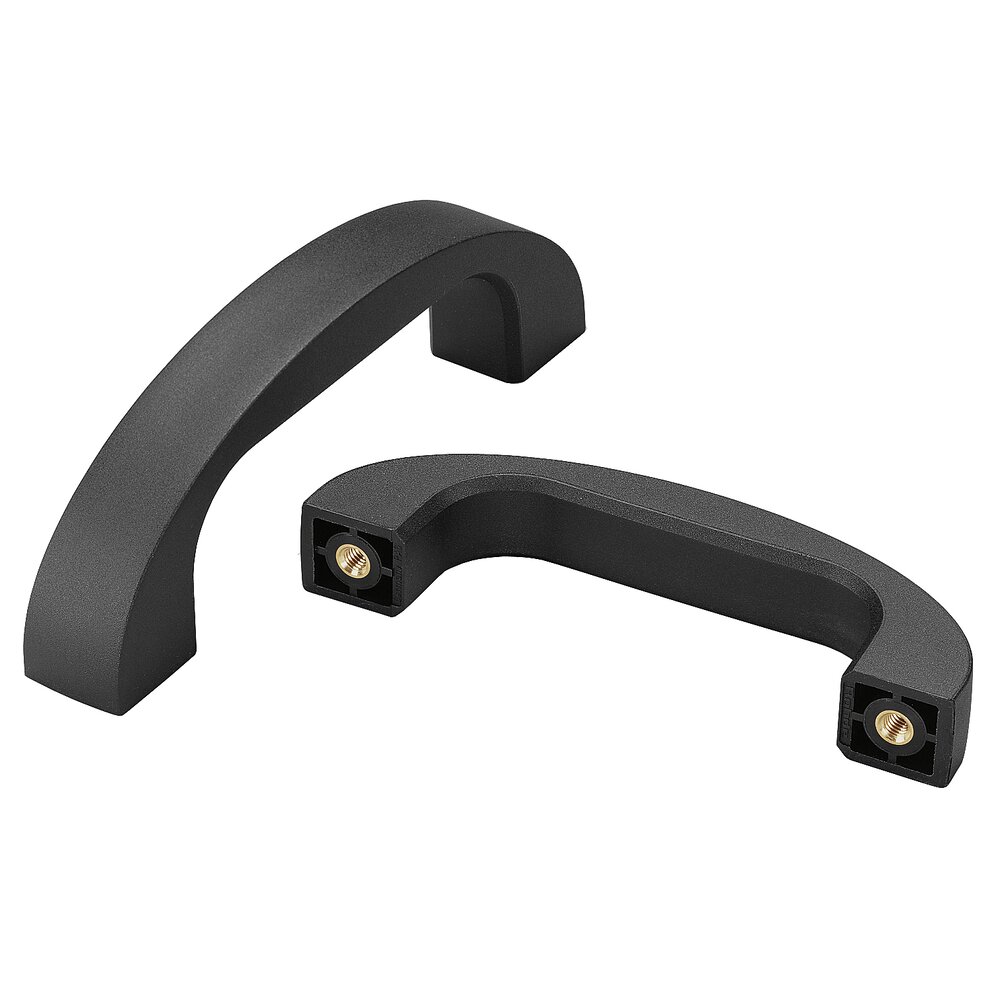

Polyamide PA6, glass ball reinforced with threaded brass bushing, black with matt fine structure.

Note:
These plastic handles are available in aluminium.

Stress resistance:
min. 1000 N.

Technical drawing showing side and front views of a plastic bow-type handle PB with cross-section revealing internal threaded brass bushing

Technical data
Unit of measure

A	L	Order-No.	M	T	H	B	D	S
A120	L144	Order-No. PB-22.120.84 3D+CAD	MM6	T10	H46	B22	D15	S24
A140	L168	Order-No. PB-25.140.84 3D+CAD	MM8	T12	H53	B25	D17	S28
