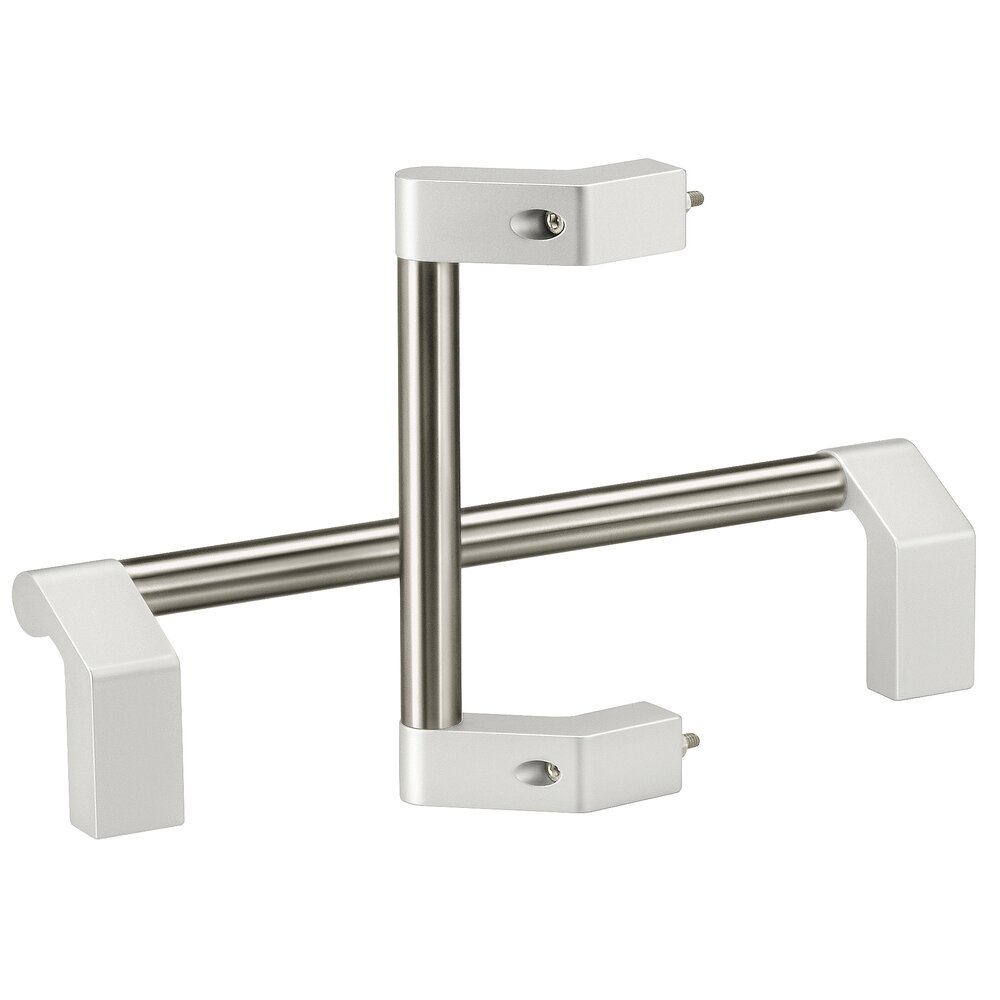

Handles TL.HH

product details

Material and surface:
Handle shanks of extruded aluminium AlMgSi 0.5; natural colour anodized with dull bright finish. Tube and tube connecting screws of stainless steel, clamping sleeves of stainless steel; tube fine ground

Scope of supply:
Version TL.HH-25 for mounting incl. cheese head screws with hexagon sockets M8x65 DIN 912, nuts and washers of stainless steel; other version without fixing material.

Note:
For other versions see also type series HH.

Stress resistance:
min. 1000 N.

show more show less

Version TL.HH-25

Unit of measure

A	L	Order-No.

A	L	Order-No.
A 200	L 240	Order-No. TL.HH-25.200.37 3D+CAD
A 300	L 340	Order-No. TL.HH-25.300.37 3D+CAD
A 400	L 440	Order-No. TL.HH-25.400.37 3D+CAD
A 500	L 540	Order-No. TL.HH-25.500.37 3D+CAD
A 600	L 640	Order-No. TL.HH-25.600.37 3D+CAD

Version TL.HH-30

Unit of measure

A	L	Order-No.

A	L	Order-No.
A 200	L 240	Order-No. TL.HH-30.200.37 3D+CAD
A 300	L 340	Order-No. TL.HH-30.300.37 3D+CAD
A 400	L 440	Order-No. TL.HH-30.400.37 3D+CAD
A 500	L 540	Order-No. TL.HH-30.500.37 3D+CAD
A 600	L 640	Order-No. TL.HH-30.600.37 3D+CAD
