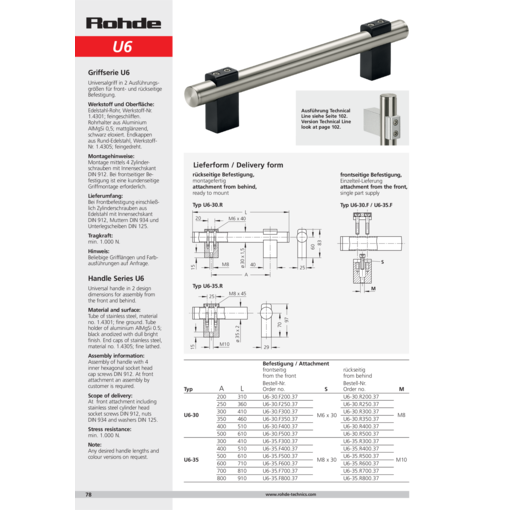

Handles U6

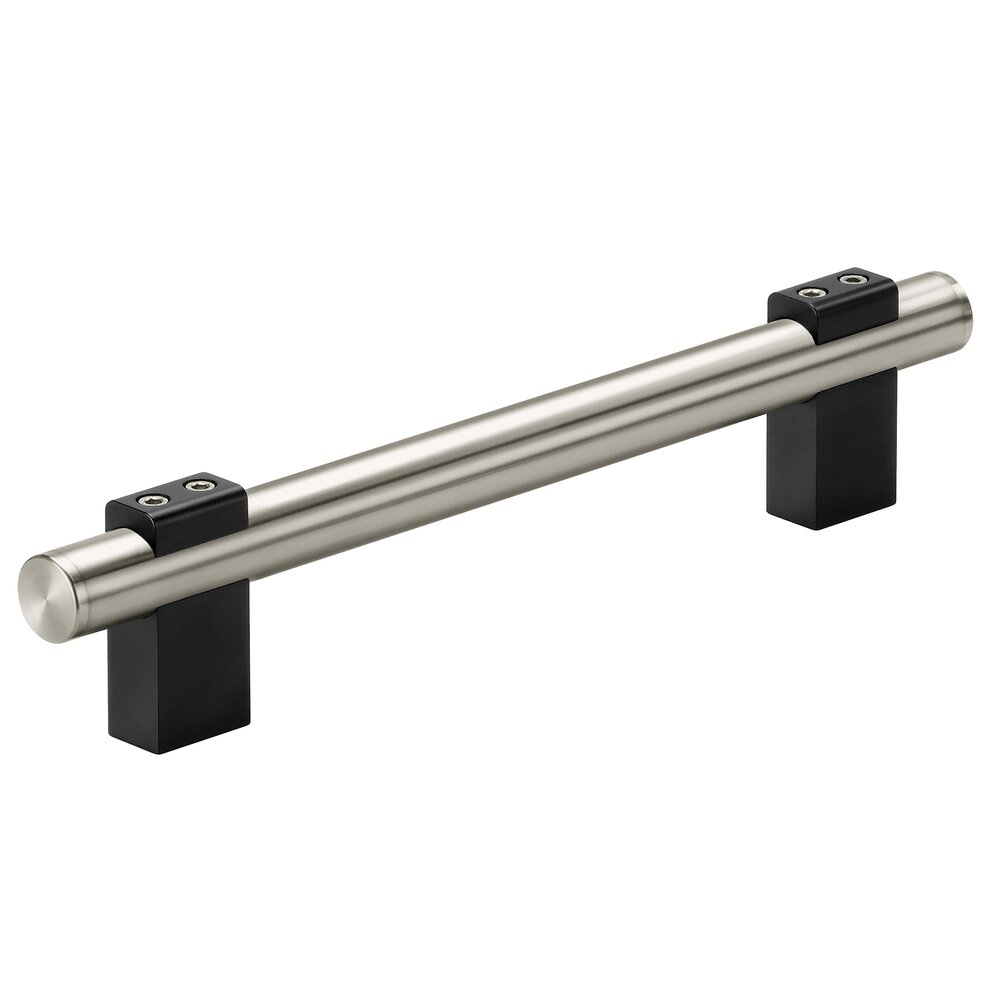

Universal handle in 2 design dimensions for assembly from the front and behind.

Material and surface:
Tube of stainless steel, material no. 1.4301; fine ground. Tube holder of aluminium AlMgSi 0.5; black anodized with dull bright finish. End caps of stainless steel, material no. 1.4305; fine lathed.

Assembly information:
Assembly of handle with 4 inner hexagonal socket head cap screws DIN 912. At front attach- ment an assembly by customer is required.

Scope of supply:
At front attachment including stainless steel cylinder head socket screws DIN 912, nuts DIN 934 and washers DIN 125.

Note:
Any desired handle lengths and colour versions on request.

Stress resistance:
min. 1000 N.

show more show less

Version U6-30

Technical line drawing of TL.U6 handle showing stainless steel tube, aluminium profile holder, sectional view of fastening with hexagonal socket screws, nuts, and washers on a black background
Technical line drawing of TL.U6 stainless steel handle showing front and sectional views with screws and assembly details.
Technical line drawing and cross-section of TL.U6 stainless steel handle with aluminum profile tube holder and attachment details.
Technical line drawing of TL.U6 handle showing front and sectional views with assembly components and fastening screws.
Unit of measure
Fitting type
A L attachment from the front
Order-No. 		attachment from behind
Order-No. 		S M
A L attachment from the front
Order-No. 		attachment from behind
Order-No. 		S M
A 200 L 310 attachment from the front
Order-No. U6-30.F200.37 3D+CAD 		attachment from behind
Order-No. U6-30.R200.37 3D+CAD 		S M6 x 30 M M8
A 250 L 360 attachment from the front
Order-No. U6-30.F250.37 3D+CAD 		attachment from behind
Order-No. U6-30.R250.37 3D+CAD 		S M6 x 30 M M8
A 300 L 410 attachment from the front
Order-No. U6-30.F300.37 3D+CAD 		attachment from behind
Order-No. U6-30.R300.37 3D+CAD 		S M6 x 30 M M8
A 350 L 460 attachment from the front
Order-No. U6-30.F350.37 3D+CAD 		attachment from behind
Order-No. U6-30.R350.37 3D+CAD 		S M6 x 30 M M8
A 400 L 510 attachment from the front
Order-No. U6-30.F400.37 3D+CAD 		attachment from behind
Order-No. U6-30.R400.37 3D+CAD 		S M6 x 30 M M8
A 500 L 610 attachment from the front
Order-No. U6-30.F500.37 3D+CAD 		attachment from behind
Order-No. U6-30.R500.37 3D+CAD 		S M6 x 30 M M8

Version U6-35

Unit of measure
Fitting type
A L attachment from the front
Order-No. 		attachment from behind
Order-No. 		S M
A L attachment from the front
Order-No. 		attachment from behind
Order-No. 		S M
A 300 L 410 attachment from the front
Order-No. U6-35.F300.37 3D+CAD 		attachment from behind
Order-No. U6-35.R300.37 3D+CAD 		S M8 x 30 M M10
A 400 L 510 attachment from the front
Order-No. U6-35.F400.37 3D+CAD 		attachment from behind
Order-No. U6-35.R400.37 3D+CAD 		S M8 x 30 M M10
A 500 L 610 attachment from the front
Order-No. U6-35.F500.37 3D+CAD 		attachment from behind
Order-No. U6-35.R500.37 3D+CAD 		S M8 x 30 M M10
A 600 L 710 attachment from the front
Order-No. U6-35.F600.37 3D+CAD 		attachment from behind
Order-No. U6-35.R600.37 3D+CAD 		S M8 x 30 M M10
A 700 L 810 attachment from the front
Order-No. U6-35.F700.37 3D+CAD 		attachment from behind
Order-No. U6-35.R700.37 3D+CAD 		S M8 x 30 M M10
A 800 L 910 attachment from the front
Order-No. U6-35.F800.37 3D+CAD 		attachment from behind
Order-No. U6-35.R800.37 3D+CAD 		S M8 x 30 M M10
