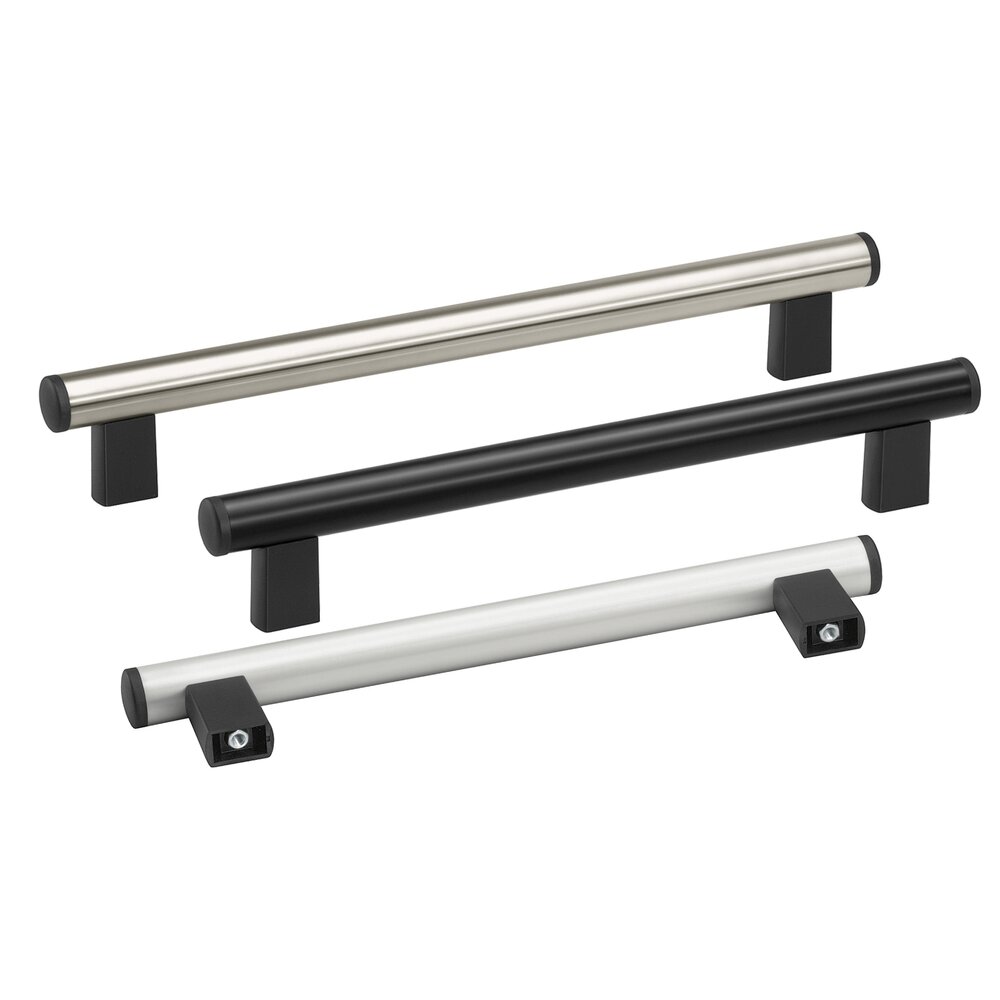

Handles U1
Material and surface:
Tubes of ø30x1.5 mm aluminium AlMgSi 0.5; fine ground, natural coloured anodized or black powdercoated, with fine structure. Alternativ tube made of stainless steel, material no. 1.4031; fine ground. Tube holders and tube caps made of polyamide PA6, glass bead reinforced, black, half-matt with fine structure. Tube threaded insert made of aluminium, screw-down insert made of steel, galvanized.
Technical features:
Screwed connection from the grip holder to the tube with nondetachable blind rivet nuts to prevent it being pulled off.
Note:
Handle lengths and screw down spacers available as required on request.
Stress resistance:
min. 800 N.
|
Unit of measure
|
||||
|---|---|---|---|---|
| Type | ||||
| A | L |
Anodizing version natural-colored
Order-No. |
Polished stainless steel
Order-No. |
powder coated black
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Polished stainless steel
Order-No. |
powder coated black
Order-No. |
|---|---|---|---|---|
| A 200 | L 288 |
Anodizing version natural-colored
Order-No. U1-30.200.01 3D+CAD |
Polished stainless steel
Order-No. U1-30.200.37 3D+CAD |
powder coated black
Order-No. U1-30.200.54 3D+CAD |
| A 250 | L 338 |
Anodizing version natural-colored
Order-No. U1-30.250.01 3D+CAD |
Polished stainless steel
Order-No. U1-30.250.37 3D+CAD |
powder coated black
Order-No. U1-30.250.54 3D+CAD |
| A 300 | L 388 |
Anodizing version natural-colored
Order-No. U1-30.300.01 3D+CAD |
Polished stainless steel
Order-No. U1-30.300.37 3D+CAD |
powder coated black
Order-No. U1-30.300.54 3D+CAD |
| A 350 | L 438 |
Anodizing version natural-colored
Order-No. U1-30.350.01 3D+CAD |
Polished stainless steel
Order-No. U1-30.350.37 3D+CAD |
powder coated black
Order-No. U1-30.350.54 3D+CAD |
| A 400 | L 488 |
Anodizing version natural-colored
Order-No. U1-30.400.01 3D+CAD |
Polished stainless steel
Order-No. U1-30.400.37 3D+CAD |
powder coated black
Order-No. U1-30.400.54 3D+CAD |
| A 500 | L 588 |
Anodizing version natural-colored
Order-No. U1-30.500.01 3D+CAD |
Polished stainless steel
Order-No. U1-30.500.37 3D+CAD |
powder coated black
Order-No. U1-30.500.54 3D+CAD |
