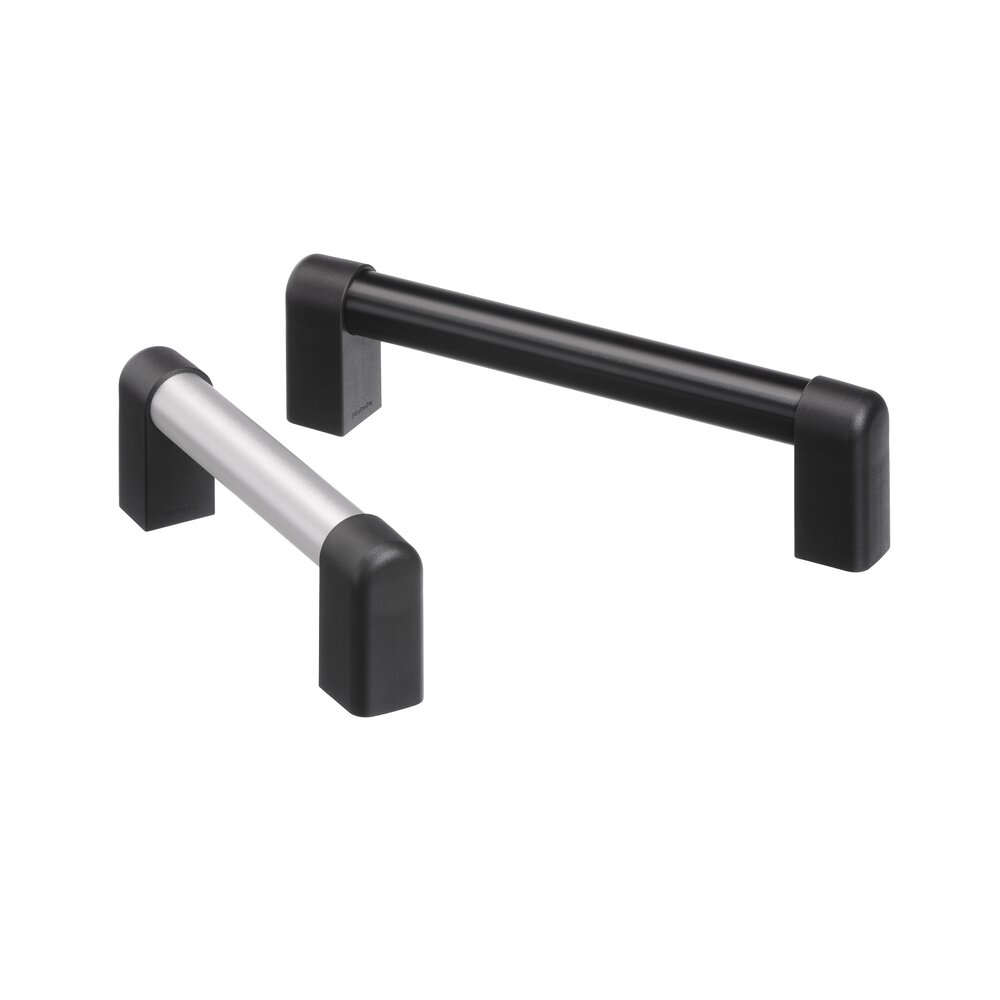

Handles U10
Material and surface:
Handle shanks made of high duty polyamide PA 6, glass ball reinforced, black, similar to RAL 9005, semi-matte, with fine structure. Connecting tubes made of aluminium AIMgSi 0.5.
Version A:
Connecting tube made of aluminum AIMgSi 0.5 unpolished and anodized in natural color.
Version B:
Connecting tube made of aluminum AIMgSi 0.5 ground and anodized in natural color.
Version C:
Connecting tube made of aluminum AIMgSi 0.5 ground and anodized in black color.
Stress resistance:
Min. 1000 N.
Note:
Self-tapping fastening screws are included in delivery. The maximum tightening torque is 7 Nm.
Other color options or handle lengths are available upon request.
show more show less
|
Unit of measure
|
||||
|---|---|---|---|---|

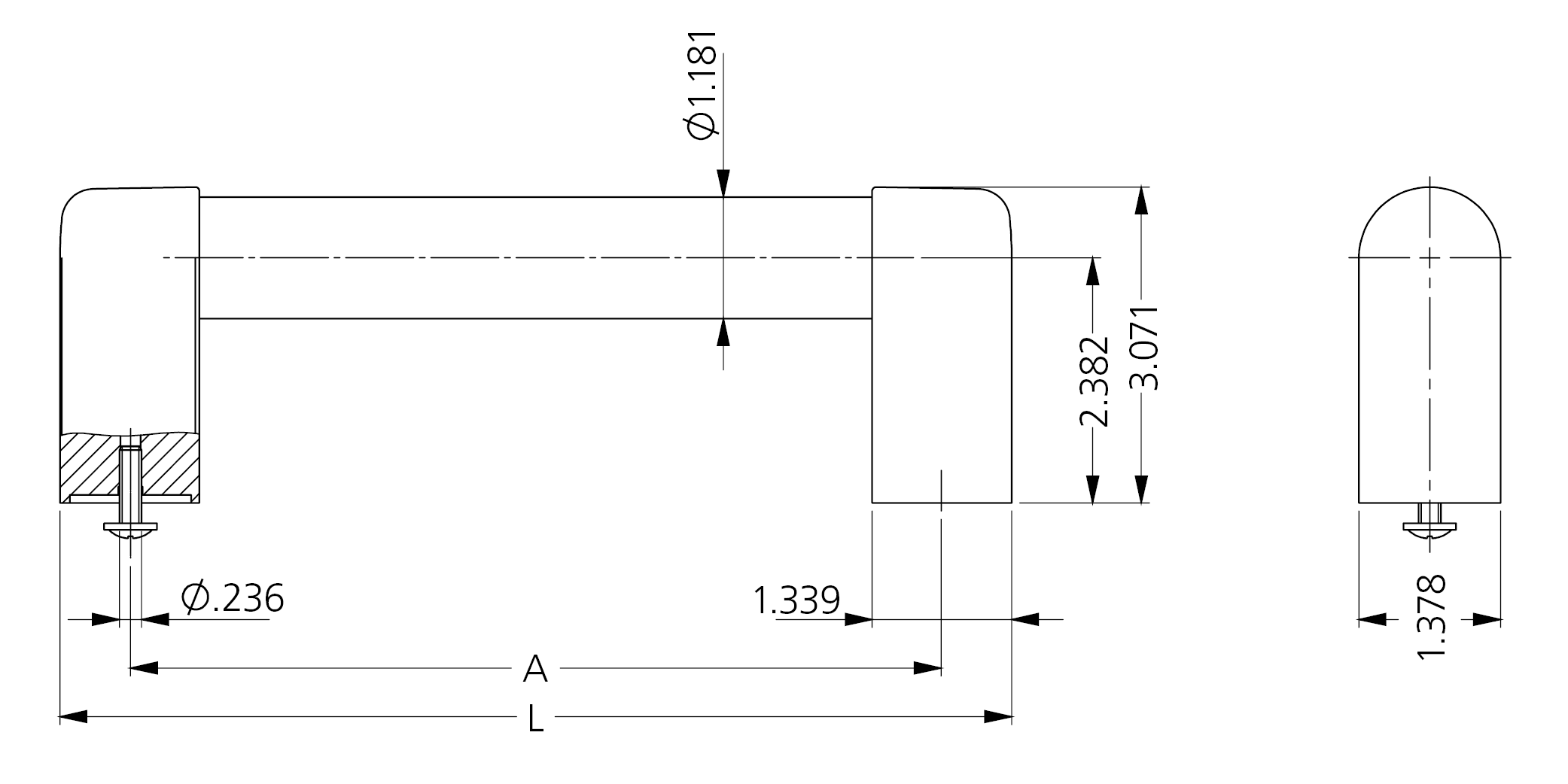

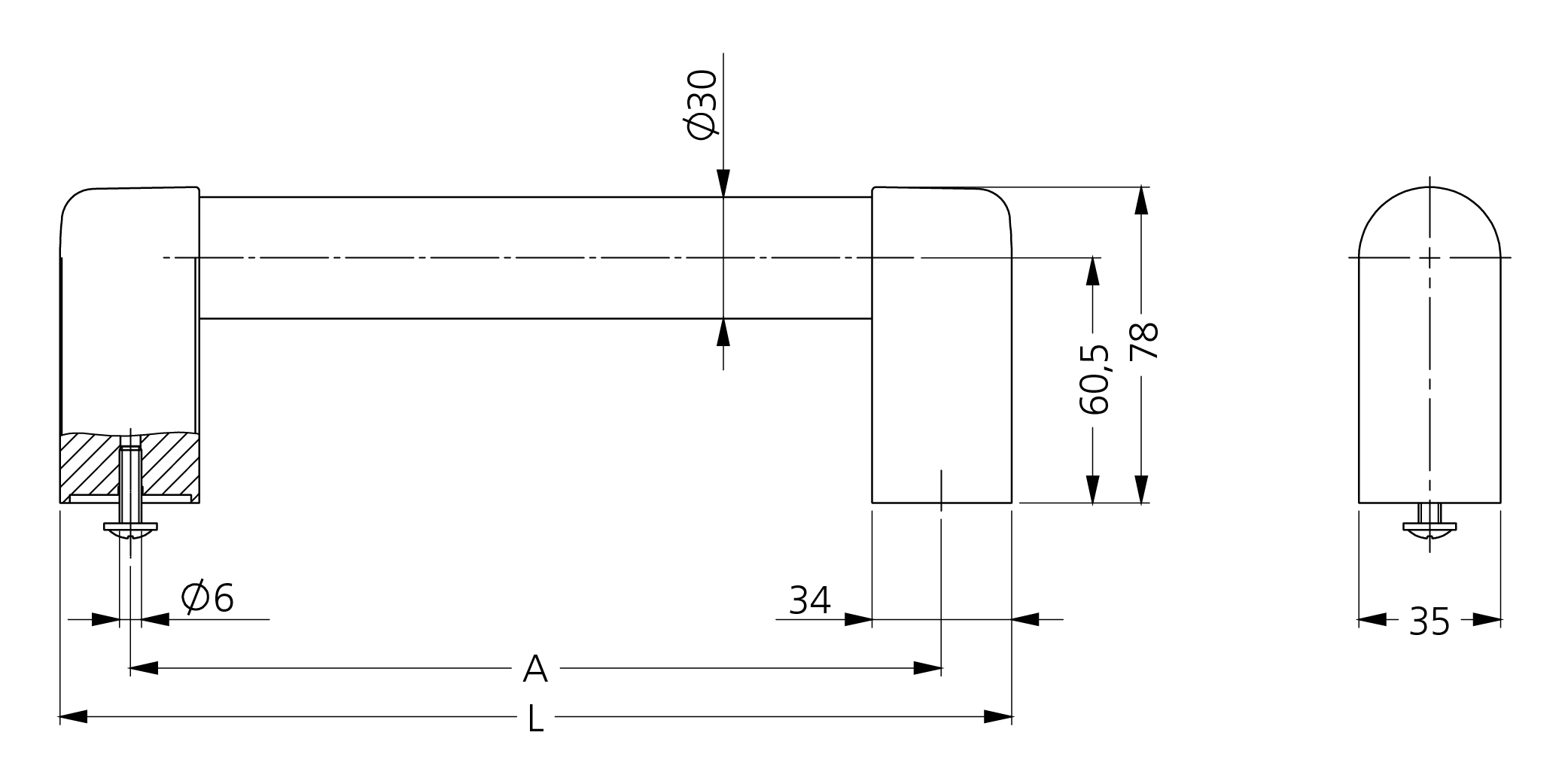

| Description | ||||
| A | L |
Version A
Order-No. |
Version B
Order-No. |
Version C
Order-No. |
| A | L |
Version A
Order-No. |
Version B
Order-No. |
Version C
Order-No. |
|---|---|---|---|---|
| A 250 | L 280 |
Version A
Order-No. U10-30.250.21 3D+CAD |
Version B
Order-No. U10-30.250.01 3D+CAD |
Version C
Order-No. U10-30.250.04 3D+CAD |
| A 300 | L 330 |
Version A
Order-No. U10-30.300.21 3D+CAD |
Version B
Order-No. U10-30.300.01 3D+CAD |
Version C
Order-No. U10-30.300.04 3D+CAD |
| A 350 | L 380 |
Version A
Order-No. U10-30.350.21 3D+CAD |
Version B
Order-No. U10-30.350.01 3D+CAD |
Version C
Order-No. U10-30.350.04 3D+CAD |
| A 400 | L 430 |
Version A
Order-No. U10-30.400.21 3D+CAD |
Version B
Order-No. U10-30.400.01 3D+CAD |
Version C
Order-No. U10-30.400.04 3D+CAD |
| A 500 | L 530 |
Version A
Order-No. U10-30.500.21 3D+CAD |
Version B
Order-No. U10-30.500.01 3D+CAD |
Version C
Order-No. U10-30.500.04 3D+CAD |
