Handles ET

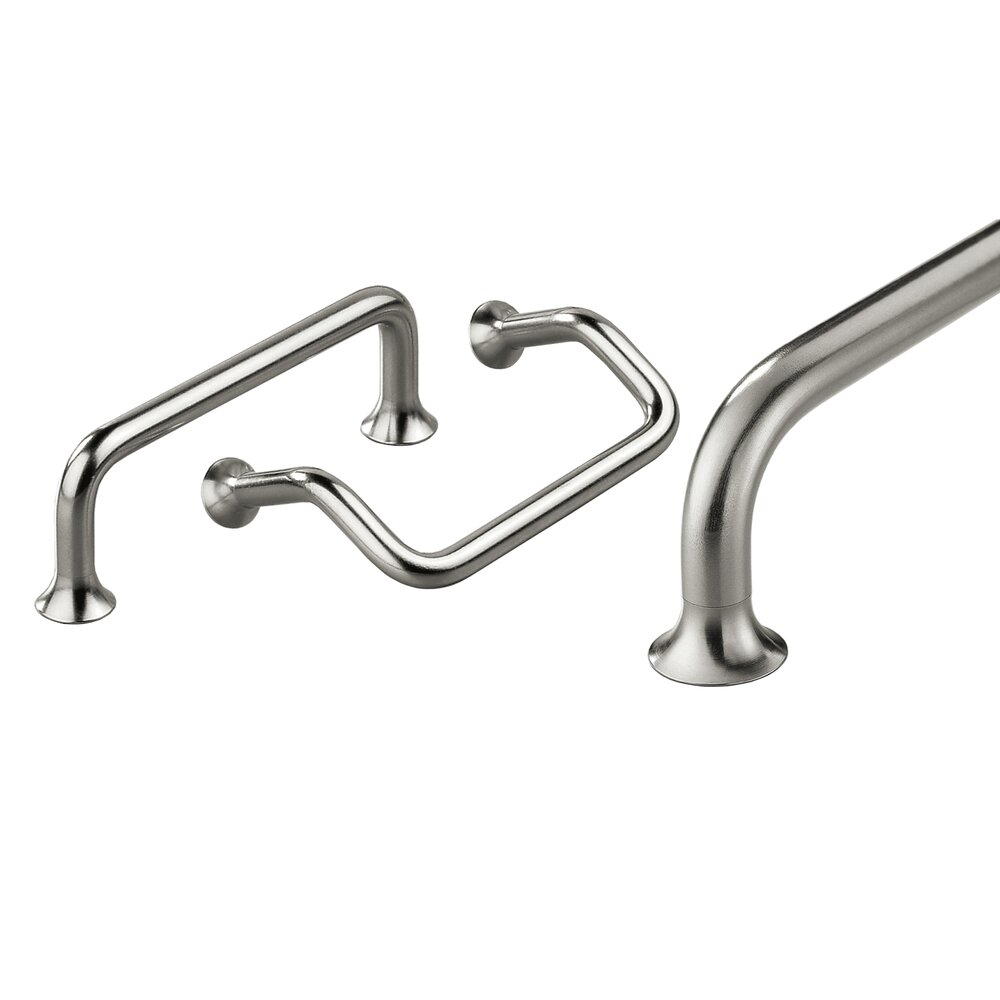

The trumped style form of the handle feet makes them easy to clean thoroughly. Therefore these types of handles are particularly sutiable for hygiene areas.
Material:
Single components are made of round bar stainless steel, material no. 1.4305.
Version A:
Surface vibration ground with a half-matt finish.
Version B:
Surface vibration ground, blasted and electropolished with a half-matt finish.
Extent of supply:
Including stainless steel hexagon head screws DIN 933 and stainless steel washers DIN 925, material no. 1.4301

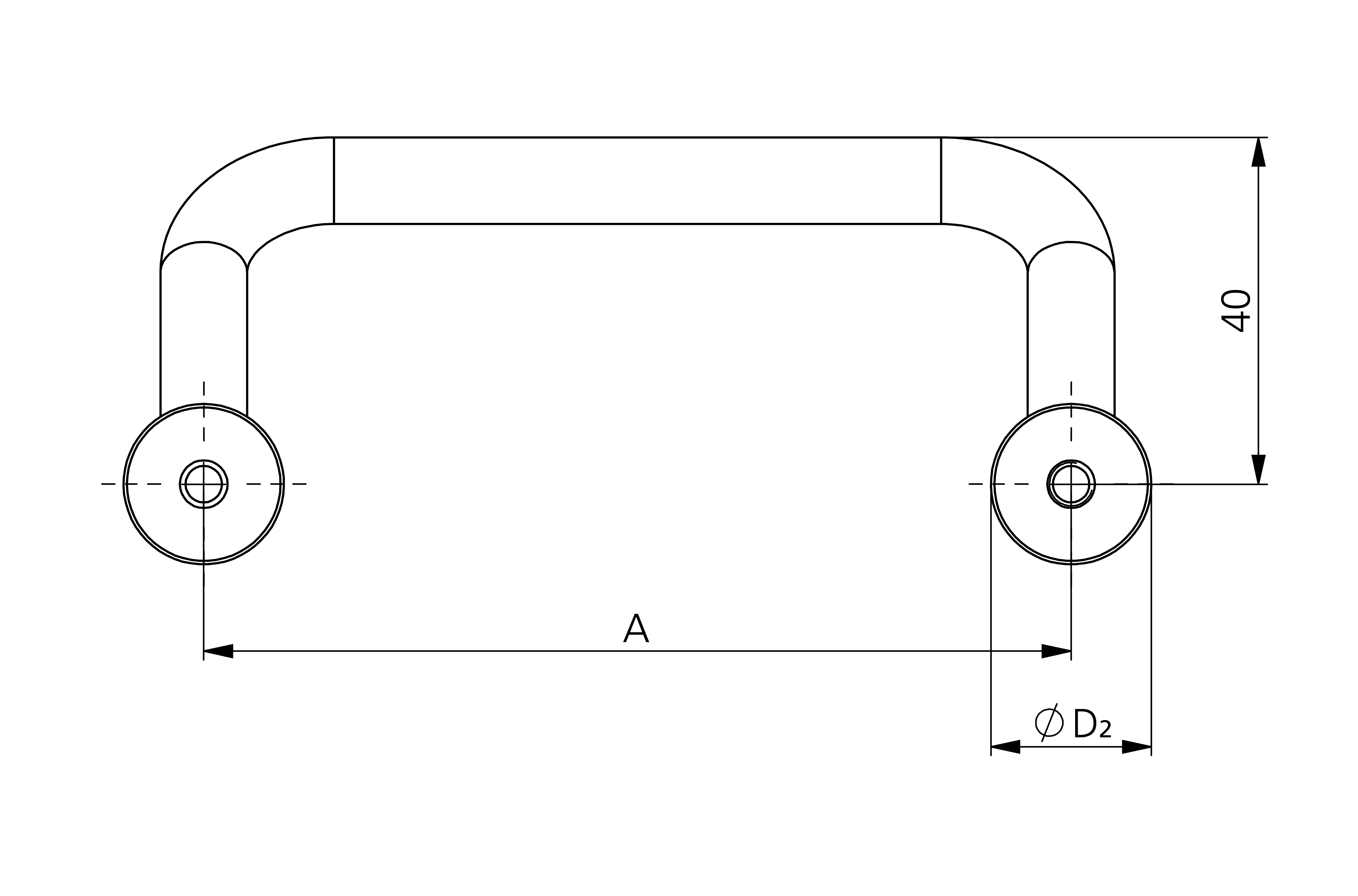

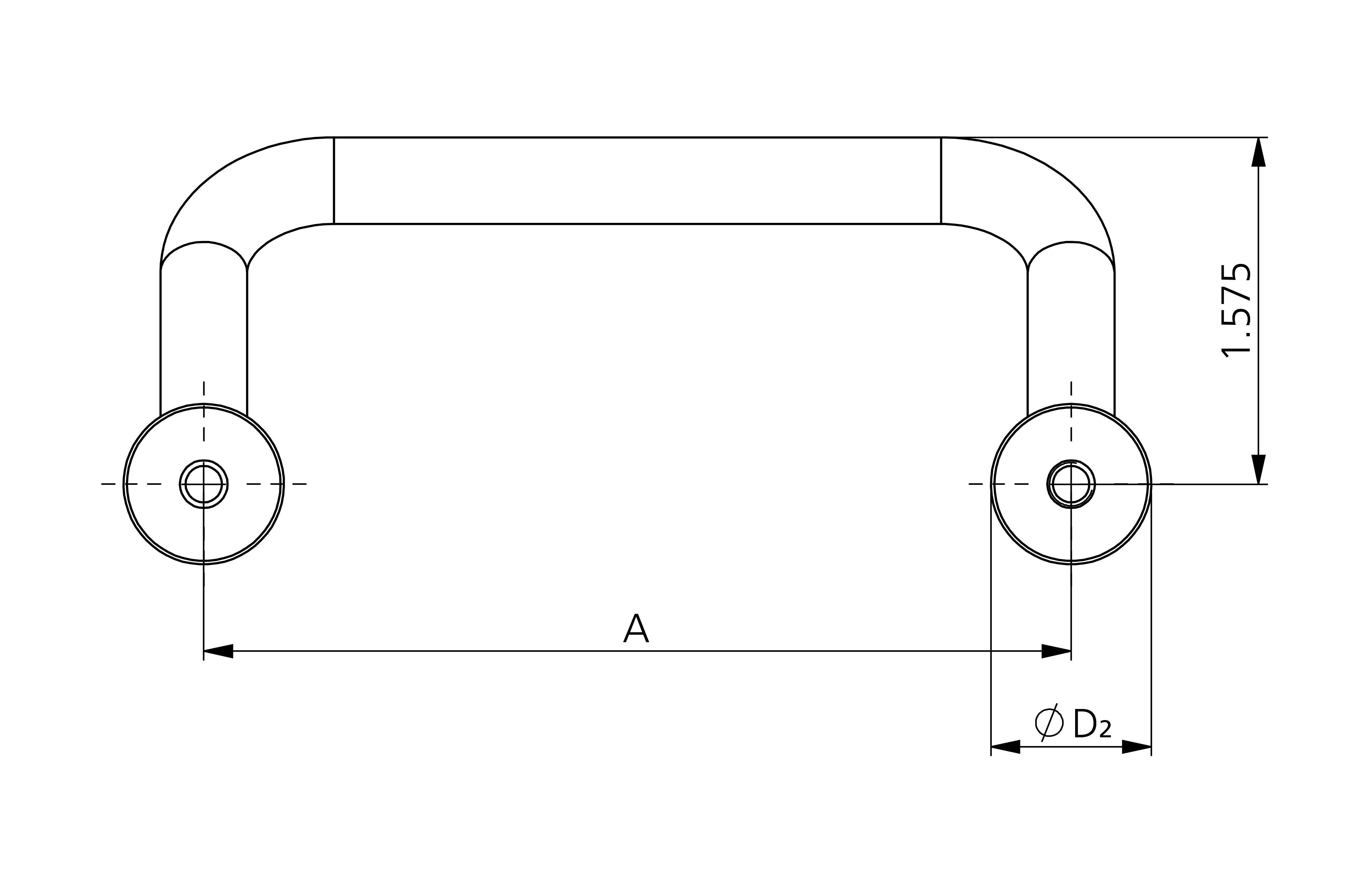

Handle types ET-10.E and ET-10.A
screws M5x10.
Handle type ET-15.E
screws M6x12.
Note:
Other dimensions available on request.
Stress resistance:
min. 1000 N.
Version ET-10, A
|
Unit of measure
|
|||||||
|---|---|---|---|---|---|---|---|
| Type | |||||||
| A |
Stainless steel vibration ground
Order-No. |
Stainless steel blasted and electropolished
Order-No. |
M | T | D₁ | D₂ | H |
| A |
Stainless steel vibration ground
Order-No. |
Stainless steel blasted and electropolished
Order-No. |
M | T | D₁ | D₂ | H |
|---|---|---|---|---|---|---|---|
| A 100 |
Stainless steel vibration ground
Order-No. ET-10.A100.31 3D+CAD |
Stainless steel blasted and electropolished
Order-No. ET-10.A100.36 3D+CAD |
M 5 | T 10 | D₁ 10 | D₂ 20 | H 75 |
| A 120 |
Stainless steel vibration ground
Order-No. ET-10.A120.31 3D+CAD |
Stainless steel blasted and electropolished
Order-No. ET-10.A120.36 3D+CAD |
M 5 | T 10 | D₁ 10 | D₂ 20 | H 75 |
Version ET-10, E
|
Unit of measure
|
|||||||
|---|---|---|---|---|---|---|---|
| Type | |||||||
| A |
Stainless steel vibration ground
Order-No. |
Stainless steel blasted and electropolished
Order-No. |
M | T | D₁ | D₂ | H |
| A |
Stainless steel vibration ground
Order-No. |
Stainless steel blasted and electropolished
Order-No. |
M | T | D₁ | D₂ | H |
|---|---|---|---|---|---|---|---|
| A 100 |
Stainless steel vibration ground
Order-No. ET-10.E100.31 3D+CAD |
Stainless steel blasted and electropolished
Order-No. ET-10.E100.36 3D+CAD |
M 5 | T 10 | D₁ 10 | D₂ 20 | H 45 |
| A 120 |
Stainless steel vibration ground
Order-No. ET-10.E120.31 3D+CAD |
Stainless steel blasted and electropolished
Order-No. ET-10.E120.36 3D+CAD |
M 5 | T 10 | D₁ 10 | D₂ 20 | H 45 |
Version ET-15, E
|
Unit of measure
|
|||||||
|---|---|---|---|---|---|---|---|
| Type | |||||||
| A |
Stainless steel vibration ground
Order-No. |
Stainless steel blasted and electropolished
Order-No. |
M | T | D₁ | D₂ | H |
| A |
Stainless steel vibration ground
Order-No. |
Stainless steel blasted and electropolished
Order-No. |
M | T | D₁ | D₂ | H |
|---|---|---|---|---|---|---|---|
| A 120 |
Stainless steel vibration ground
Order-No. ET-15.E120.31 3D+CAD |
Stainless steel blasted and electropolished
Order-No. ET-15.E120.36 3D+CAD |
M 6 | T 12 | D₁ 15 | D₂ 30 | H 60 |
| A 140 |
Stainless steel vibration ground
Order-No. ET-15.E140.31 3D+CAD |
Stainless steel blasted and electropolished
Order-No. ET-15.E140.36 3D+CAD |
M 6 | T 12 | D₁ 15 | D₂ 30 | H 60 |
| A 200 |
Stainless steel vibration ground
Order-No. ET-15.E200.31 3D+CAD |
Stainless steel blasted and electropolished
Order-No. ET-15.E200.36 3D+CAD |
M 6 | T 12 | D₁ 15 | D₂ 30 | H 60 |
