Handles EU

Material and surface:
Solid handle shank made from precision cast G-X7 CrNiMoNb 18 10; material no. G 4581. Connection tube and fixing material made of X5 CrNi 18 9; material no. 1.4301. Handle shanks blasted and electropolished with a half-matt finish.

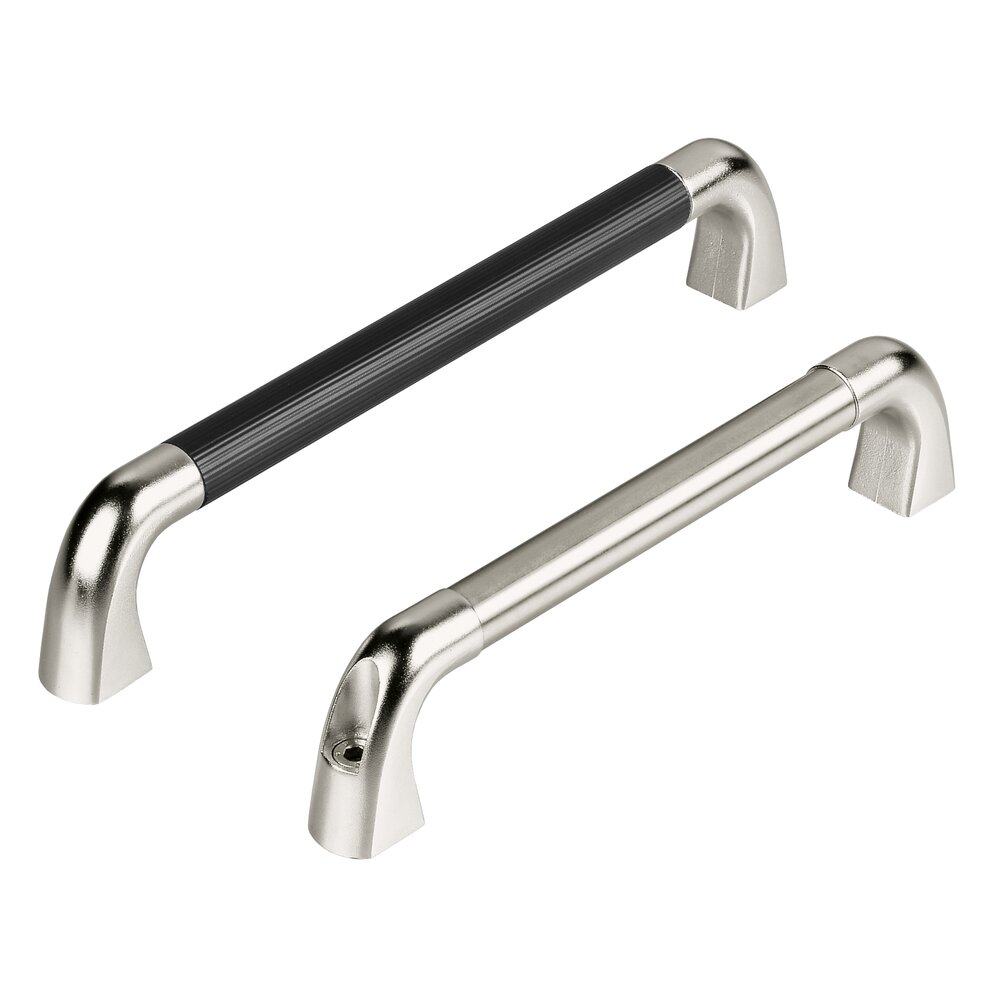

Connection tube precision ground in design A or with a grooved plastic coating in design B.

Scope of delivery:
EU-20.F incl. DIN 912 socket head cap screws M8x35, DIN 934 nuts and DIN 125 washers.
EU-20.R incl. DIN 933 hexagon head cap screws and DIN 125 washers.

Note:
Any desired handle lengths on request.

Stress resistance:
min. 1000 N.

Version EU-20.F

EU-20.F
Unit of measure
		Type
A	L	Polished stainless steel Order-No.	Stainless steel with a grooved plastic coating Order-No.
A200	L226	Polished stainless steel Order-No. EU-20.F200.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.F200.B 3D+CAD
A250	L276	Polished stainless steel Order-No. EU-20.F250.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.F250.B 3D+CAD
A300	L326	Polished stainless steel Order-No. EU-20.F300.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.F300.B 3D+CAD
A350	L376	Polished stainless steel Order-No. EU-20.F350.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.F350.B 3D+CAD
A400	L426	Polished stainless steel Order-No. EU-20.F400.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.F400.B 3D+CAD

Version EU-20.R

EU-20.R
Unit of measure
		Type
A	L	Polished stainless steel Order-No.	Stainless steel with a grooved plastic coating Order-No.
A200	L226	Polished stainless steel Order-No. EU-20.R200.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.R200.B 3D+CAD
A250	L276	Polished stainless steel Order-No. EU-20.R250.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.R250.B 3D+CAD
A300	L326	Polished stainless steel Order-No. EU-20.R300.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.R300.B 3D+CAD
A350	L376	Polished stainless steel Order-No. EU-20.R350.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.R350.B 3D+CAD
A400	L426	Polished stainless steel Order-No. EU-20.R400.A 3D+CAD	Stainless steel with a grooved plastic coating Order-No. EU-20.R400.B 3D+CAD
