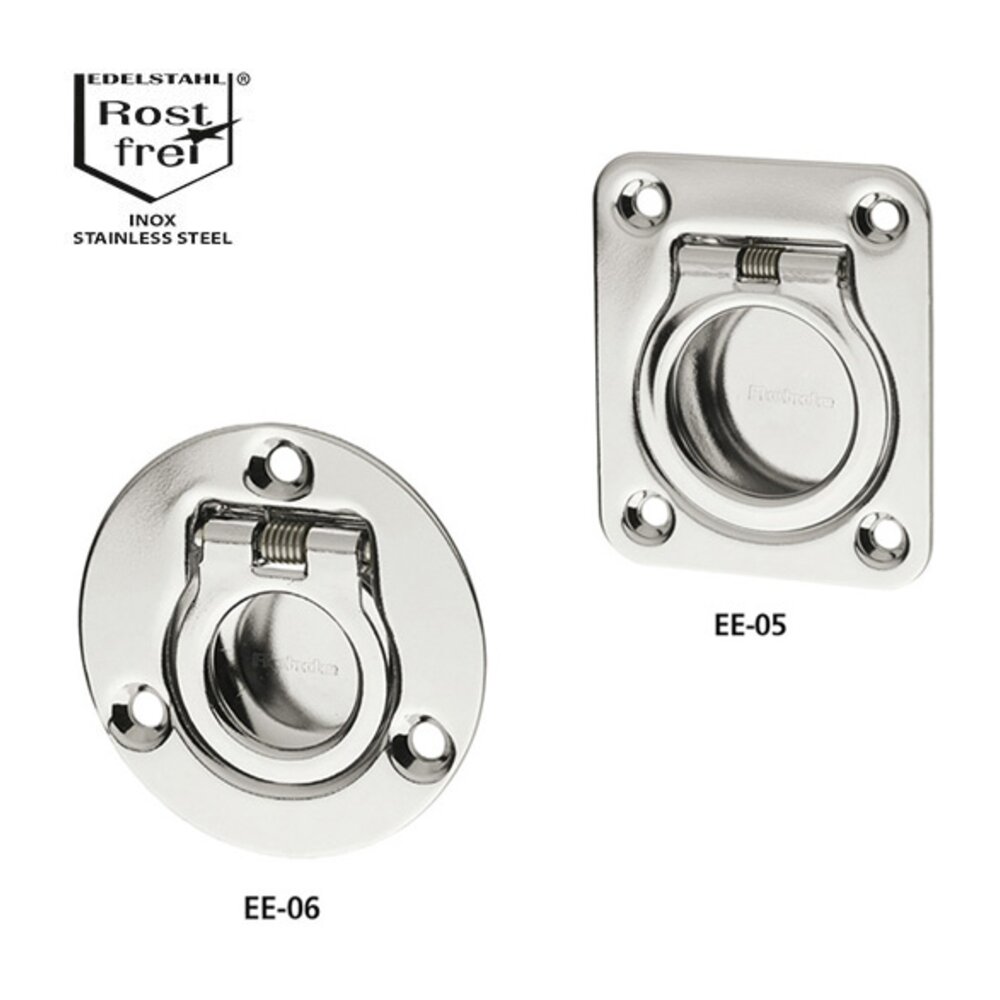

Two collapsible stainless steel handles EE-05 (square with four mounting holes) and EE-06 (round with three mounting holes) with pull-back spring mechanism and high gloss electropolished surface

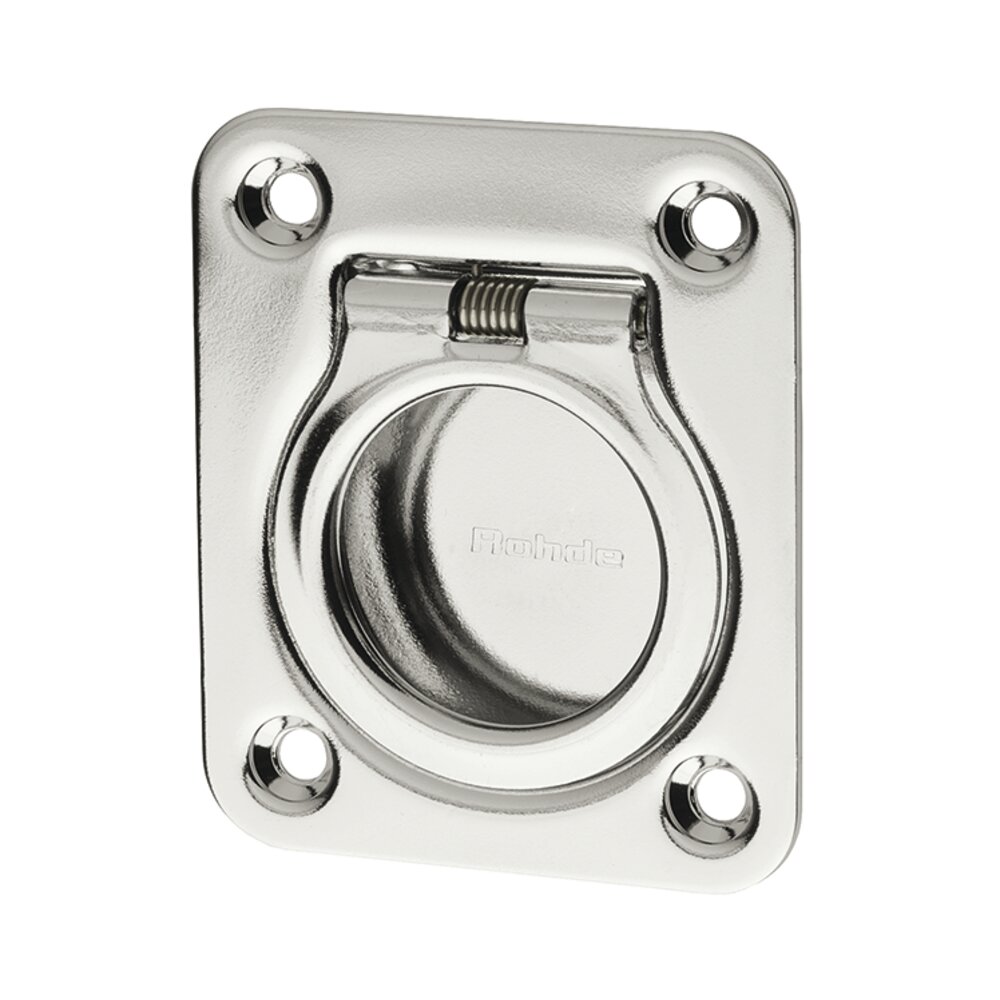

Collapsible stainless steel handle EE-05 with circular grip mounted on a square plate with four mounting holes

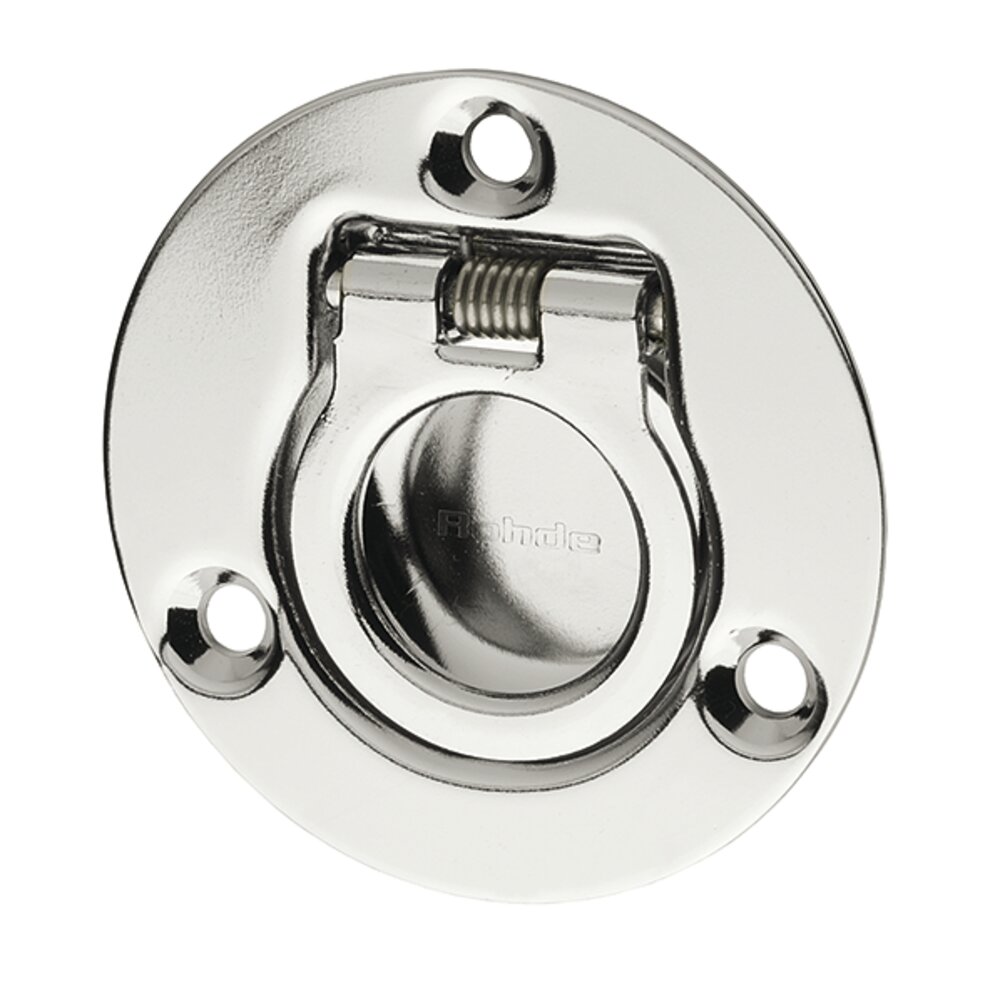

Stainless Steel Handles EE-06

ee-05-06-07.pdf

Handles EE-05, EE-06

Collapsible stainless steel handles with small installation depth.

Material and surface:
Stainless steel high gloss electropolished, material no. 1.4301.

Design features:
With pull-back spring from the working to the resting position.

Stress resistance:
EE-05 min. 200 N
EE-06 min. 200 N

Version EE-05

Technical drawing showing front and side views of EE-05 stainless steel collapsible handle with circular pull and rectangular base plate with four mounting holes.

Technical drawing

Front and side technical line drawing of EE-05 stainless steel collapsible handle with square mounting plate and circular pull-back handle.

Technical drawing

EE-05
Unit of measure

Order-No.
Order-No. EE-05.060.39 3D+CAD

Version EE-06

Technical drawing

Technical drawing

Technical drawing showing the front and side views of a round collapsible stainless steel handle with a ring and three mounting holes.

Technical drawing

EE-06
Unit of measure

Order-No.
Order-No. EE-06.050.39 3D+CAD
