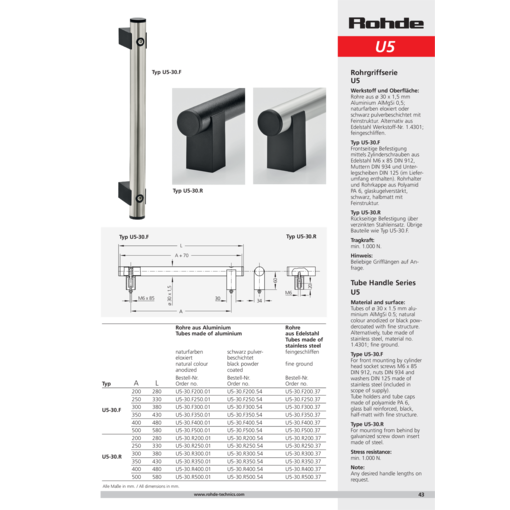

Handles U5

Material and surface:
Tubes of ø30x1.5 mm aluminium AlMgSi 0.5; natural colour anodized or black powdercoated with fine structure. Alternatively, tube made of stainless steel, material no. 1.4301; fine ground.

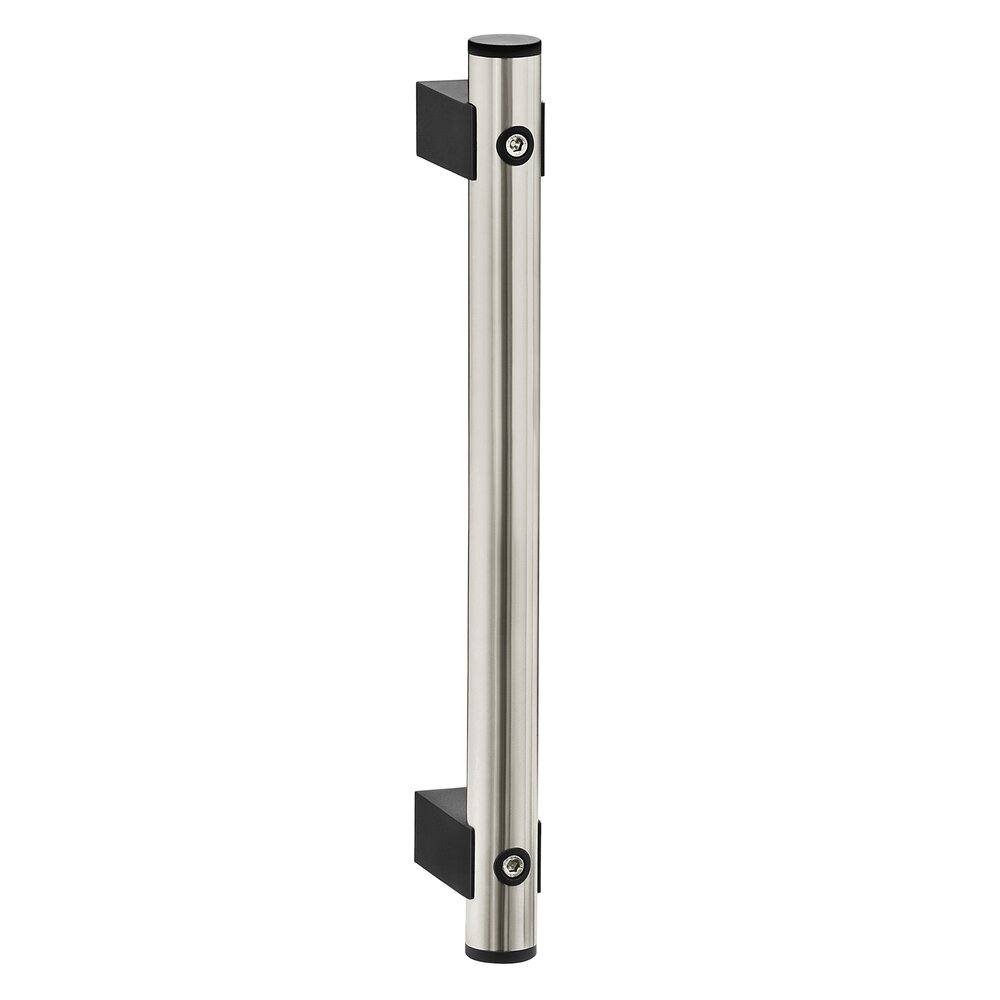

Type U5-30.F

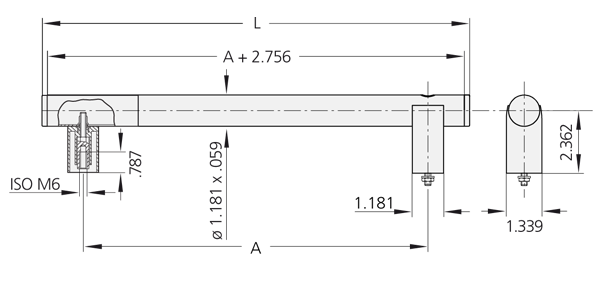

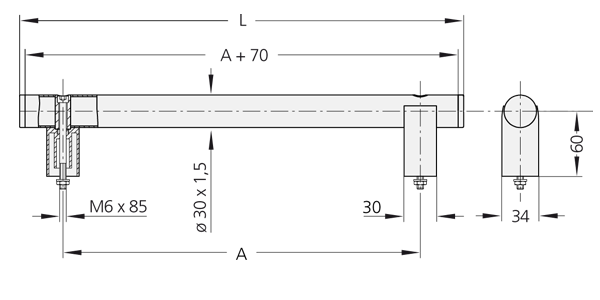

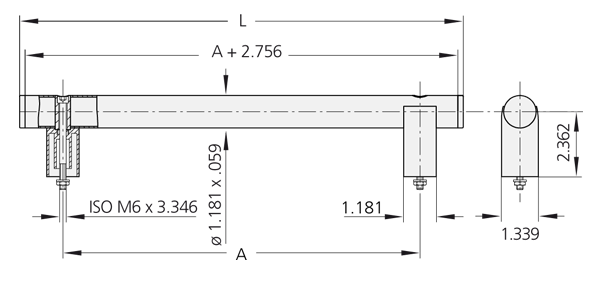

For front mounting by cylinder head socket screws M6x85 DIN 912, nuts DIN 934 and washers DIN 125 made of stainless steel (included in scope of supply). Tube holders and tube caps made of polyamide PA6, glass ball reinforced, black, half-matt with fine structure.

Type U5-30.R

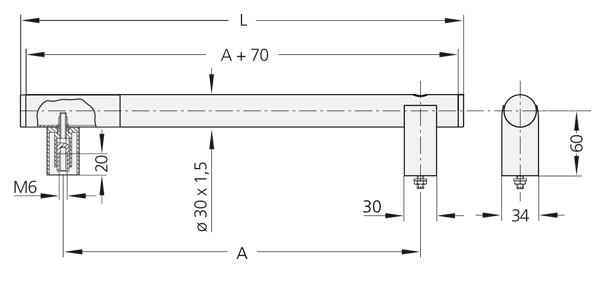

For mounting from behind by galvanized screw down insert made of steel.

Note:
Any desired handle lengths on request.

Stress resistance:
min. 1000 N.

Version F

F
Unit of measure
		Type
A	L	Anodizing version natural-colored Order-No.	Polished stainless steel Order-No.	powder coated black Order-No.
A200	L280	Anodizing version natural-colored Order-No. U5-30.F200.01 3D+CAD	Polished stainless steel Order-No. U5-30.F200.37 3D+CAD	powder coated black Order-No. U5-30.F200.54 3D+CAD
A250	L330	Anodizing version natural-colored Order-No. U5-30.F250.01 3D+CAD	Polished stainless steel Order-No. U5-30.F250.37 3D+CAD	powder coated black Order-No. U5-30.F250.54 3D+CAD
A300	L380	Anodizing version natural-colored Order-No. U5-30.F300.01 3D+CAD	Polished stainless steel Order-No. U5-30.F300.37 3D+CAD	powder coated black Order-No. U5-30.F300.54 3D+CAD
A350	L430	Anodizing version natural-colored Order-No. U5-30.F350.01 3D+CAD	Polished stainless steel Order-No. U5-30.F350.37 3D+CAD	powder coated black Order-No. U5-30.F350.54 3D+CAD
A400	L480	Anodizing version natural-colored Order-No. U5-30.F400.01 3D+CAD	Polished stainless steel Order-No. U5-30.F400.37 3D+CAD	powder coated black Order-No. U5-30.F400.54 3D+CAD
A500	L580	Anodizing version natural-colored Order-No. U5-30.F500.01 3D+CAD	Polished stainless steel Order-No. U5-30.F500.37 3D+CAD	powder coated black Order-No. U5-30.F500.54 3D+CAD

Version R

R
Unit of measure
		Type
A	L	Anodizing version natural-colored Order-No.	Polished stainless steel Order-No.	powder coated black Order-No.
A200	L280	Anodizing version natural-colored Order-No. U5-30.R200.01 3D+CAD	Polished stainless steel Order-No. U5-30.R200.37 3D+CAD	powder coated black Order-No. U5-30.R200.54 3D+CAD
A250	L330	Anodizing version natural-colored Order-No. U5-30.R250.01 3D+CAD	Polished stainless steel Order-No. U5-30.R250.37 3D+CAD	powder coated black Order-No. U5-30.R250.54 3D+CAD
A300	L380	Anodizing version natural-colored Order-No. U5-30.R300.01 3D+CAD	Polished stainless steel Order-No. U5-30.R300.37 3D+CAD	powder coated black Order-No. U5-30.R300.54 3D+CAD
A350	L430	Anodizing version natural-colored Order-No. U5-30.R350.01 3D+CAD	Polished stainless steel Order-No. U5-30.R350.37 3D+CAD	powder coated black Order-No. U5-30.R350.54 3D+CAD
A400	L480	Anodizing version natural-colored Order-No. U5-30.R400.01 3D+CAD	Polished stainless steel Order-No. U5-30.R400.37 3D+CAD	powder coated black Order-No. U5-30.R400.54 3D+CAD
A500	L580	Anodizing version natural-colored Order-No. U5-30.R500.01 3D+CAD	Polished stainless steel Order-No. U5-30.R500.37 3D+CAD	powder coated black Order-No. U5-30.R500.54 3D+CAD
