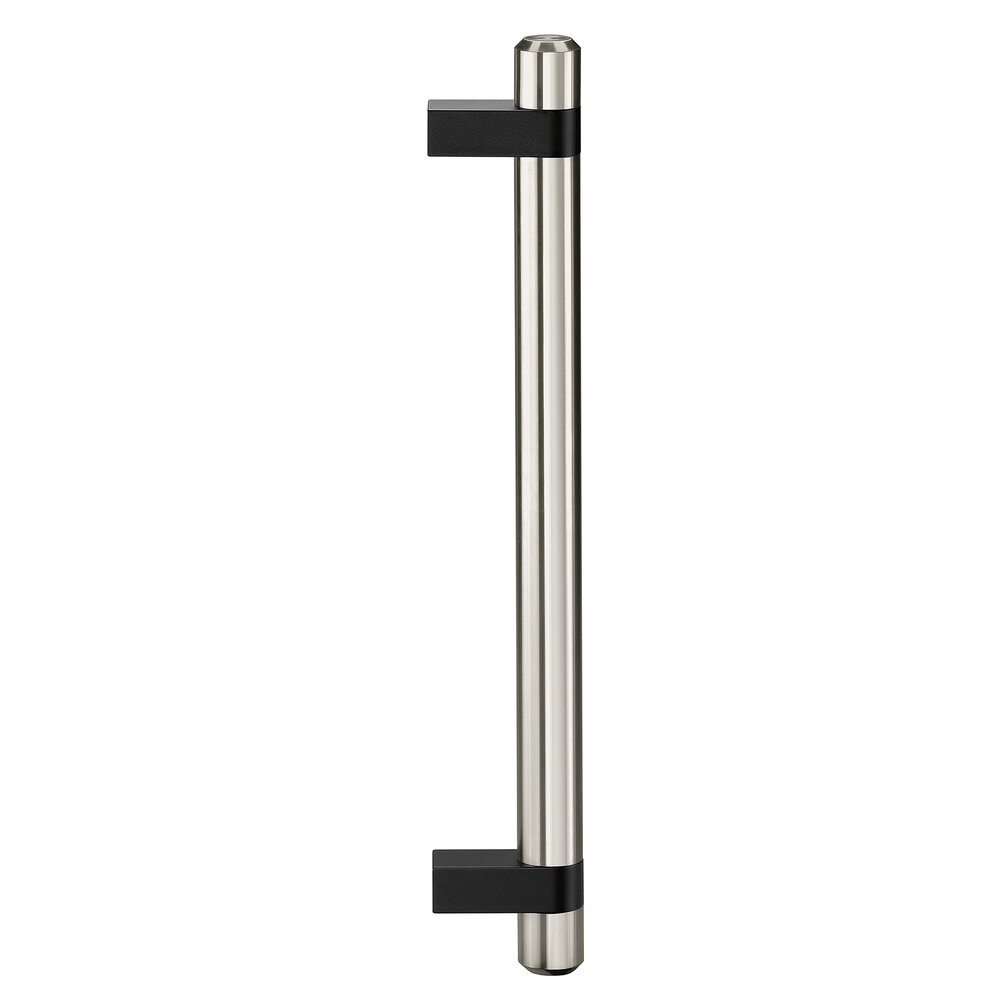

Handles U3

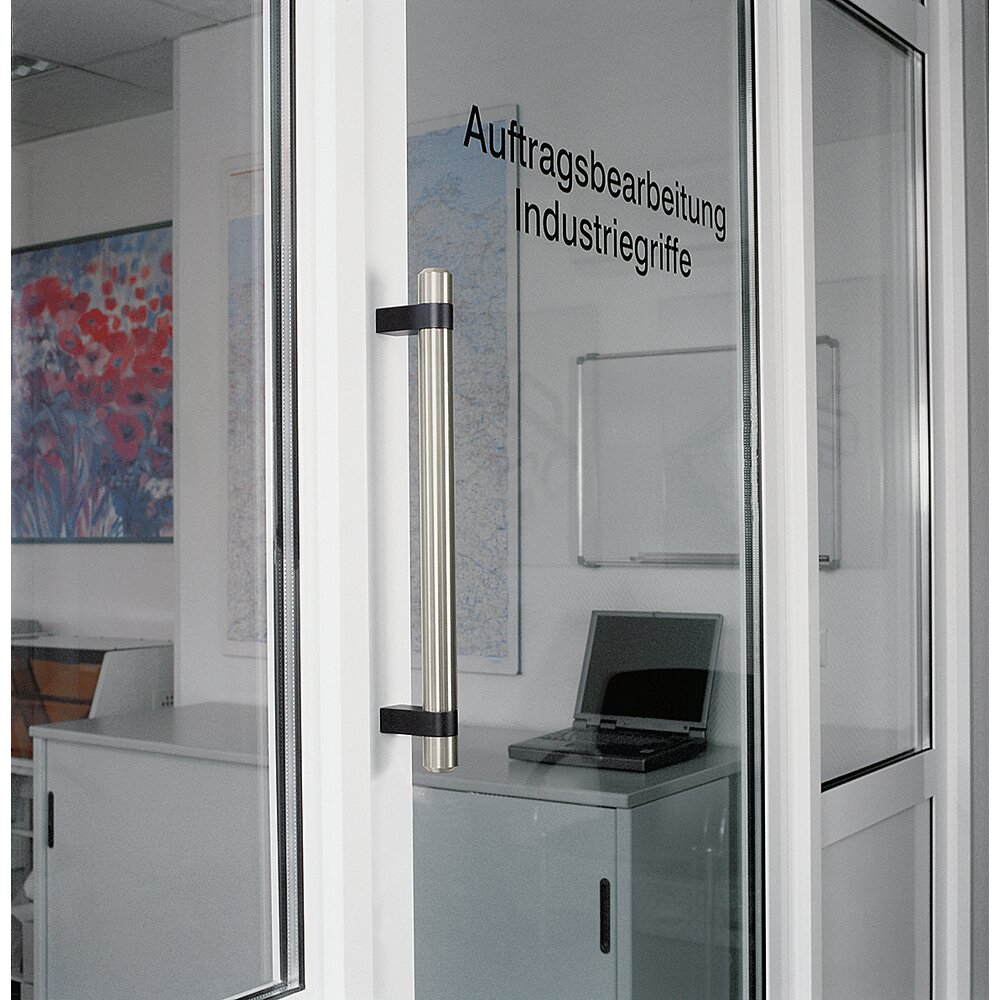

Universal handle with heavy duty design for machines, technical installations and doors, available as single or double handle for mounting on doors on both sides.

Material and surface:
Grip ledge of stainless steel tube ø35x2 mm, material no. 1.4301; fine ground. End pieces of round bar stainless steel, material no. 1.4305; fine ground. Handle shanks of aluminium AlMgSi 0.5; black anodized with dull bright finish.

Assembly and order information:
With all double handles, the supplied inner hexagonal socket head cap screws M8x60 DIN 912 permit fastening to doors with a thickness of 6-20 mm; the use of longer standard screws enables assembly to any optional door thickness.

Note:
Other handle lengths on request.

Stress resistance:
min. 1000 N.

Technical data
Unit of measure
		Description
A	L	Double handles Order-No.	Single handles Order-No.
A300	L395	Double handles Order-No. U3-35.G300.DO 3D+CAD	Single handles Order-No. U3-35.G300.EG 3D+CAD
A400	L495	Double handles Order-No. U3-35.G400.DO 3D+CAD	Single handles Order-No. U3-35.G400.EG 3D+CAD
A500	L595	Double handles Order-No. U3-35.G500.DO 3D+CAD	Single handles Order-No. U3-35.G500.EG 3D+CAD
A600	L695	Double handles Order-No. U3-35.G600.DO 3D+CAD	Single handles Order-No. U3-35.G600.EG 3D+CAD
A700	L795	Double handles Order-No. U3-35.G700.DO 3D+CAD	Single handles Order-No. U3-35.G700.EG 3D+CAD
A800	L895	Double handles Order-No. U3-35.G800.DO 3D+CAD	Single handles Order-No. U3-35.G800.EG 3D+CAD
