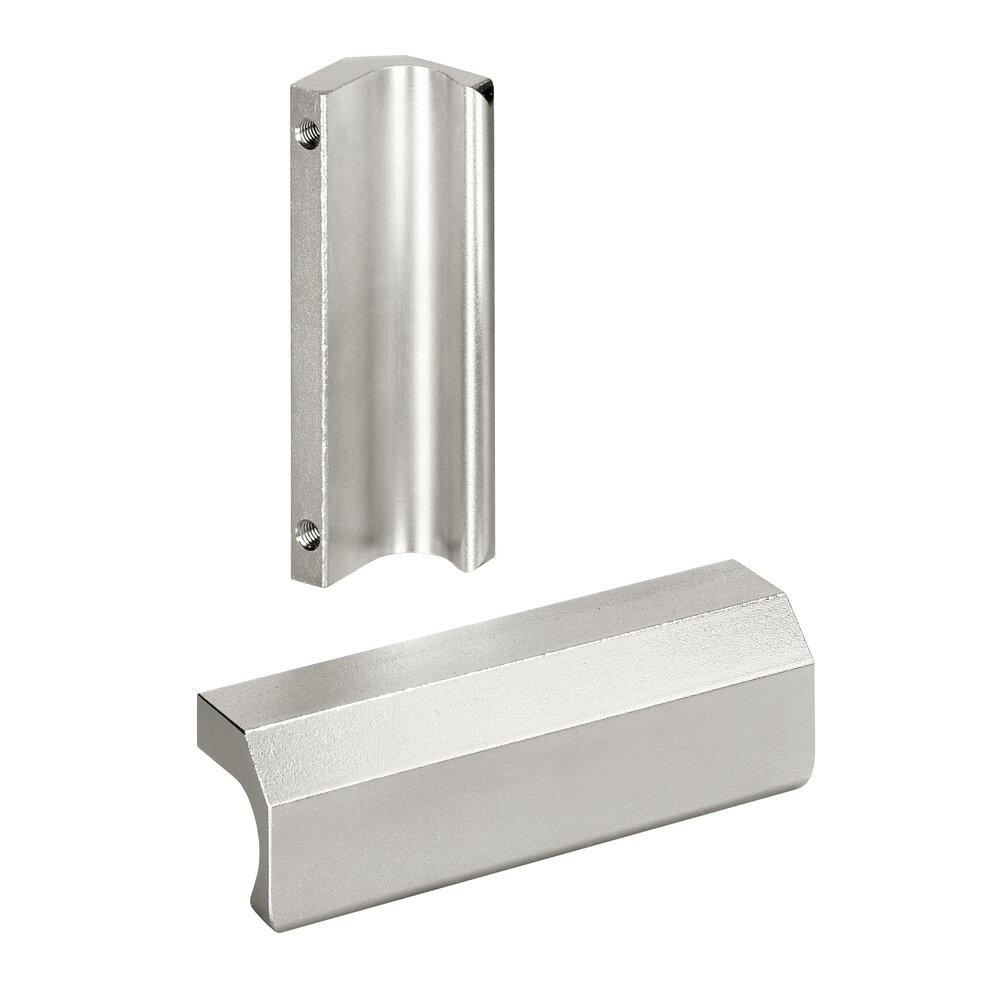

Two profiled stainless steel handles with mounting holes and half-matt surface finish placed on a white background

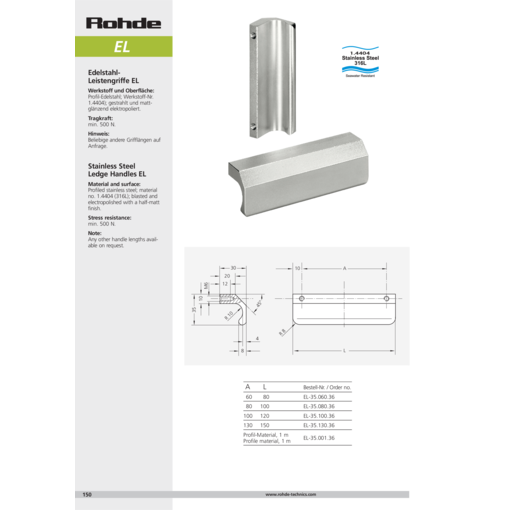

el.pdf

Handles EL

Material and surface:
Profiled stainless steel; material no. 1.4404; blasted and electropolished with a half-matt finish.

Note:
Any other handle lengths available on request.

Stress resistance:
min. 500 N.

Technical drawing

Technical data
Unit of measure

A	L	Order-No.
A60	L80	Order-No. EL-35.060.36 3D+CAD
A80	L100	Order-No. EL-35.080.36 3D+CAD
A100	L120	Order-No. EL-35.100.36 3D+CAD
A130	L150	Order-No. EL-35.130.36 3D+CAD

Zubehör

Profiled material	Order-No.
Profiled materialProfile-material, 1m	Order-No. EL-35.001.36
