Handles PG

Handle for mounting from behind on edges with a material thickness from 1.5 mm to max. 5.0 mm.

Material and surface:

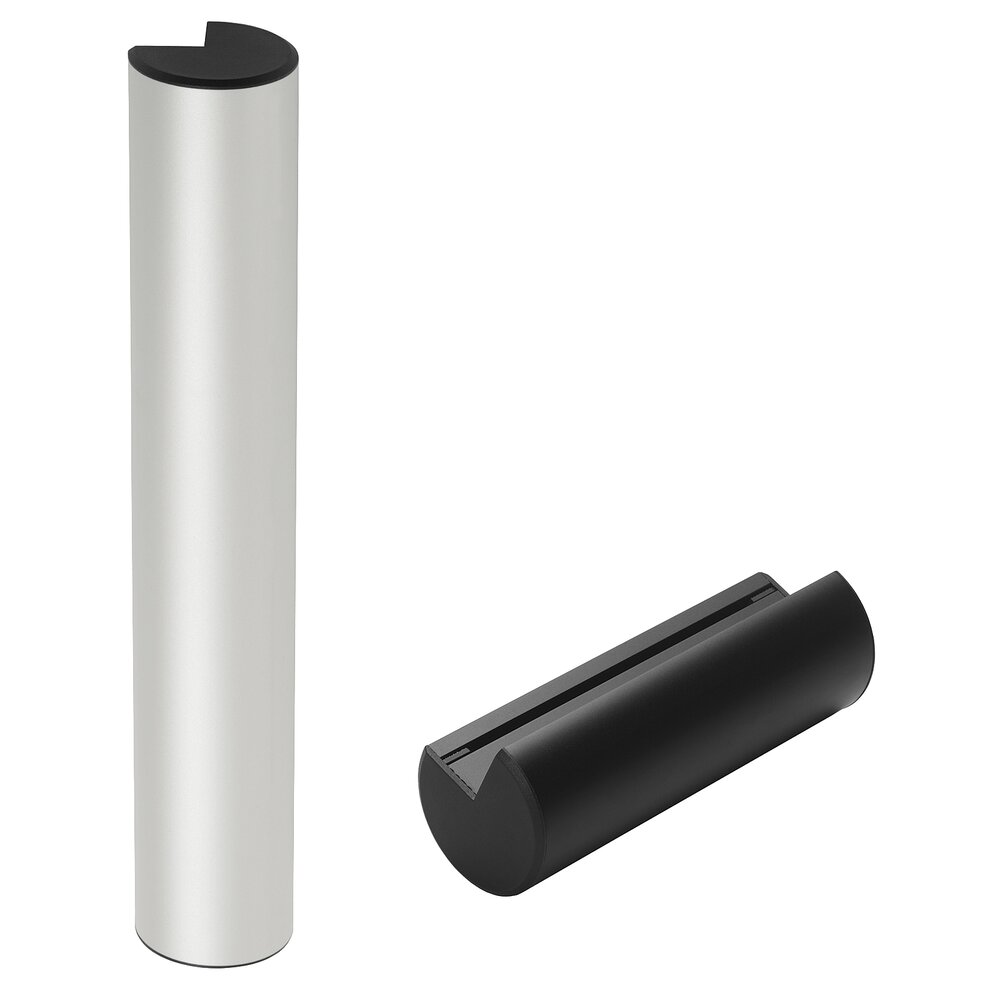

Handle profile of aluminium AlMgSi 0.5; glass ball blasted and half-matt anodized in natural or black colour. Profile end caps of polyamide PA 6, black with fine structure.

Structural features:
An individual arrangement of the retaining screws in the profile grooves is made possible by means of the two continous grooves (offset by 90°) in the handle profile.

Scope of delivery:
4 x SPAX (dry wall) srews; 4.0 x 16 mushroom-headed with cross (Phillips) slot.

Note:
Any other handle lengths and surfaces available on request.

Stress resistance:
min. 400 N.

Technical data
Unit of measure
	Anodizing version
L	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.
L200	Anodizing version natural-colored with satin finish Order-No. PG-01.200.11 3D+CAD	Anodized aluminum black with satin finish Order-No. PG-01.200.14 3D+CAD
L400	Anodizing version natural-colored with satin finish Order-No. PG-01.400.11 3D+CAD	Anodized aluminum black with satin finish Order-No. PG-01.400.14 3D+CAD
L600	Anodizing version natural-colored with satin finish Order-No. PG-01.600.11 3D+CAD	Anodized aluminum black with satin finish Order-No. PG-01.600.14 3D+CAD
L1006*	Anodizing version natural-colored with satin finish Order-No. PG-01.001.11	Anodized aluminum black with satin finish Order-No. PG-01.001.14
