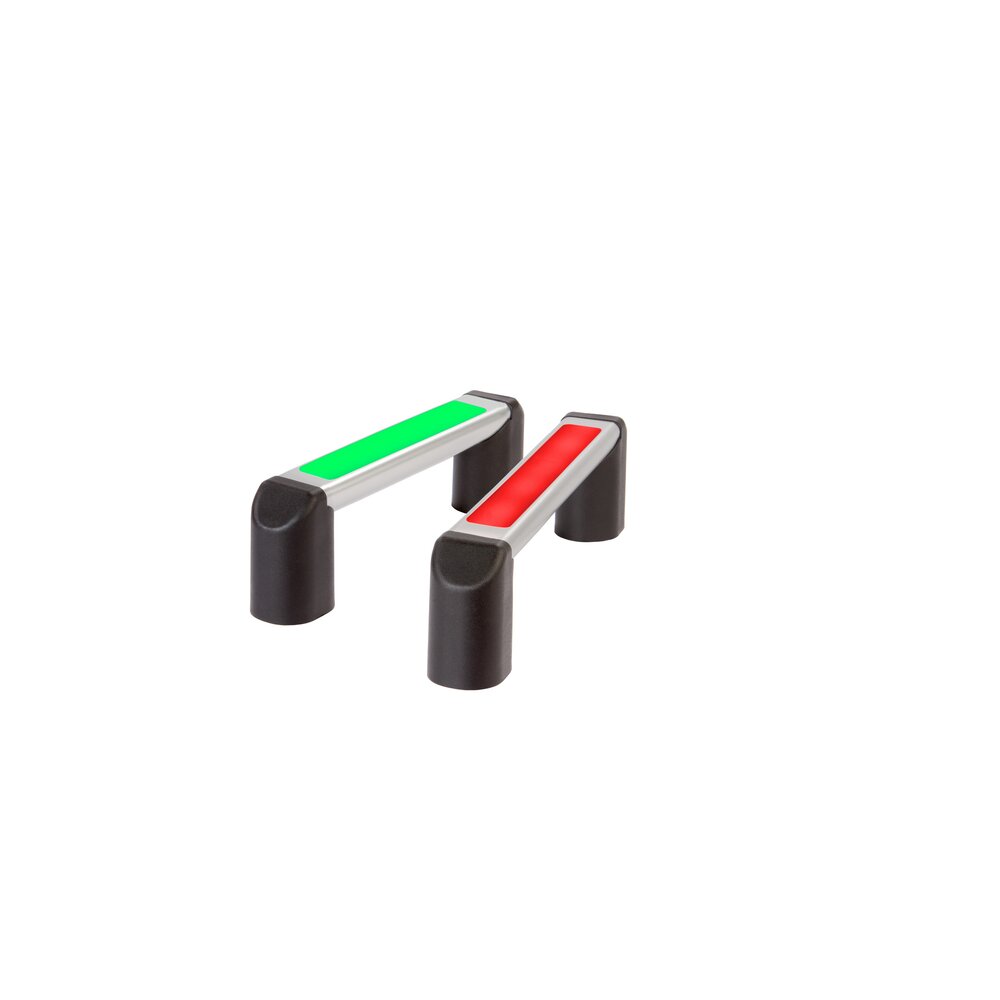

  • FG 12 functional handle with illuminted LED status indicator made of aluminum
  • Close-up of a functional handle FG12-LL with black textured shank, silver aluminium ledge, and green push button labeled Start

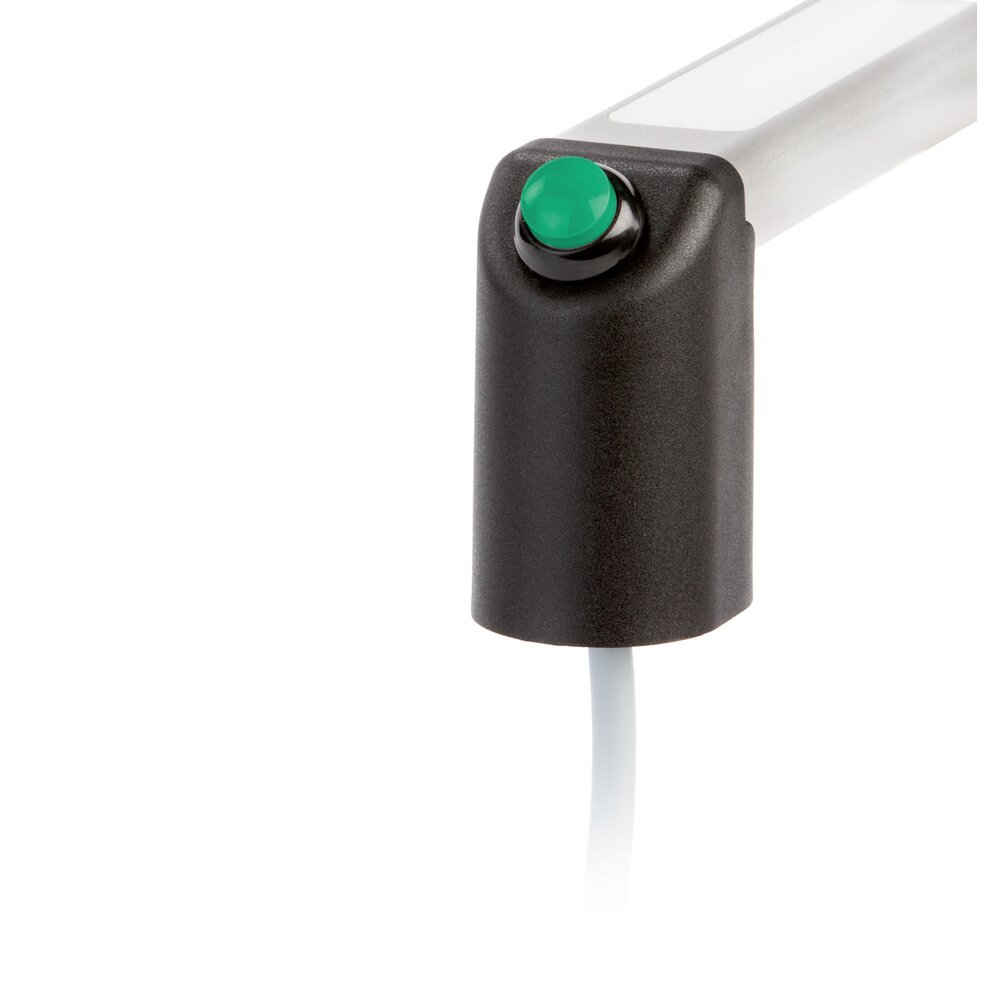

  • Close-up of a black polyamide handle end with a green raised push button and white cable attached.

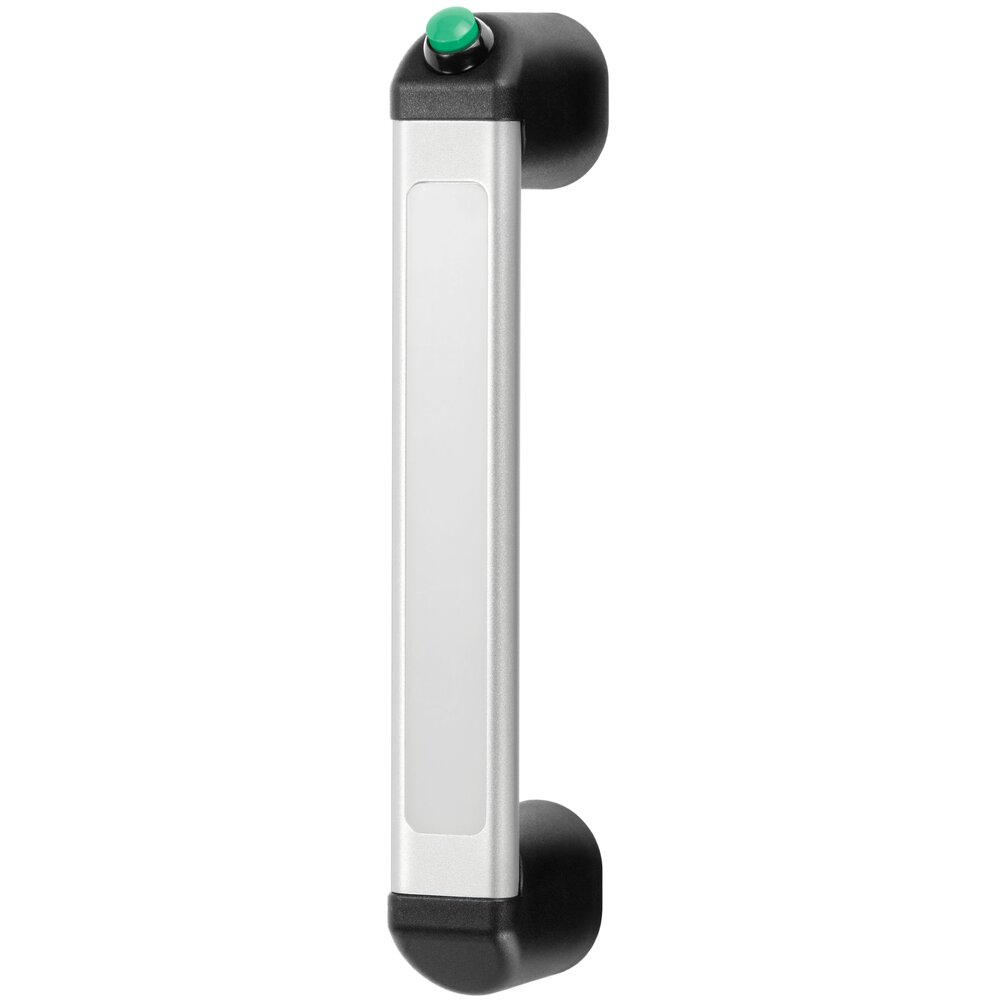

FG 12 functional handle with illuminted LED status indicator made of aluminum

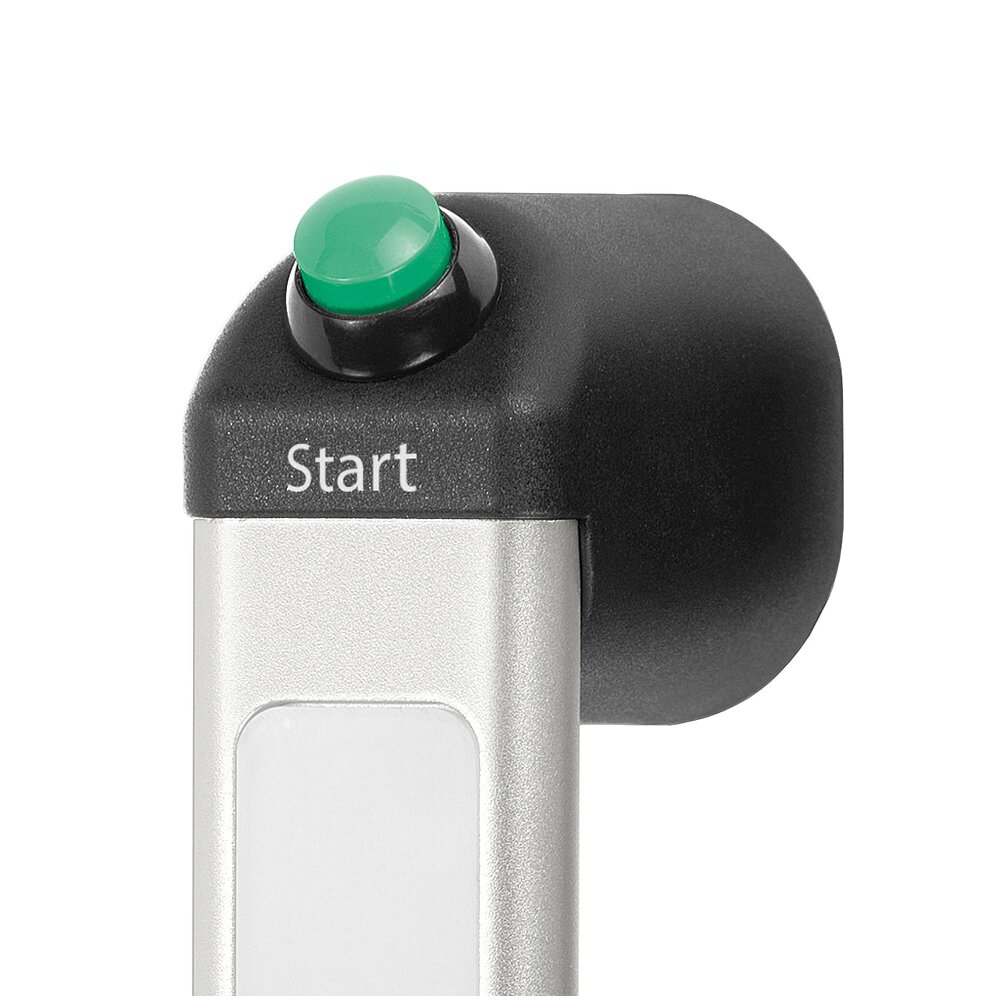

Close-up of a functional handle FG12-LL with black textured shank, silver aluminium ledge, and green push button labeled Start
Close-up of a black polyamide handle end with a green raised push button and white cable attached.

Functional handles FG12-LL

Compact functional handle with a three-coloured illuminatable handle ledge. The LED colours red, yellow and green can be used to display the current operating status of the machine for example.

Material and surface:
Handle shanks made of polyamide PA6, black with a fine structure. Handle ledge made of extruded oval-profiled aluminium AlMgSi 0.5; glass ball blasted and anodized in natural colour. Illuminatable plastic insert made of translucent PMMA.

Function elements:
One push button, as a changeover contact.

Connection:
5m connection cable leading out of the mounting surface of the handle shank. Version with an 8-pin connector on request.

Note:
Other handle lengths and switching element assignments, as well as white handle ledge lighting on request.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities
  • labeling possible
  • further color versions
show more show less

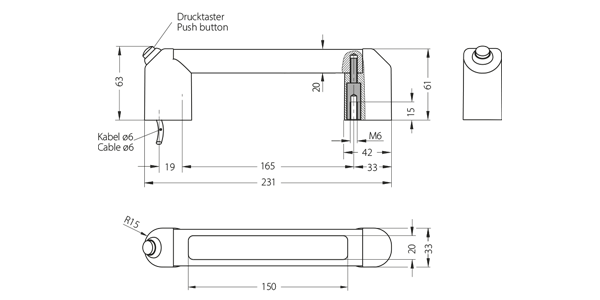

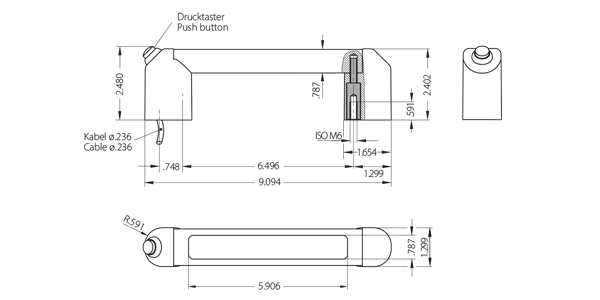

Technical line drawing of FG12-LL handle with measurements, showing push button and cable details.
Unit of measure
Product Type Description A L Order-No.
Product Type Description A L Order-No.
Product Type FG12-LL10 Description without push button with LED-illumination A 160 L 232 Order-No. FG12-LL10.165.11 3D+CAD
Product Type FG12-LL11 Description 1 push button and LED-illumination A 160 L 232 Order-No. FG12-LL11.165.11 3D+CAD
