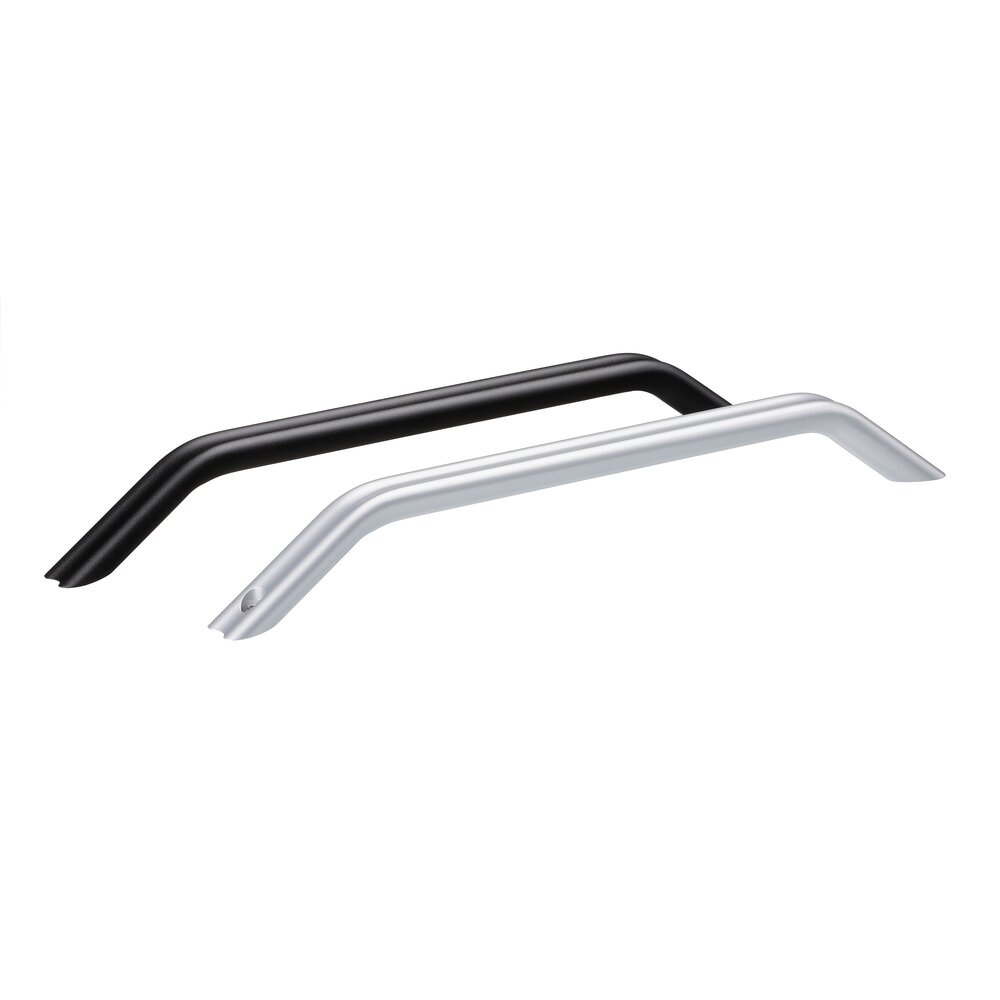

Handles MV-32.F, MV-32.R
Bow type handle in ergonomic design.
Material and surface:
Extruded profiled aluminum AlMgSi 0.5, black with fine structure or silver powder coated.
Scope of delivery:
Handle type MV-32.F incl. stainless steel screws with hexagon socket ISO7380 M8 × 25.
Note:
Any desired handle lengths and colors on request.
Stress resistance:
min. 1.000 N.

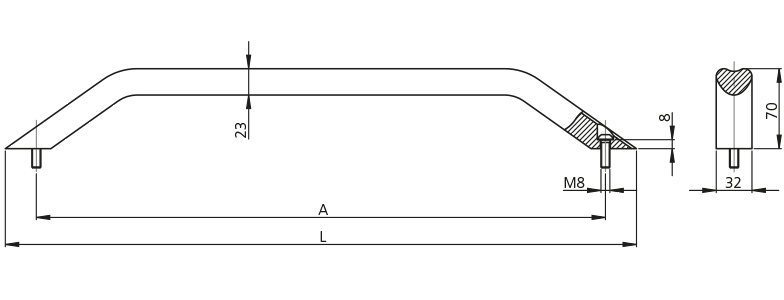

Version MV-32.F
|
Unit of measure
|
||||
|---|---|---|---|---|
| Type | ||||
| Assembly version | A | L |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
| Assembly version | A | L |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
|---|---|---|---|---|
| Assembly version für Frontbefestigung | A 500 | L 550 |
powder coated black
Order-No. MV-32.F500.54 3D+CAD |
Aluminum powder coated silver
Order-No. MV-32.F500.9006 3D+CAD |
| Assembly version für Frontbefestigung | A 600 | L 650 |
powder coated black
Order-No. MV-32.F600.54 3D+CAD |
Aluminum powder coated silver
Order-No. MV-32.F600.9006 3D+CAD |
| Assembly version für Frontbefestigung | A 800 | L 850 |
powder coated black
Order-No. MV-32.F800.54 3D+CAD |
Aluminum powder coated silver
Order-No. MV-32.F800.9006 3D+CAD |

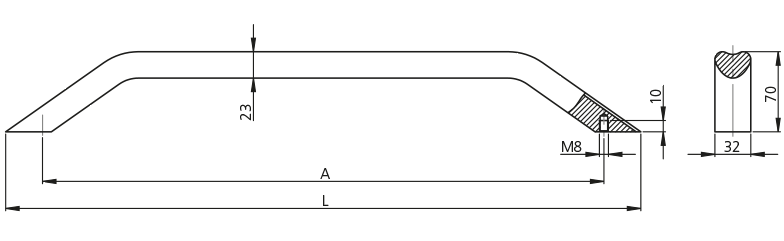

Version MV-32.R
|
Unit of measure
|
||||
|---|---|---|---|---|
| Type | ||||
| Assembly version | A | L |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
| Assembly version | A | L |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
|---|---|---|---|---|
| Assembly version for behind mounting | A 500 | L 566 |
powder coated black
Order-No. MV-32.R500.54 3D+CAD |
Aluminum powder coated silver
Order-No. MV-32.R500.9006 3D+CAD |
| Assembly version for behind mounting | A 600 | L 666 |
powder coated black
Order-No. MV-32.R600.54 3D+CAD |
Aluminum powder coated silver
Order-No. MV-32.R600.9006 3D+CAD |
| Assembly version for behind mounting | A 800 | L 866 |
powder coated black
Order-No. MV-32.R800.54 3D+CAD |
Aluminum powder coated silver
Order-No. MV-32.R800.9006 3D+CAD |
