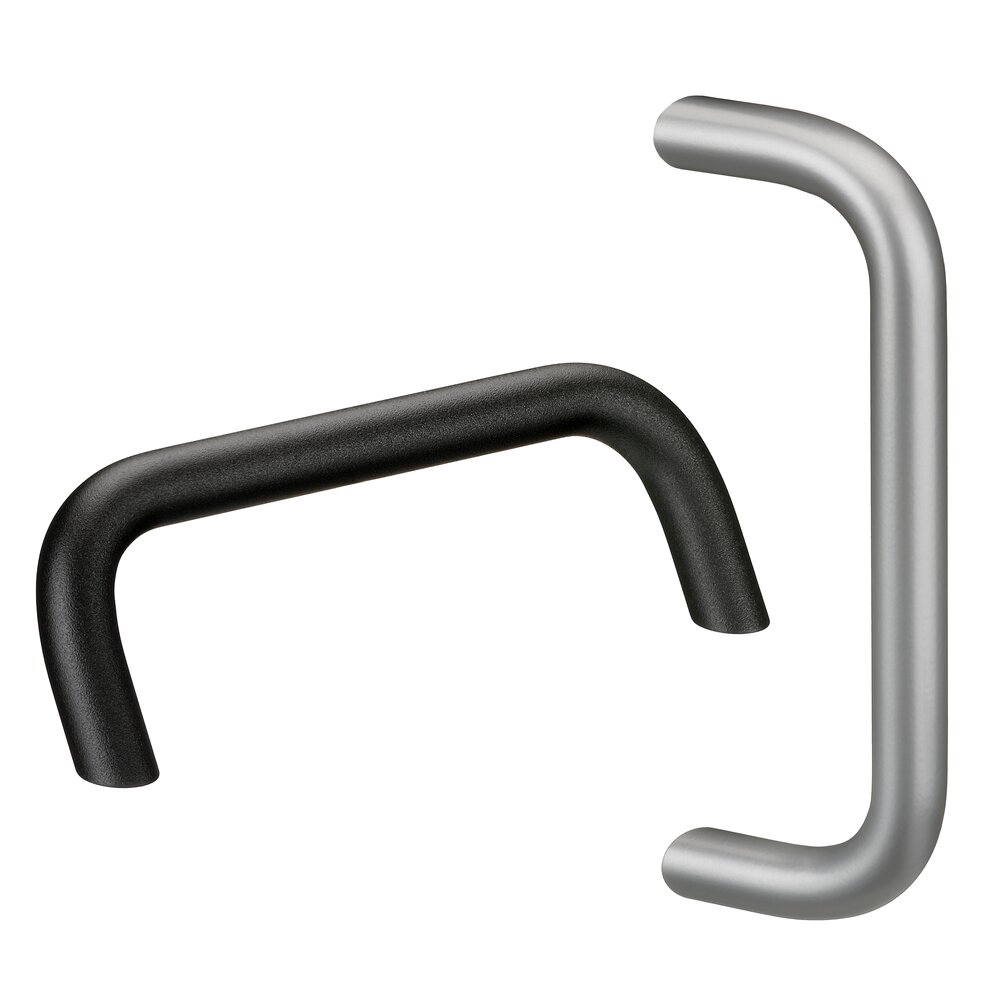

Handles M1-20.S

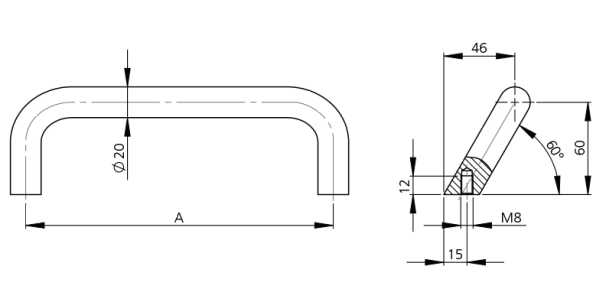

Handle with beveled mounting surfaces for screw attachment from behind.
Material and surface:
Round bar aluminum AlMgSi 0.5; in black with fine structure or silver powder coated.
Note:
Other dimensions and variations on request.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
||
|---|---|---|
| Type | ||
| A |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
| A |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
|---|---|---|
| A 200 |
powder coated black
Order-No. M1-20.S200.54 3D+CAD |
Aluminum powder coated silver
Order-No. M1-20.S200.9006 3D+CAD |
| A 300 |
powder coated black
Order-No. M1-20.S300.54 3D+CAD |
Aluminum powder coated silver
Order-No. M1-20.S300.9006 3D+CAD |
| A 400 |
powder coated black
Order-No. M1-20.S400.54 3D+CAD |
Aluminum powder coated silver
Order-No. M1-20.S400.9006 3D+CAD |
| A 600 |
powder coated black
Order-No. M1-20.S600.54 3D+CAD |
Aluminum powder coated silver
Order-No. M1-20.S600.9006 3D+CAD |
