MV-32.A MV-32.B - Rohde AG | Aluminum, stainless steel and plastic handles

Handles MV-32.A MV-32.B

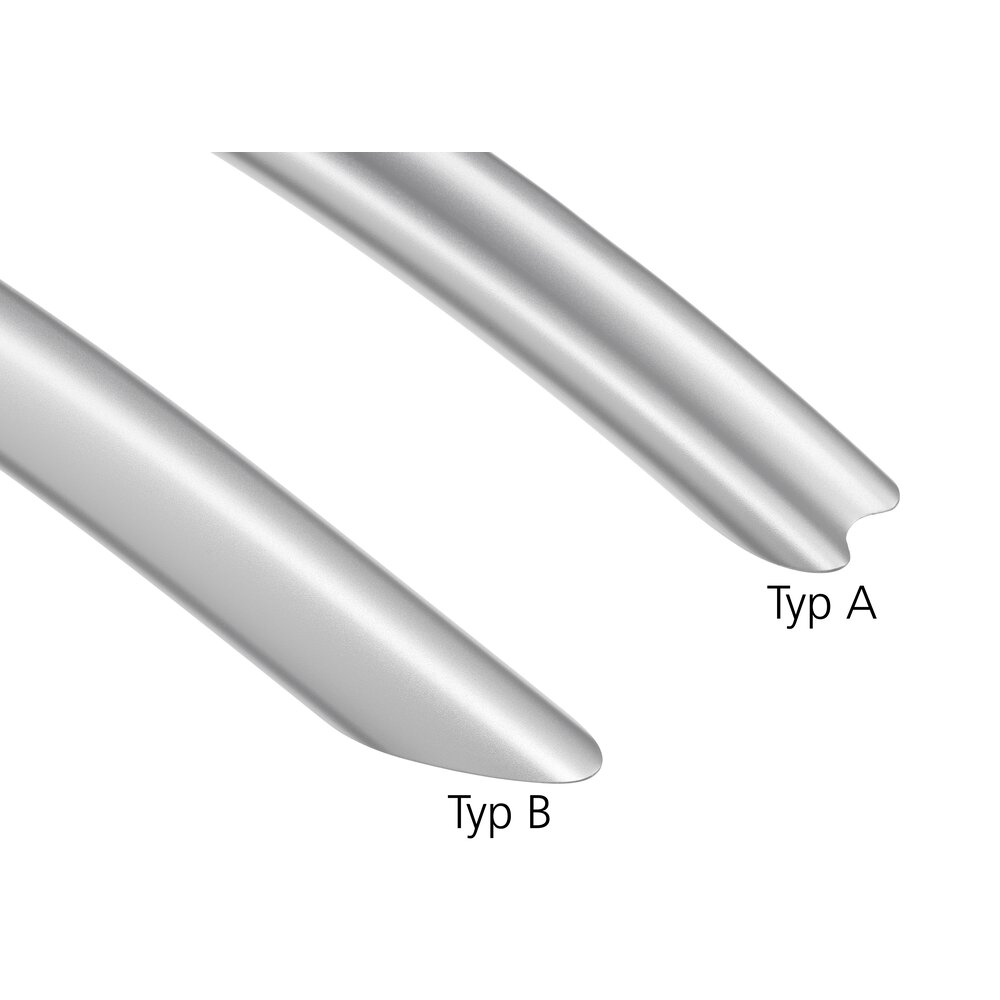

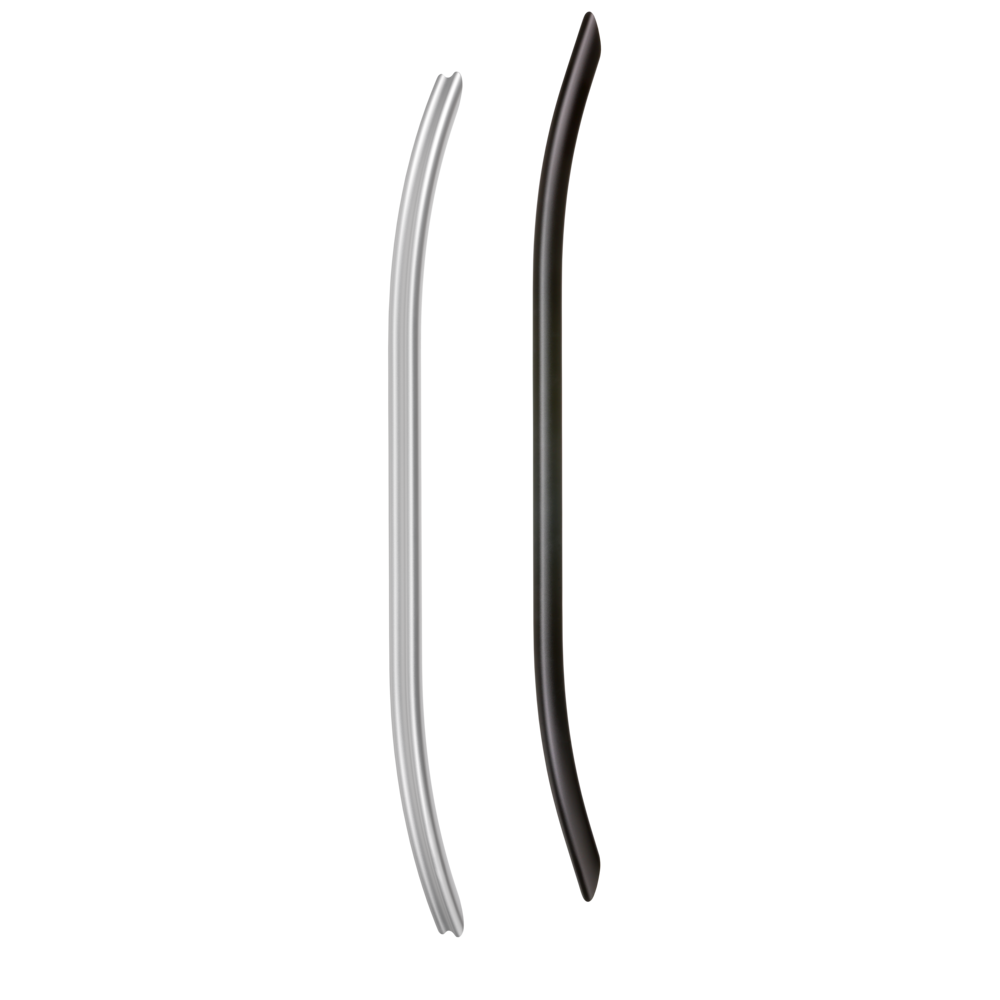

Bow type handle in ergonomic design.

Material and surface:
Extruded profiled aluminum AlMgSi 0.5, black with fine structure or silver powder coated.

Scope of delivery:
Handle type MV-32.F incl. stainless steel screws with hexagon socket ISO7380 M8 × 25.

Note:
Any desired handle lengths and colors on request.

Stress resistance:
min. 1.000 N.

show more show less

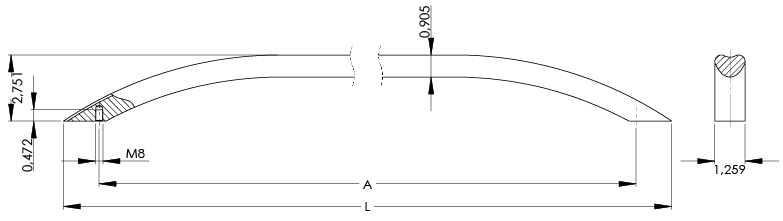

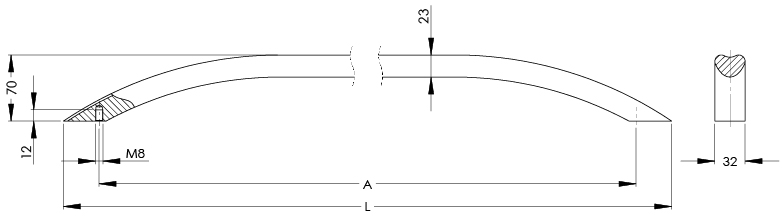

Version MV-32.A

Unit of measure
Type
Typ A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Typ A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Typ A A 700 L 750 Anodizing version natural-colored with satin finish
Order-No. MV-32.A700.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MV-32.A700.14 3D+CAD
Typ A A 800 L 850 Anodizing version natural-colored with satin finish
Order-No. MV-32.A800.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MV-32.A800.14 3D+CAD
Typ A A 1000 L 1050 Anodizing version natural-colored with satin finish
Order-No. MV-32.A1000.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MV-32.A1000.14 3D+CAD

Version MV-32.B

Technical drawing showing side and cross-section views of an aluminium bow-type handle labeled with detailed dimensions including height, width, thickness, and mounting hole specifications.
Technical drawing showing side and cross-section views of an aluminium bow-type handle labeled with detailed dimensions including height, width, thickness, and mounting hole specifications.
Unit of measure
Type
Typ A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Typ A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Typ B A 700 L 750 Anodizing version natural-colored with satin finish
Order-No. MV-32.B700.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MV-32.B700.14 3D+CAD
Typ B A 800 L 850 Anodizing version natural-colored with satin finish
Order-No. MV-32.B800.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MV-32.B800.14 3D+CAD
Typ B A 1000 L 1050 Anodizing version natural-colored with satin finish
Order-No. MV-32.B1000.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MV-32.B1000.14 3D+CAD
