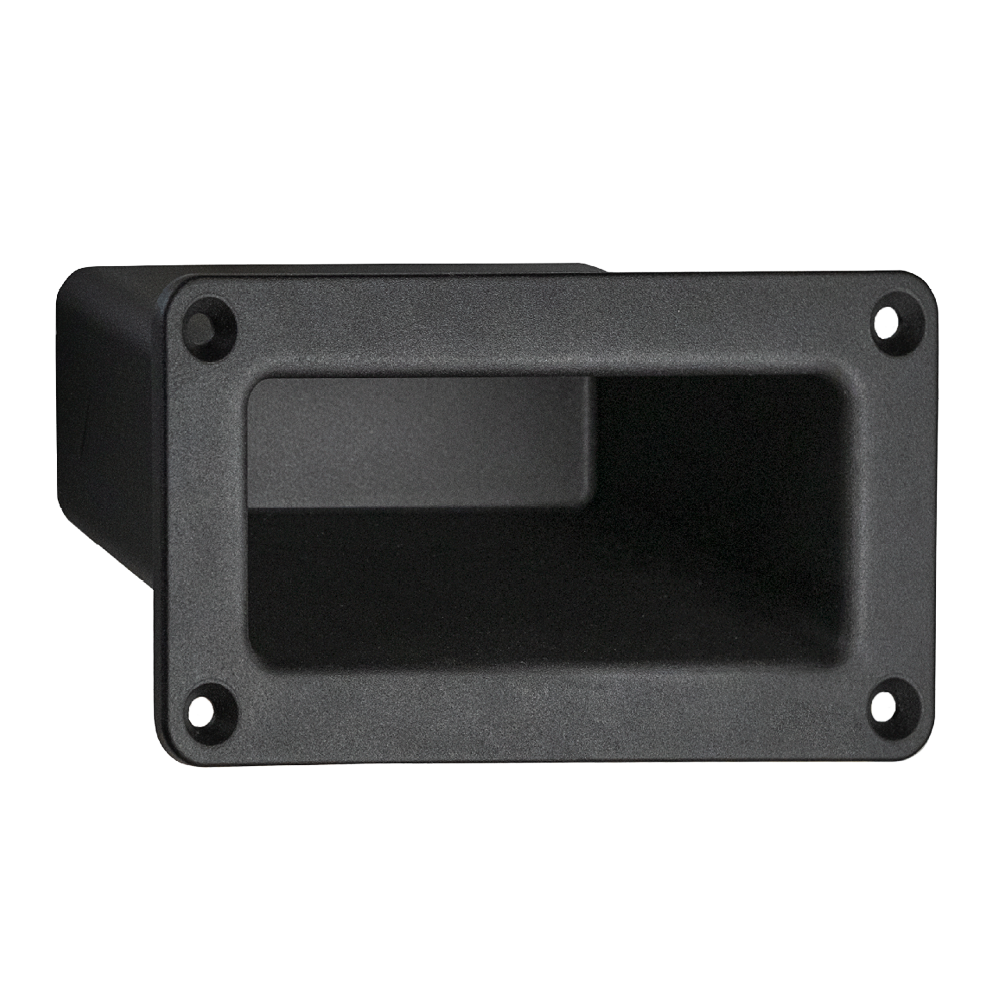

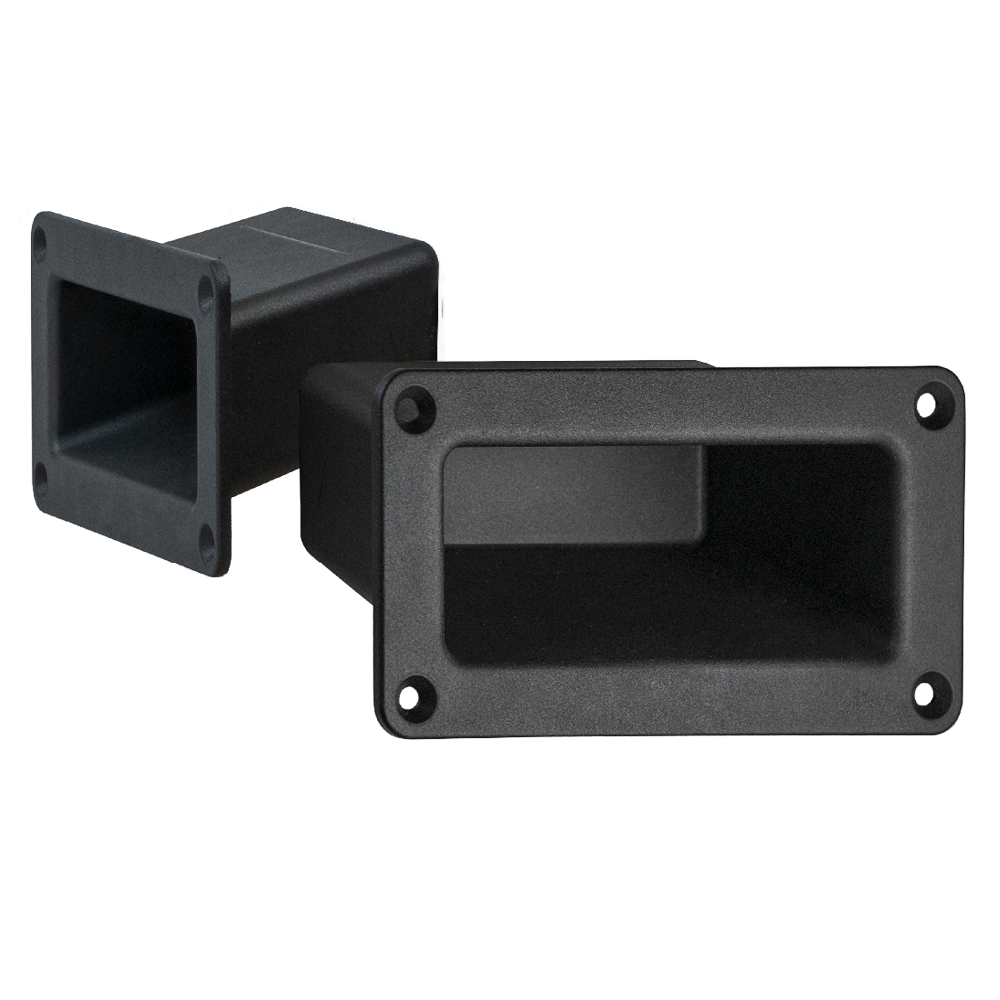

Handles KM-55

Ergonomic handle with an extra deep recess for pulling and lifting.

Material and surface:
Polyamide PA6, glass ball reinforcement, fine structure in visible surface. Similar to RAL 9005.

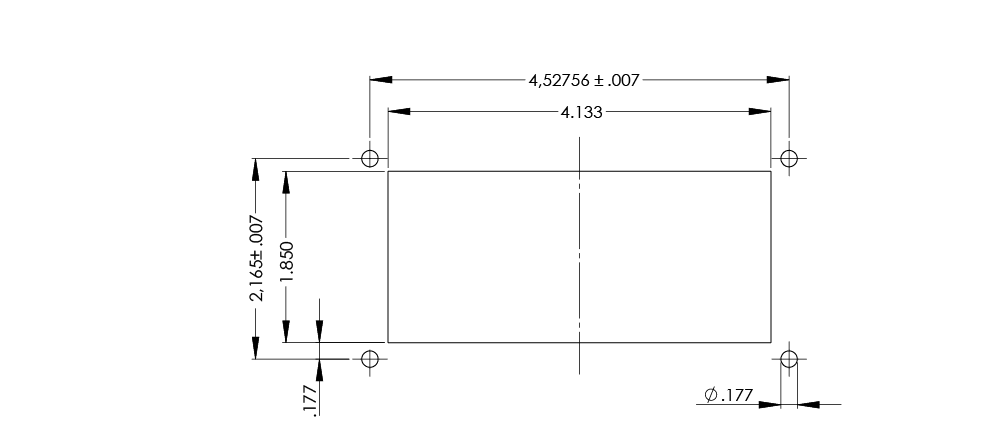

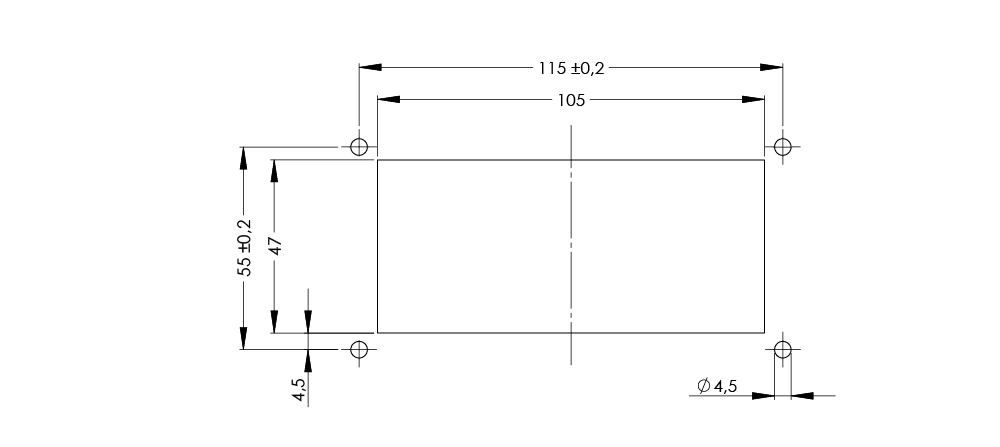

Mounting:

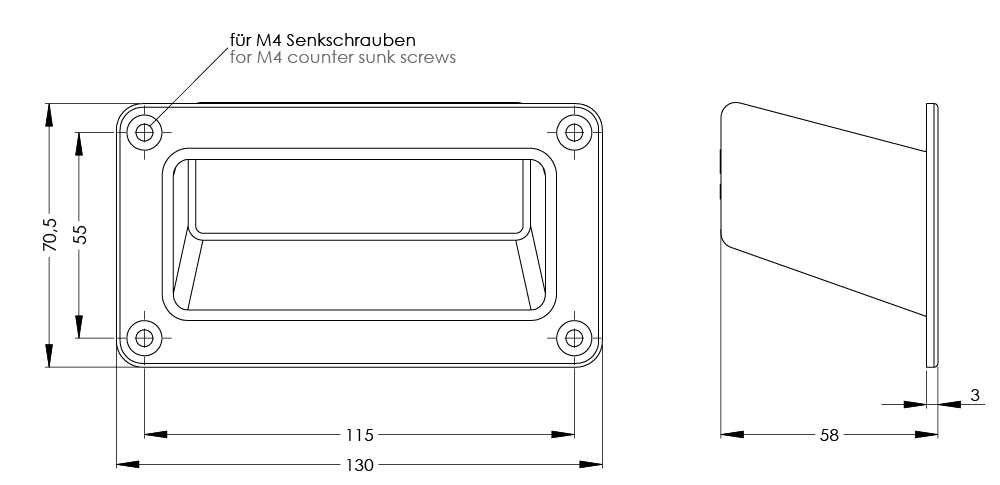

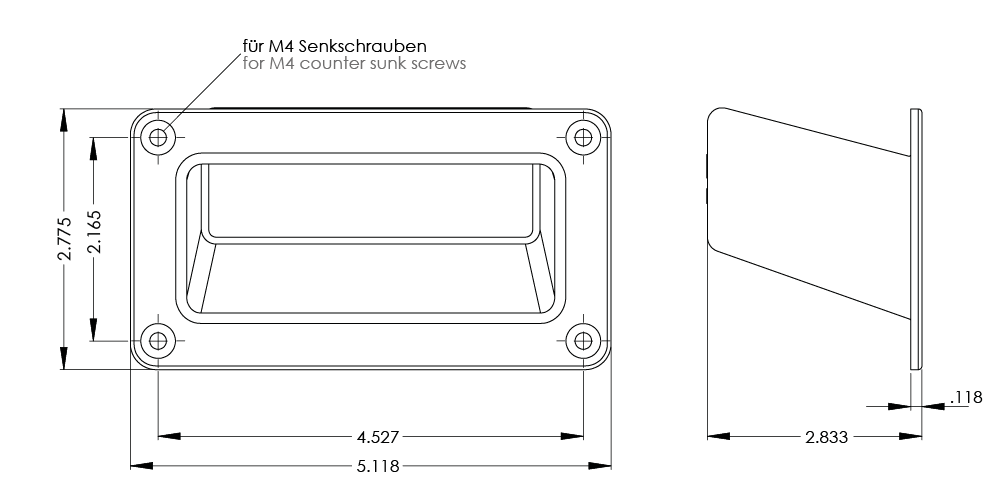

The handle will be set into the recess of the housing wall and fixed front sided with 4 countersunk screws; not included in scope of delivery.

Stress resistance:
min. 1.000 N.

Note:
Other colour combinations available on request.

Technical data
Unit of measure

Order-No.
Order-No. KM-55.115.9005 3D+CAD
