Handles SG-20

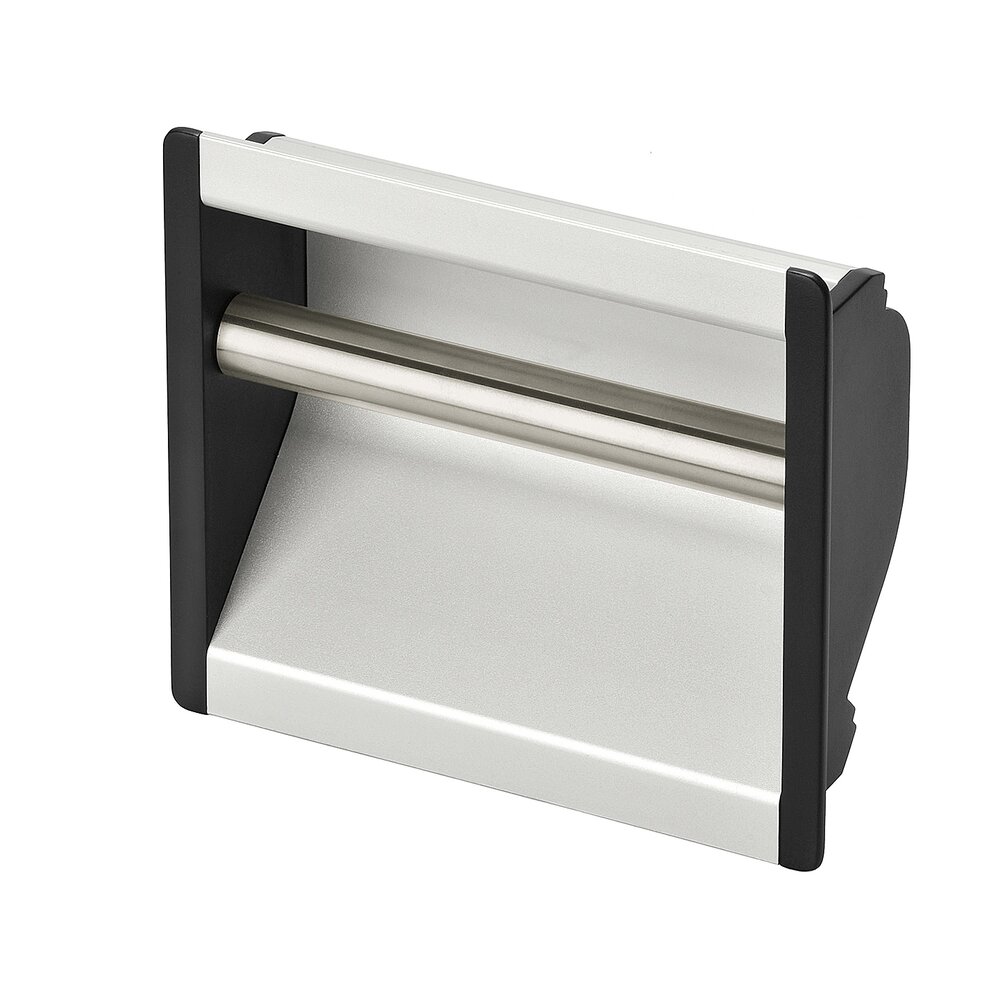

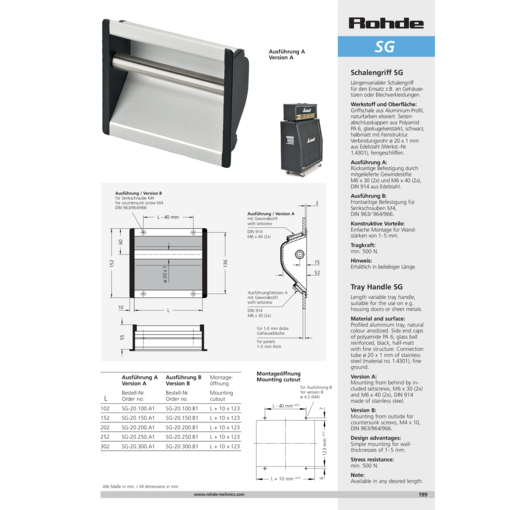

Length variable tray handle, suitable for the use on e.g. housing doors or sheet metals.

Material and surface:
Profiled aluminium tray, natural colour anodized. Side end caps of polyamide PA 6, glass ball reinforced, black, half-matt with fine structure. Connection tube ø 20 x 1 mm of stainless steel (material no. 1.4301), fine ground.

Version A:
Mounting from behind by included setscrews, M6 x 30 (2x) and M6 x 40 (2x), DIN 914 made of stainless steel.

Version B:
Mounting from outside for countersunk screws, M4 x 10, DIN 963/964/966.

Design advantages:
Simple mounting for wallthicknesses of 1- 5 mm.

Note:
Available in any desired length.

Stress resistance:
min. 500 N.

show more show less

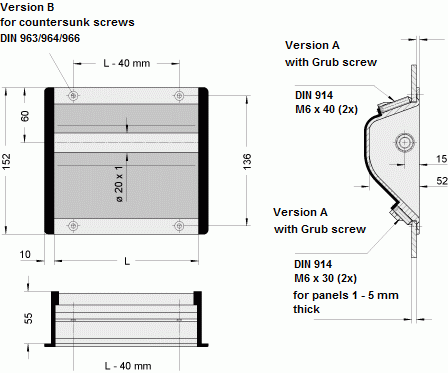

Technical drawing illustrating SG-20 tray handle with labeled dimensions and mounting instructions for versions A and B.
Technical drawing illustrating SG-20 tray handle with labeled dimensions and mounting instructions for versions A and B.
Unit of measure
L Version A
Order-No. 		Version B
Order-No. 		Mountingcutout
L Version A
Order-No. 		Version B
Order-No. 		Mountingcutout
L 102 Version A
Order-No. SG-20.100.A1 3D+CAD 		Version B
Order-No. SG-20.100.B1 3D+CAD 		Mountingcutout L + 10 x 123
L 152 Version A
Order-No. SG-20.150.A1 3D+CAD 		Version B
Order-No. SG-20.150.B1 3D+CAD 		Mountingcutout L + 10 x 123
L 202 Version A
Order-No. SG-20.200.A1 3D+CAD 		Version B
Order-No. SG-20.200.B1 3D+CAD 		Mountingcutout L + 10 x 123
L 252 Version A
Order-No. SG-20.250.A1 3D+CAD 		Version B
Order-No. SG-20.250.B1 3D+CAD 		Mountingcutout L + 10 x 123
L 302 Version A
Order-No. SG-20.300.A1 3D+CAD 		Version B
Order-No. SG-20.300.B1 3D+CAD 		Mountingcutout L + 10 x 123
