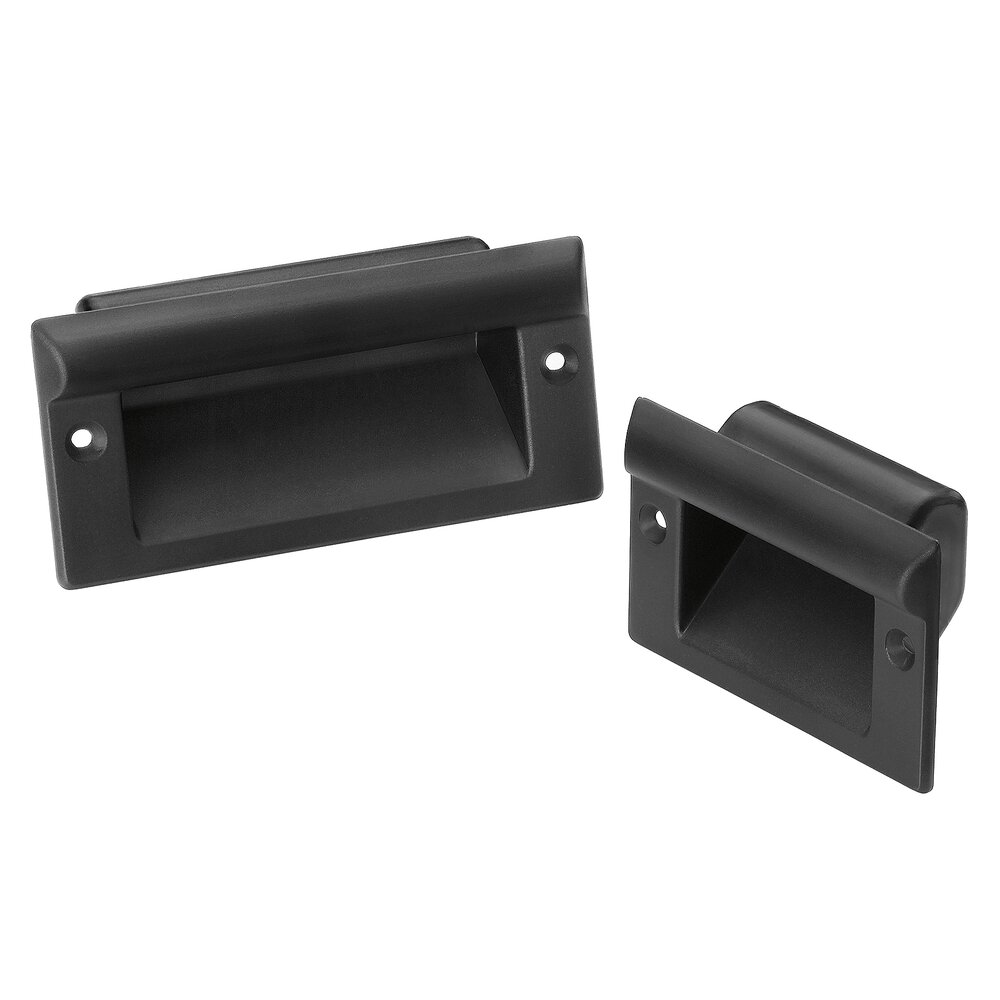

Handles KM-61
These ergonomically formed trough inset handles are suitable for different wall thicknesses. A stable fitting of the handle is guaranteed at all time.
Design features:
Simple and secure screw mounting for wall thicknesses from 1-5 mm.
Material and surface:
Polyamide PA6, glass ball reinforced, half-matt with fine structure on visible surface, in 4 different colour versions.
Mounting:
The handle will be set into the recess of the housing wall and fixed front sided with 2 countersunk screws, not included in scope of delivery.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
||||
|---|---|---|---|---|
| A | L | B | Color of tray | Order-No. |
| A | L | B | Color of tray | Order-No. |
|---|---|---|---|---|
| A 82 | L 100 | B 67 | Color of tray grey white | Order-No. KM-61.082.9002 3D+CAD |
| A 82 | L 100 | B 67 | Color of tray light grey | Order-No. KM-61.082.7035 3D+CAD |
| A 82 | L 100 | B 67 | Color of tray black | Order-No. KM-61.082.9005 3D+CAD |
| A 82 | L 100 | B 67 | Color of tray stone grey | Order-No. KM-61.082.7030 3D+CAD |
| A 112 | L 130 | B 97 | Color of tray grey white | Order-No. KM-61.112.9002 3D+CAD |
| A 112 | L 130 | B 97 | Color of tray light grey | Order-No. KM-61.112.7035 3D+CAD |
| A 112 | L 130 | B 97 | Color of tray black | Order-No. KM-61.112.9005 3D+CAD |
| A 112 | L 130 | B 97 | Color of tray stone grey | Order-No. KM-61.112.7030 3D+CAD |
