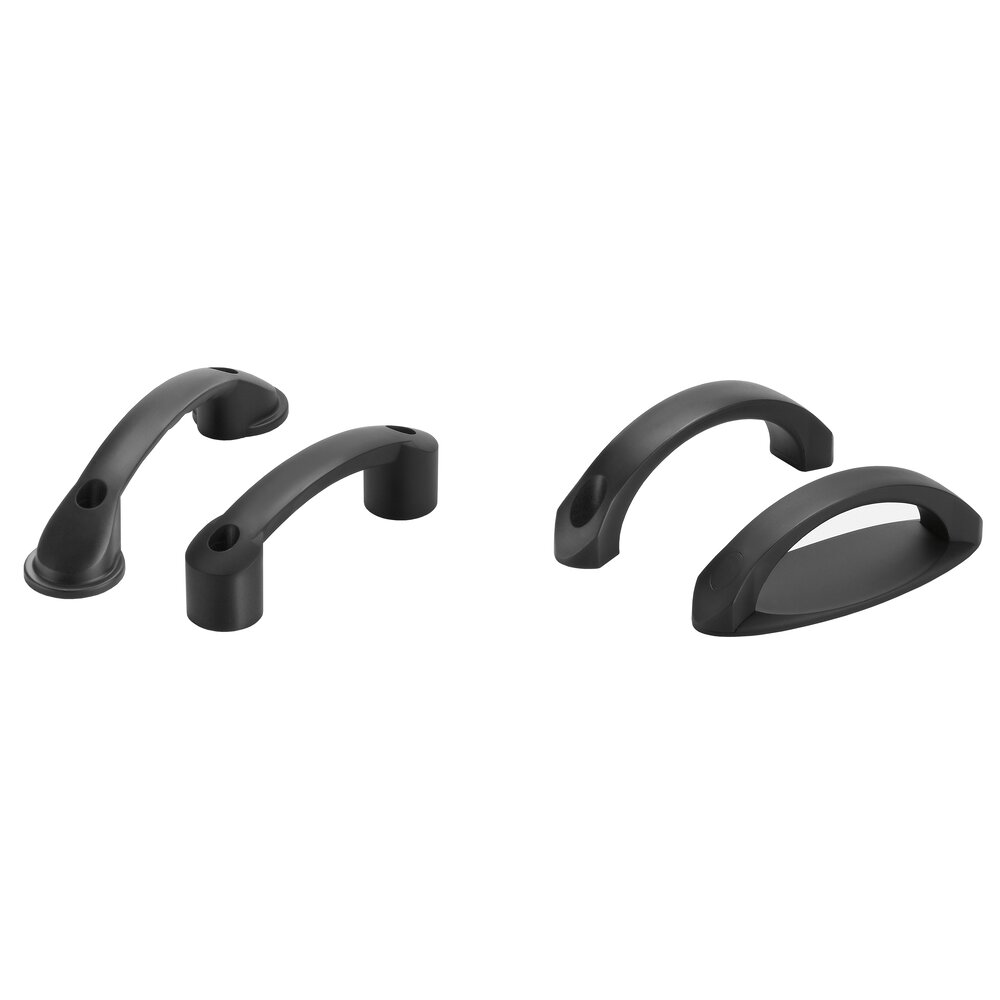

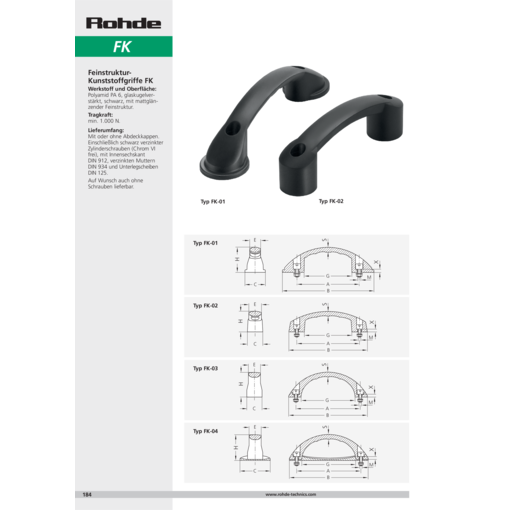

Handles FK

Material and surface:
Polyamide PA6, glass ball reinforced. Black with half-matt fine structure.

Scope of supply:
With or without cover caps. Including black galvanized cheese head screws (chromium VI free) with hexagon sockets DIN 912, galvanized nuts DIN 934 and washers DIN 125. Also available without screws.

Stress resistance:
min. 1000 N.

Version FK-01

FK-01
Unit of measure
Description
Type A without caps Order-No.	Type B with caps Order-No.	A	M	B	C	H	S	G_mm	E	X_mm
Type A without caps Order-No. FK-01.A100.84 3D+CAD	Type B with caps Order-No. —	A100	MM6 x 15	B147	C31	H40	S8	G_mm77	E17	X_mm5
Type A without caps Order-No. FK-01.A120.84 3D+CAD	Type B with caps Order-No. —	A120	MM6 x 15	B184	C39	H42	S9	G_mm96	E19	X_mm6
Type A without caps Order-No. —	Type B with caps Order-No. FK-01.B120.84 3D+CAD	A120	MM8 x 20	B209	C48	H50	S14	G_mm103	E24	X_mm5
Type A without caps Order-No. —	Type B with caps Order-No. FK-01.B140.84 3D+CAD	A140	MM8 x 20	B230	C50	H53	S12	G_mm114	E25	X_mm5
Type A without caps Order-No. —	Type B with caps Order-No. FK-01.B160.84 3D+CAD	A160	MM8 x 20	B248	C53	H56	S14	G_mm122	E26	X_mm5

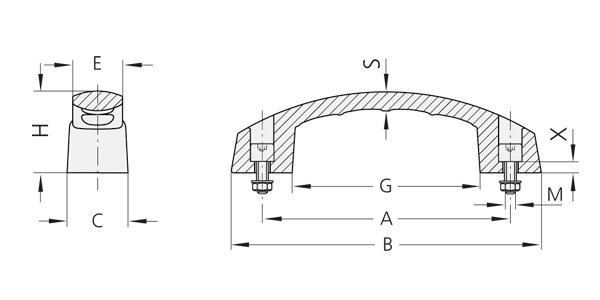

Version FK-02

FK-02
Unit of measure
Description
Type A without caps Order-No.	Type B with caps Order-No.	A	M	B	C	H	S	G_mm	E	X_mm
Type A without caps Order-No. FK-02.A100.84 3D+CAD	Type B with caps Order-No. —	A100	MM6 x 15	B130	C27	H38	S9	G_mm79	E22	X_mm5
Type A without caps Order-No. FK-02.A120.84 3D+CAD	Type B with caps Order-No. —	A120	MM6 x 20	B150	C29	H38	S9	G_mm91	E23	X_mm8
Type A without caps Order-No. —	Type B with caps Order-No. FK-02.B120.84 3D+CAD	A120	MM8 x 20	B153	C33	H51	S12	G_mm87	E22	X_mm5
Type A without caps Order-No. —	Type B with caps Order-No. FK-02.B140.84 3D+CAD	A140	MM8 x 20	B178	C38	H59	S17	G_mm101	E26	X_mm6

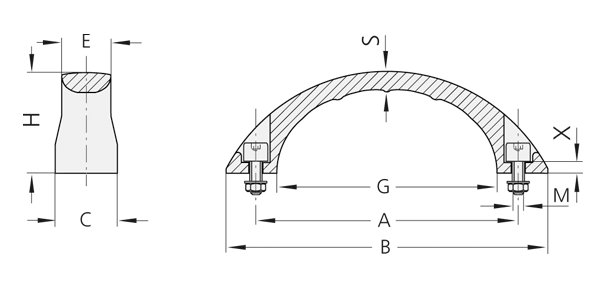

Version FK-03

FK-03
Unit of measure
Description
Type A without caps Order-No.	Type B with caps Order-No.	A	M	B	C	H	S	G_mm	E	X_mm
Type A without caps Order-No. FK-03.A100.84 3D+CAD	Type B with caps Order-No. —	A100	MM6 x 15	B121	C23	H37	S8	G_mm84	E19	X_mm4
Type A without caps Order-No. —	Type B with caps Order-No. FK-03.B120.84 3D+CAD	A120	MM6 x 15	B152	C28	H50	S12	G_mm105	E23	X_mm5
Type A without caps Order-No. —	Type B with caps Order-No. FK-03.B140.84 3D+CAD	A140	MM8 x 20	B177	C31	H54	S12	G_mm122	E25	X_mm5,5

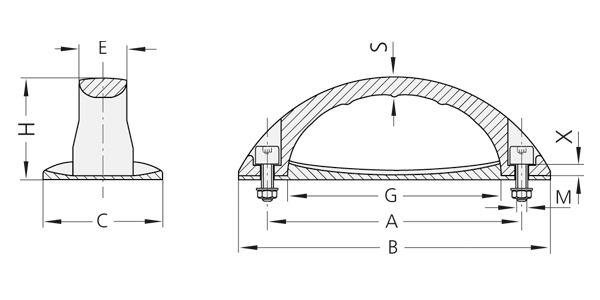

Version FK-04

FK-04
Unit of measure
Description
Type A without caps Order-No.	Type B with caps Order-No.	A	M	B	C	H	S	G_mm	E	X_mm
Type A without caps Order-No. FK-04.A100.84 3D+CAD	Type B with caps Order-No. —	A100	MM6 x 15	B121	C48	H40	S11	G_mm84	E19	X_mm6
Type A without caps Order-No. —	Type B with caps Order-No. FK-04.B120.84 3D+CAD	A120	MM6 x 20	B152	C57	H52	S16	G_mm104	E23	X_mm7
Type A without caps Order-No. —	Type B with caps Order-No. FK-04.B140.84 3D+CAD	A140	MM8 x 20	B177	C62	H56	S19	G_mm122	E25	X_mm7,5
