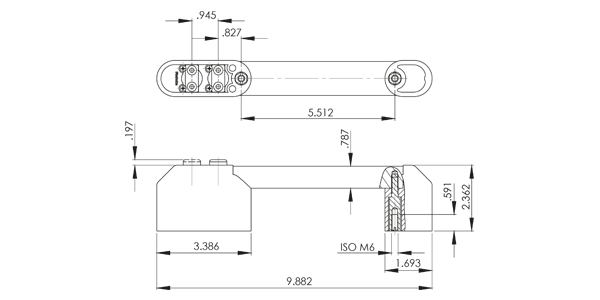

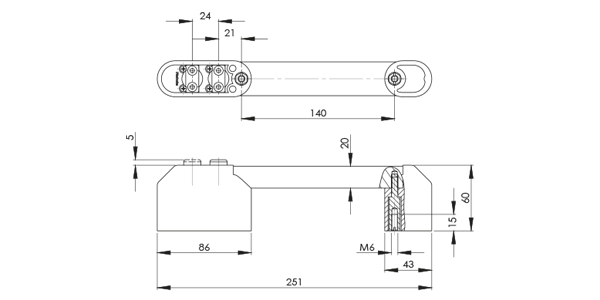

Handles FG18-P3
Compact handle for a variety of pneumatic applications.
Material and surface:
Handle shanks made of polyamide PA6, glass ball reinforced in black with fine structure. Connecting ledge made of profiled aluminum AlMgSi 0.5; glass ball blasted and natural anodized.
Function elements:
One or two mechanically operated 3/2-solenoid valves, with a robust metal housing.
V-A: Normally open with spring return.
V-B: Normally closed with spring return.
Connection:
Push In connector for Ø4 mm hose.
Note:
Other handle lengths on request.
- handle lengths customized
- button colors according to customer specifications
- further color versions

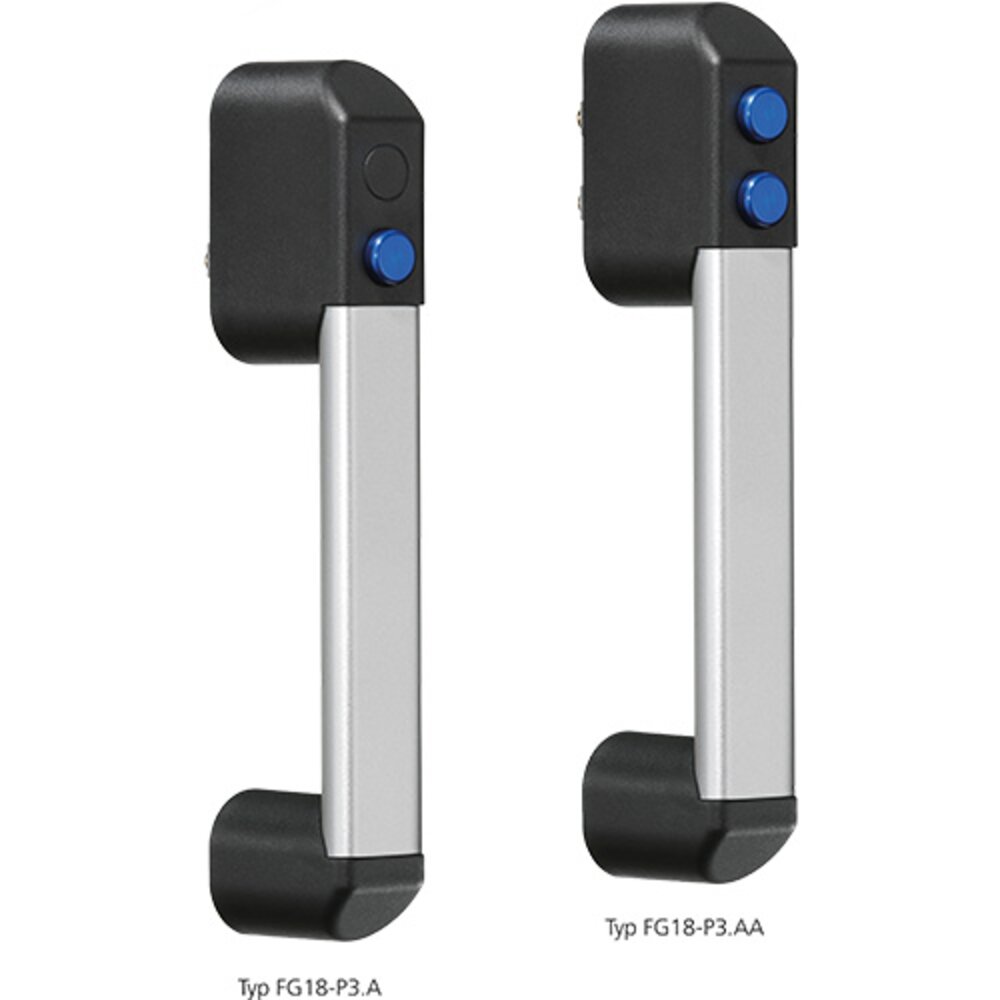

Version with 1 valve
|
Unit of measure
|
||
|---|---|---|
| Position Ventil 1 | Order-No. | |
Version with 2 valves
|
Unit of measure
|
||
|---|---|---|
| Position Ventil 1 | Position Ventil 2 | Order-No. |
| Position Ventil 1 | Position Ventil 2 | Order-No. |
|---|---|---|
| Position Ventil 1 V-A | Position Ventil 2 V-A | Order-No. FG18-P3.AA140.11 3D+CAD |
| Position Ventil 1 V-A | Position Ventil 2 V-B | Order-No. FG18-P3.AB140.11 3D+CAD |
| Position Ventil 1 V-B | Position Ventil 2 V-A | Order-No. FG18-P3.BA140.11 3D+CAD |
| Position Ventil 1 V-B | Position Ventil 2 V-B | Order-No. FG18-P3.BB140.11 3D+CAD |
