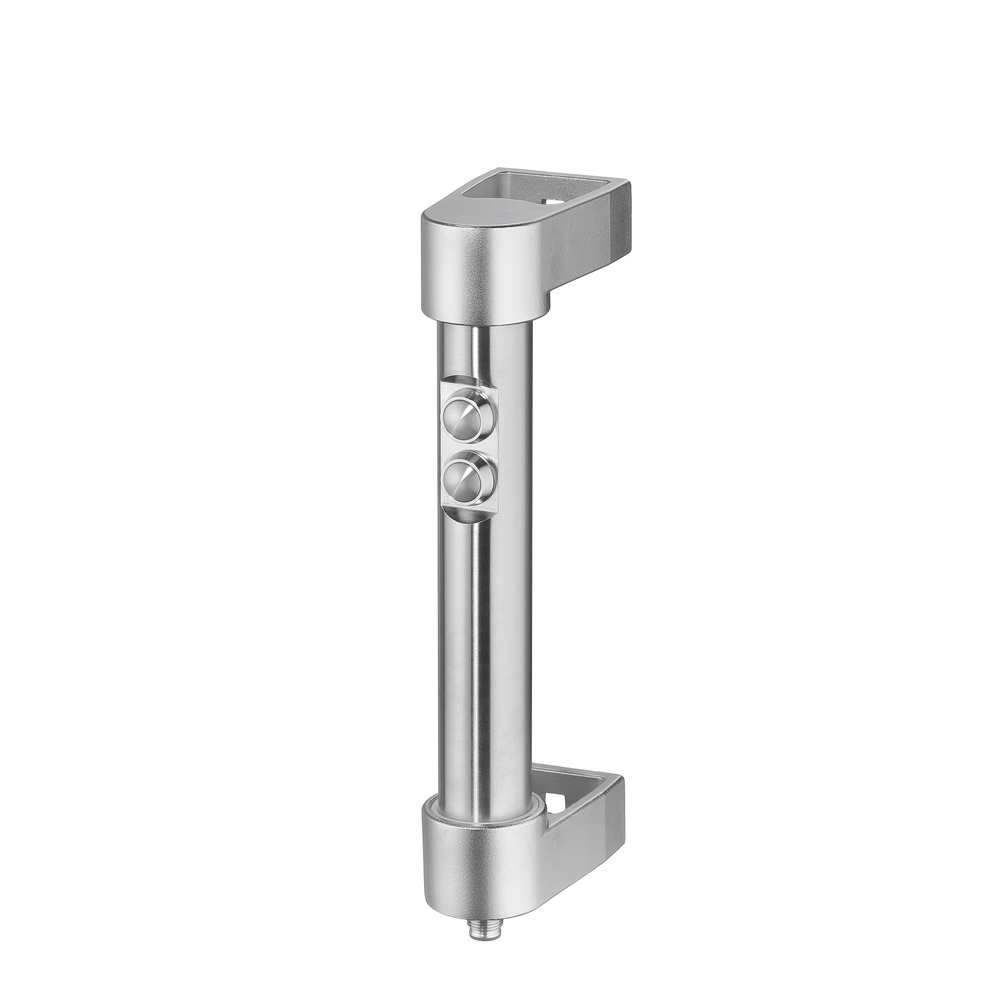

  • Stainless steel cylindrical handle with two vertically aligned push-buttons and square cutouts on grip ends, against a white background.

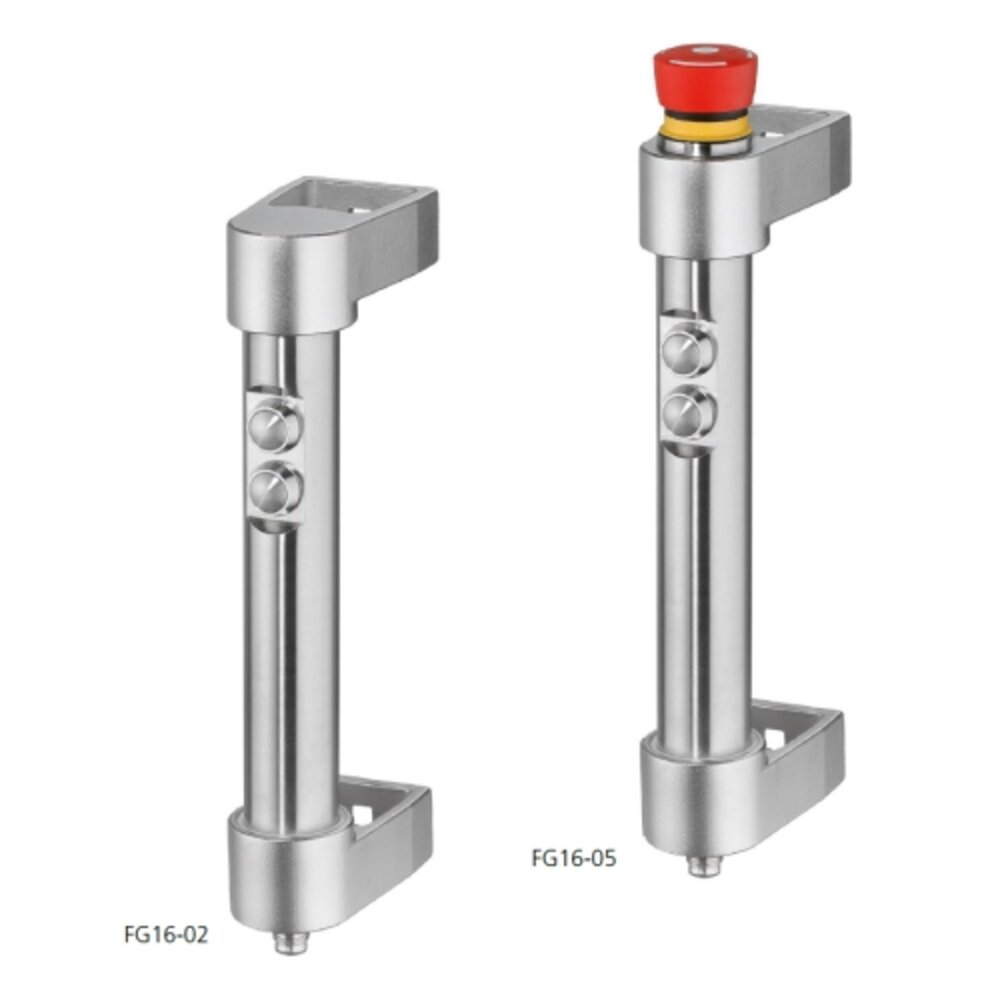

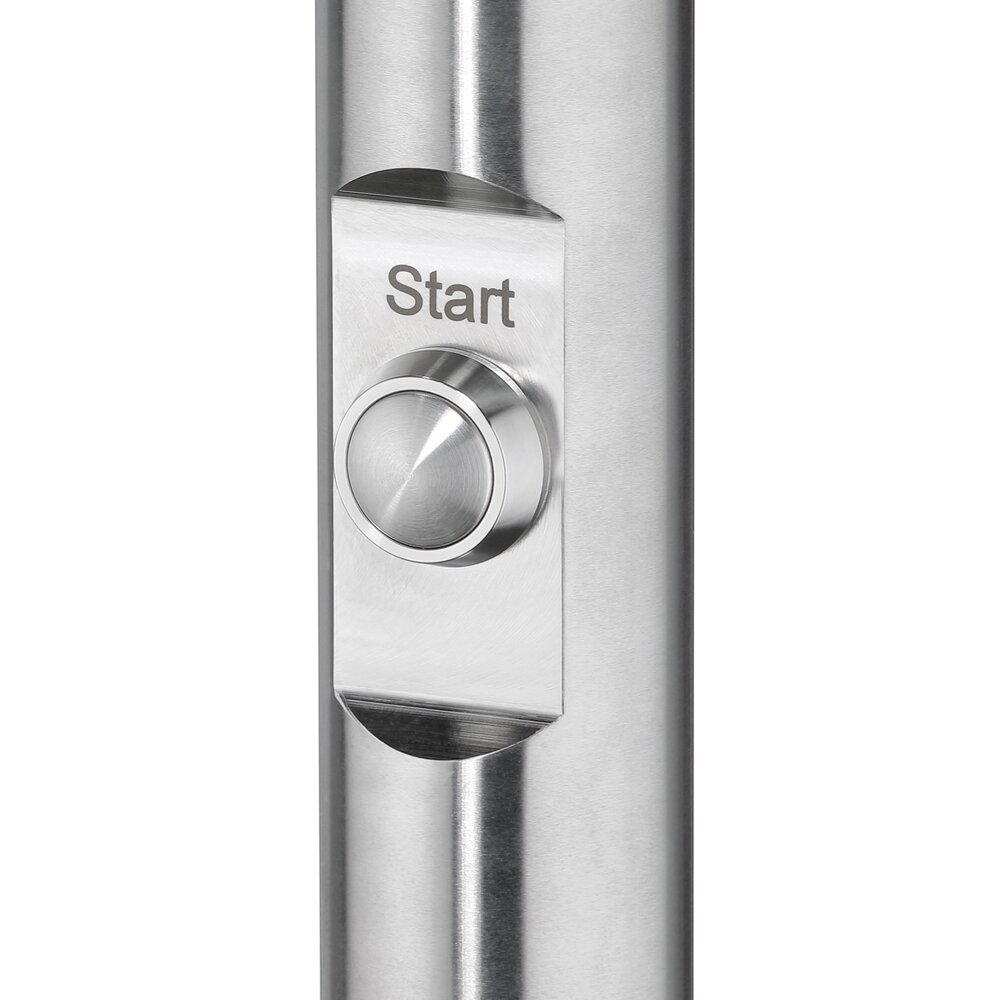

  • Close-up of a stainless steel push-button labeled 'Start' on a cylindrical metallic surface

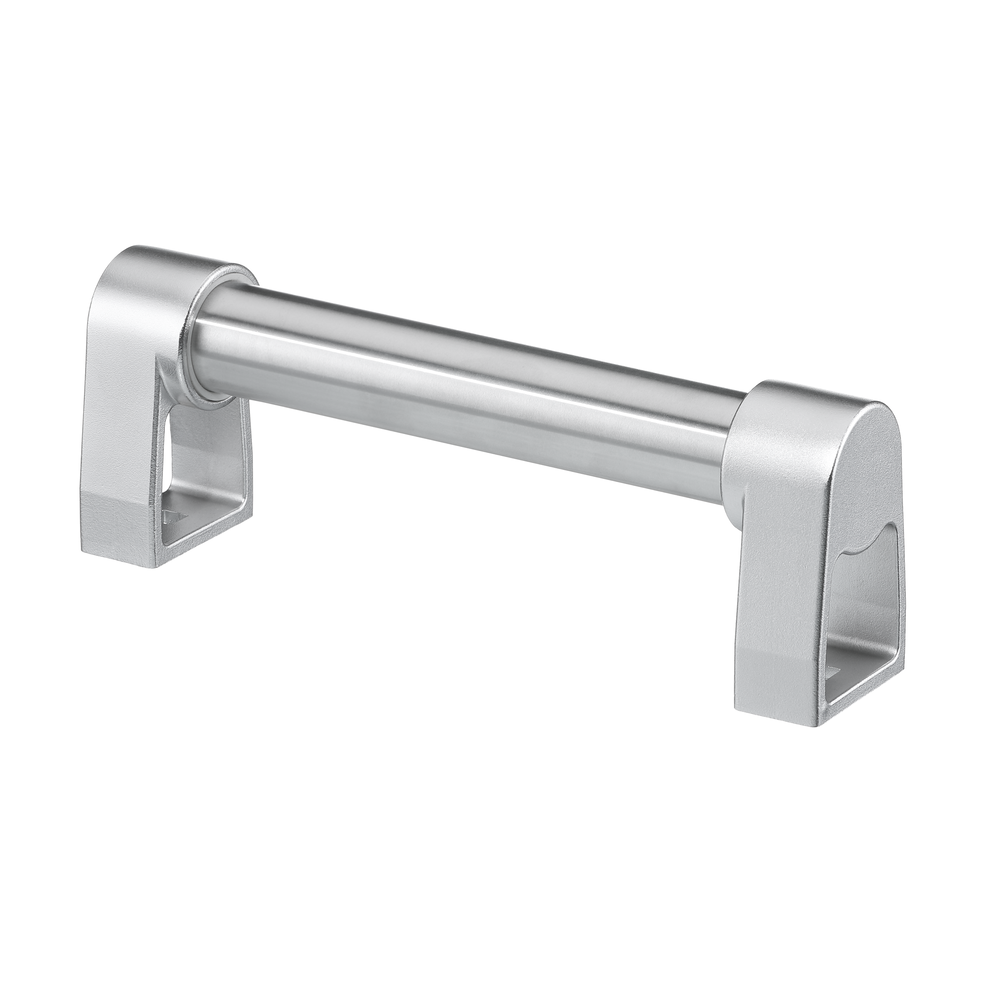

  • Silver metallic handle with cylindrical grip and trapezoidal end supports on white background
Stainless steel cylindrical handle with two vertically aligned push-buttons and square cutouts on grip ends, against a white background.
Close-up of a stainless steel push-button labeled 'Start' on a cylindrical metallic surface
Silver metallic handle with cylindrical grip and trapezoidal end supports on white background

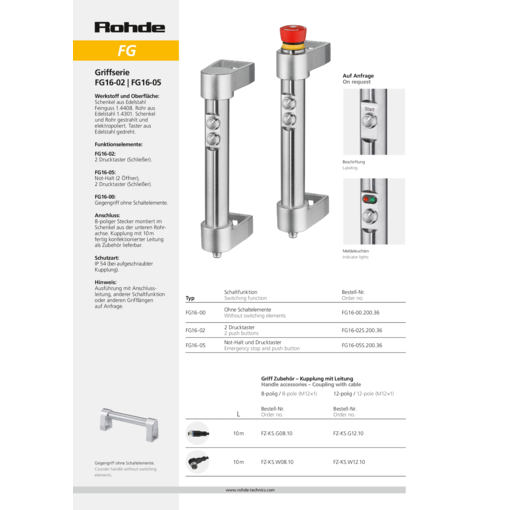

Functional handles FG16-02, FG16-05

Material and surface:
Shanks made of stainless steel precision casting 1.4408, blasted and electropolished. Tube made of stainless steel 1.4301, fine grounded. Button made of stainless steel.

Function elements:
FG16-02:
2 push-buttons (NO contact)

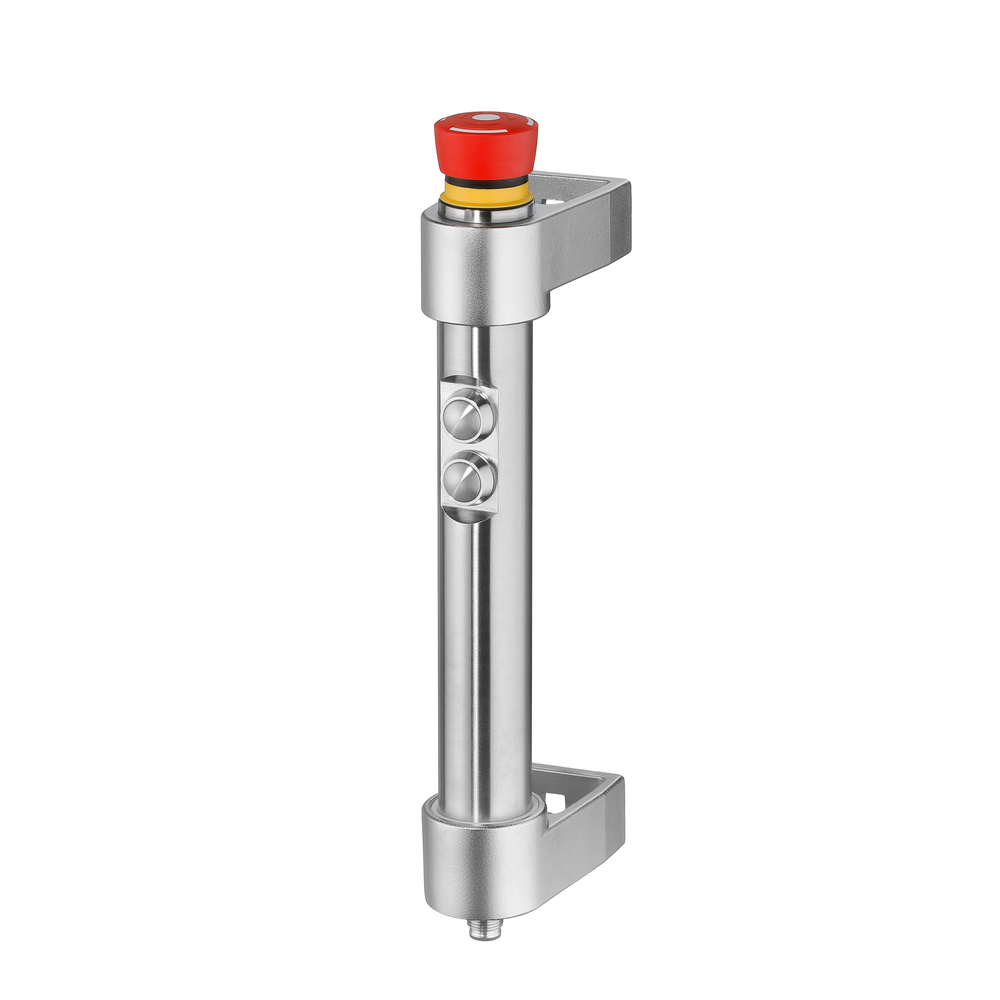

FG16-05:
Emergency-stop (2 NC contacts)
2 push-buttons (NO contact)

FG16-00:
Opposite handle without switching elements.

Connection:
8-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m ready-made cable avaiable as accessory.

Protection:
IP 54 with coupling screwed on.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities
  • labeling possible
show more show less

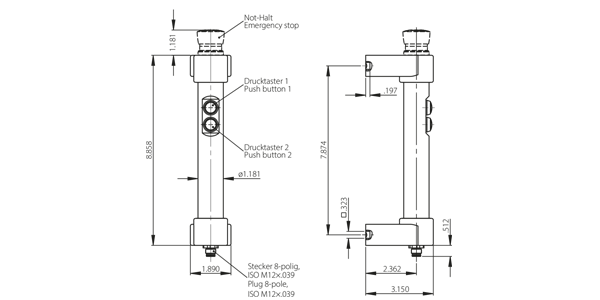

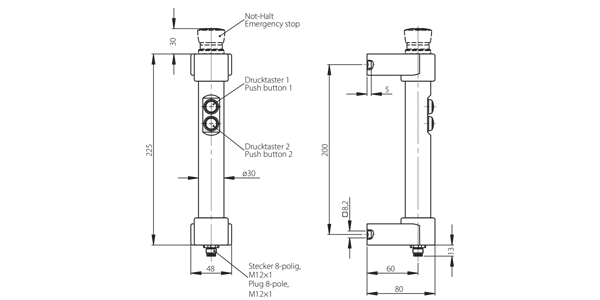

Technical drawing of handle FG16-02 showing front and side views with dimensions, push buttons, emergency stop, and connector details
Unit of measure
Product Type Description Order-No.
Product Type Description Order-No.
Product Type FG16-00 Description Counter handle without function Order-No. FG16-00.200.36 3D+CAD
Product Type FG16-02 Description 2 push buttons Order-No. FG16-02S.200.36 3D+CAD
Product Type FG16-05 Description 2 push buttons and emergency stop Order-No. FG16-05S.200.36 3D+CAD
Handle accessories
Length Coupling 8-pole (M12 x 1)
Order-No.
Length Coupling 8-pole (M12 x 1)
Order-No.
Length 10 m Coupling angled 8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 3D+CAD
Length 10 m Coupling straight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10

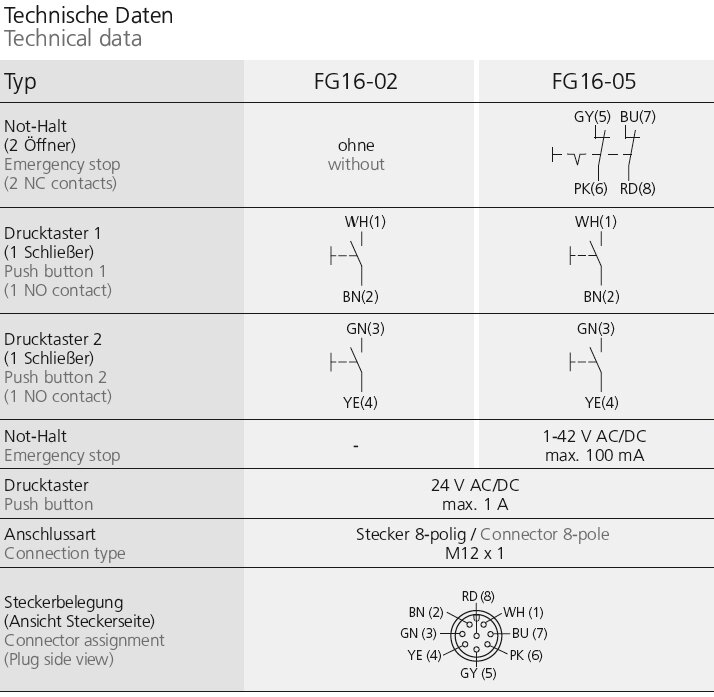

Technical data table showing comparison between FG16-02 and FG16-05 handles including emergency stop, push buttons, voltage, connection type, and pin assignment diagram.
