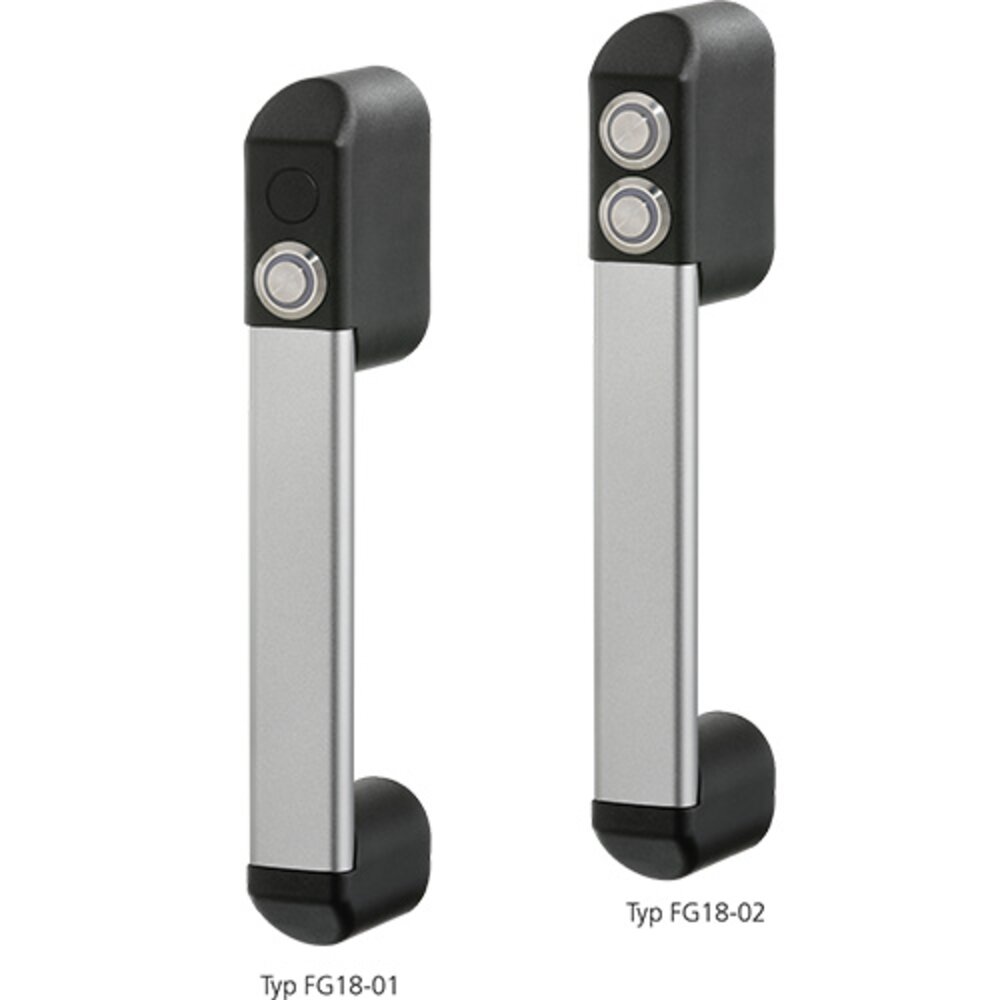

Two industrial handles FG18-01 and FG18-02 with aluminum shafts and black plastic ends, featuring push buttons with green and red ring lights
Handles FG18-01, FG18-02
FG18.pdf
PDF

Handles FG18-01, FG18-02

Material and surface:
Handle shanks made of polyamide PA6, glass ball reinforced in black with fine structure. Connecting ledge made of profiled aluminum AlMgSi 0.5; glass ball blasted and natural anodized.

Function elements:
FG18-01

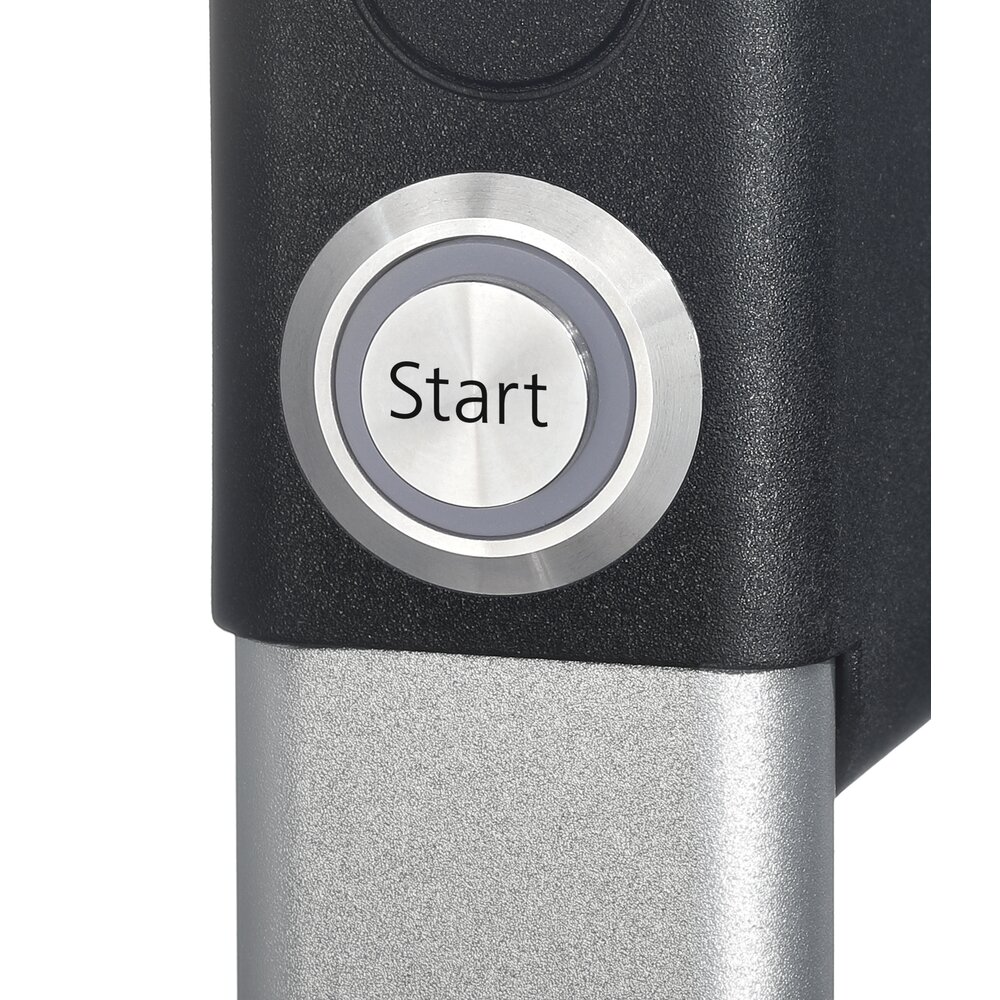

Push button (change-over contact) with green ring light.

FG18-02
Push button 1 (change-over contact) with green ring light. Push button 2 (change-over contact) with red ring light.

FG18-00
Counter-handle without operating elements.

Connection:
8-pin or 12-pin connector in the mounting surface of the shank.

Protection class:
IP 54 with coupling screwed on.

Note:
Other handle lengths and other operating elements on request.

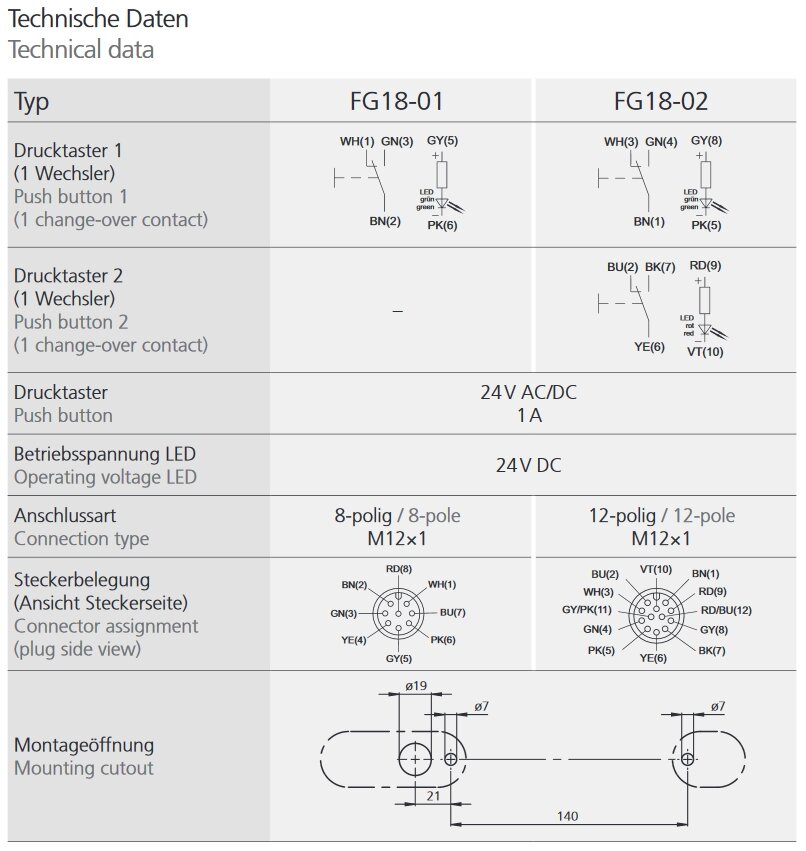

Technical data
Unit of measure
Product TypeDescription Order-No.
Product TypeFG18-00 Descriptionwithout operating elements Order-No. VM02-30.140.S11 3D+CAD
Product TypeFG18-01 Description1 Push button Order-No. FG18-01.140.11 3D+CAD
Product TypeFG18-02 Description2 Push buttons Order-No. FG18-02.140.11 3D+CAD
Zubehör
Handle accessories
LengthCoupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length10m Couplingangled 8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.W12.10
TG-R stainless steel handle with M12 x 1 plug connection and black grip Length10m Couplingstraight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.G12.10
