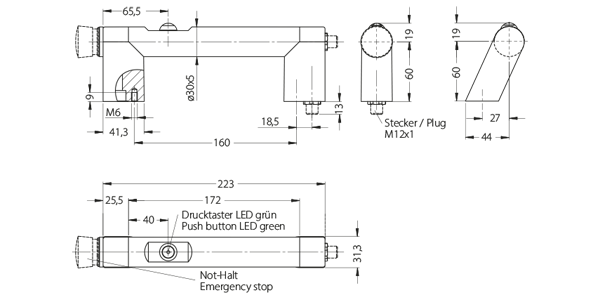

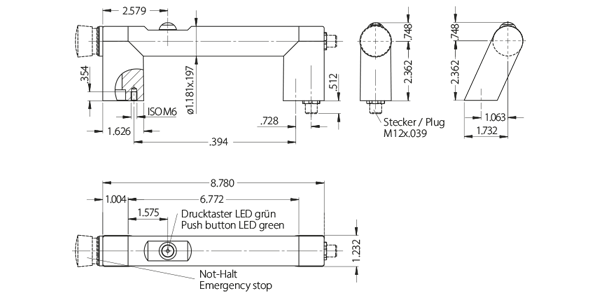

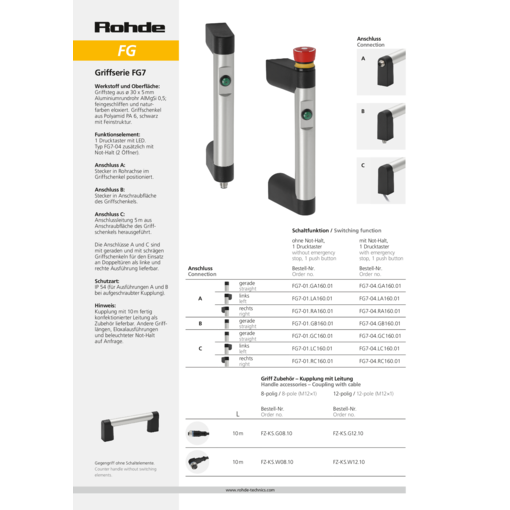

Functional handles FG7-01, FG7-04

Material and surface:
Handle ledge Ø30x5 mm aluminium round tube AlMgSi 0.5; fine ground and natural coloured anodized. Handle shanks of polyamide PA6, black with fine structure.

Function element:

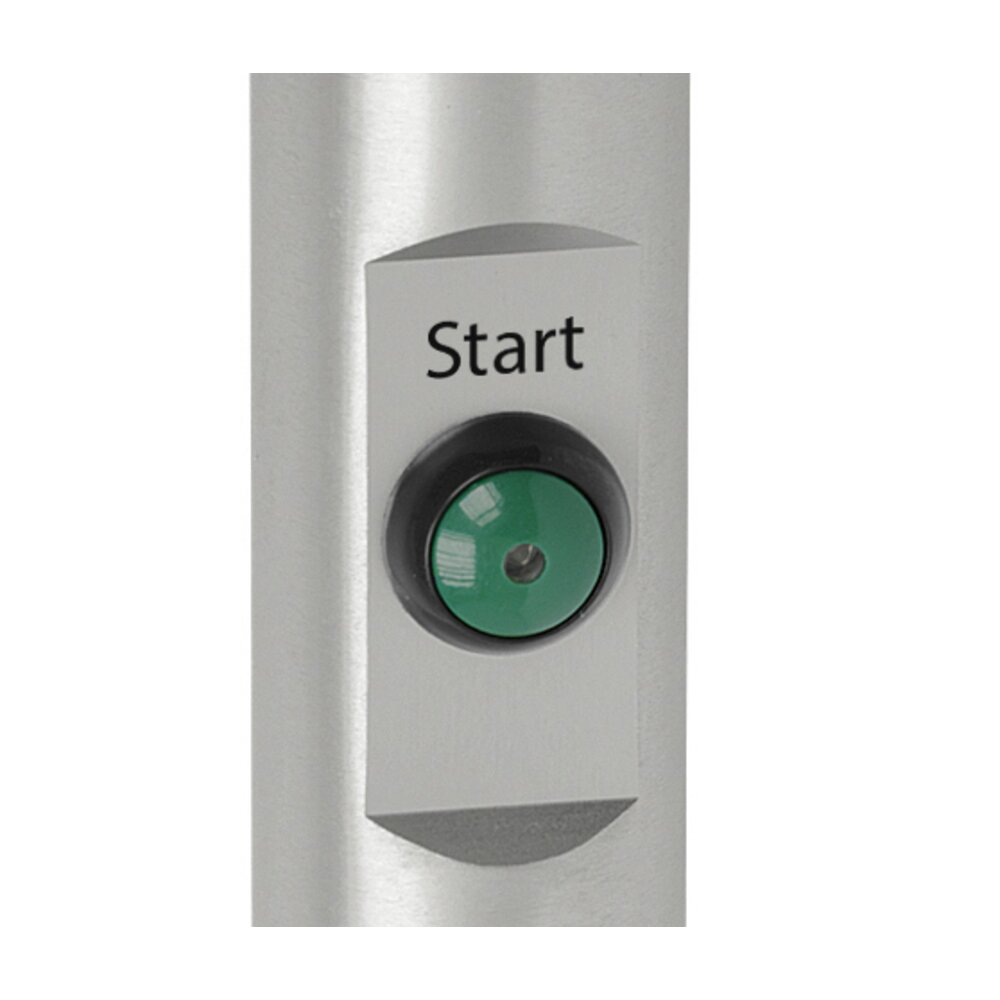

1 Push buttons with LED. Type FG7-04 with additional emergency stop (2 NC contacts).

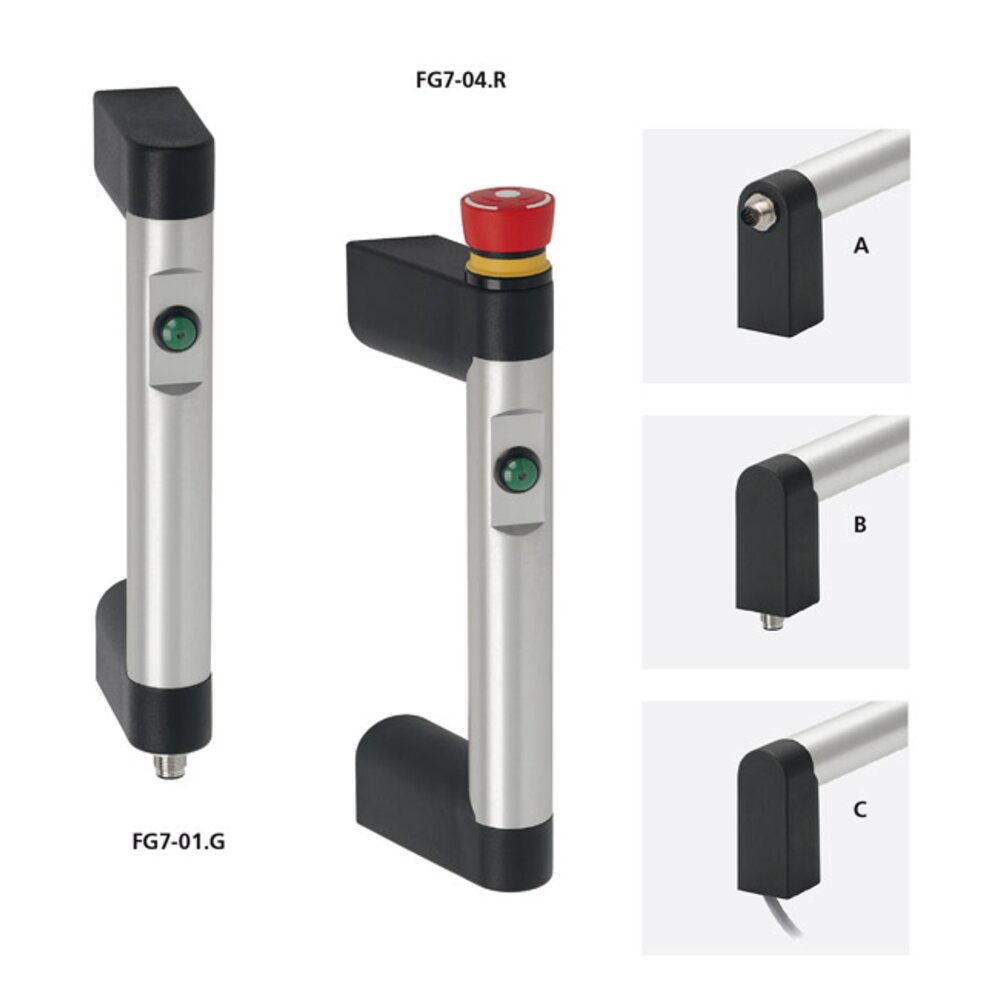

Connection A:
Coupling positioned at the tubular axle of the handle ledge in the handle shank.

Connection B:
Coupling positioned at the mounting surface of the handle shank.

Connection C:
The 5m connection cable is guided out of the mounting surface of the handle shank.

The connection A and C are available with straight and chamfer handle shanks, as left and right hand versions for use with double doors.

Protection class:
IP 54 (for the versions A and B with screwed coupling).

Note:
Coupling with 10m ready made cable available as accessories. Other handle lengths, anodized versions and illuminated emergency stop button on request.

Technical data
Unit of measure
			Connection
Product Type	Description	Handle shank version	A / Plug Order-No.	B / Plug Order-No.	C / Cable Order-No.
Product TypeFG7-01	Description1 push button	Handle shank versionleft	A / Plug Order-No. FG7-01.LA160.01 3D+CAD	B / Plug Order-No. —	C / Cable Order-No. FG7-01.LC160.01 3D+CAD
Product TypeFG7-01	Description1 push button	Handle shank versionright	A / Plug Order-No. FG7-01.RA160.01 3D+CAD	B / Plug Order-No. —	C / Cable Order-No. FG7-01.RC160.01 3D+CAD
Product TypeFG7-01	Description1 push button	Handle shank versionstraight	A / Plug Order-No. FG7-01.GA160.01 3D+CAD	B / Plug Order-No. FG7-01.GB160.01 3D+CAD	C / Cable Order-No. FG7-01.GC160.01 3D+CAD
Product TypeFG7-04	Description1 push button and emergency stop	Handle shank versionleft	A / Plug Order-No. FG7-04.LA160.01 3D+CAD	B / Plug Order-No. —	C / Cable Order-No. FG7-04.LC160.01 3D+CAD
Product TypeFG7-04	Description1 push button and emergency stop	Handle shank versionright	A / Plug Order-No. FG7-04.RA160.01 3D+CAD	B / Plug Order-No. —	C / Cable Order-No. FG7-04.RC160.01 3D+CAD
Product TypeFG7-04	Description1 push button and emergency stop	Handle shank versionstraight	A / Plug Order-No. FG7-04.GA160.01 3D+CAD	B / Plug Order-No. FG7-04.GB160.01 3D+CAD	C / Cable Order-No. FG7-04.GC160.01 3D+CAD

Zubehör
	Handle accessories
Coupling	8-pole (M12 x 1) Order-No.	12-pole (M12 x 1) Order-No.
Couplingangled	8-pole (M12 x 1) Order-No. FZ-KS.W08.10	12-pole (M12 x 1) Order-No. FZ-KS.W12.10
Couplingstraight / axial	8-pole (M12 x 1) Order-No. FZ-KS.G08.10	12-pole (M12 x 1) Order-No. FZ-KS.G12.10 3D+CAD
