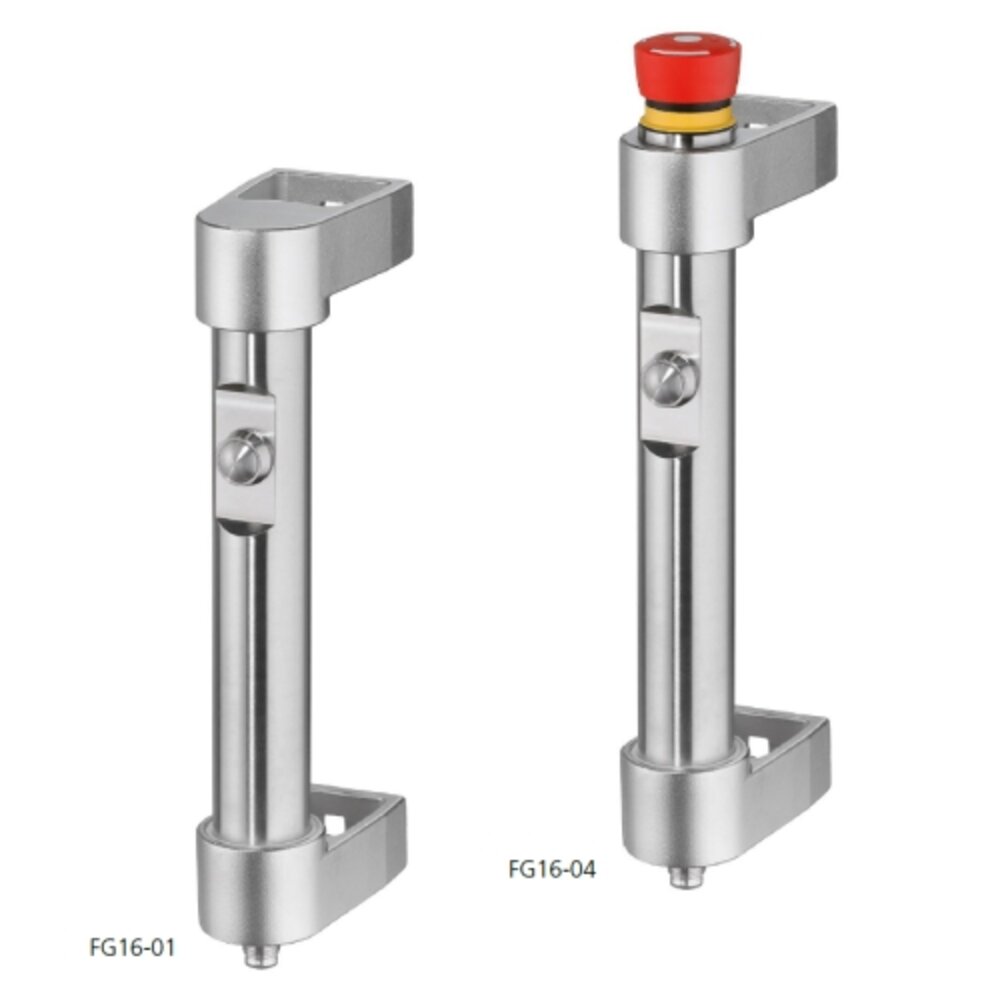

Two stainless steel industrial handles labeled FG16-01 and FG16-04; FG16-01 has a push-button, FG16-04 has a red emergency stop button and a push-button

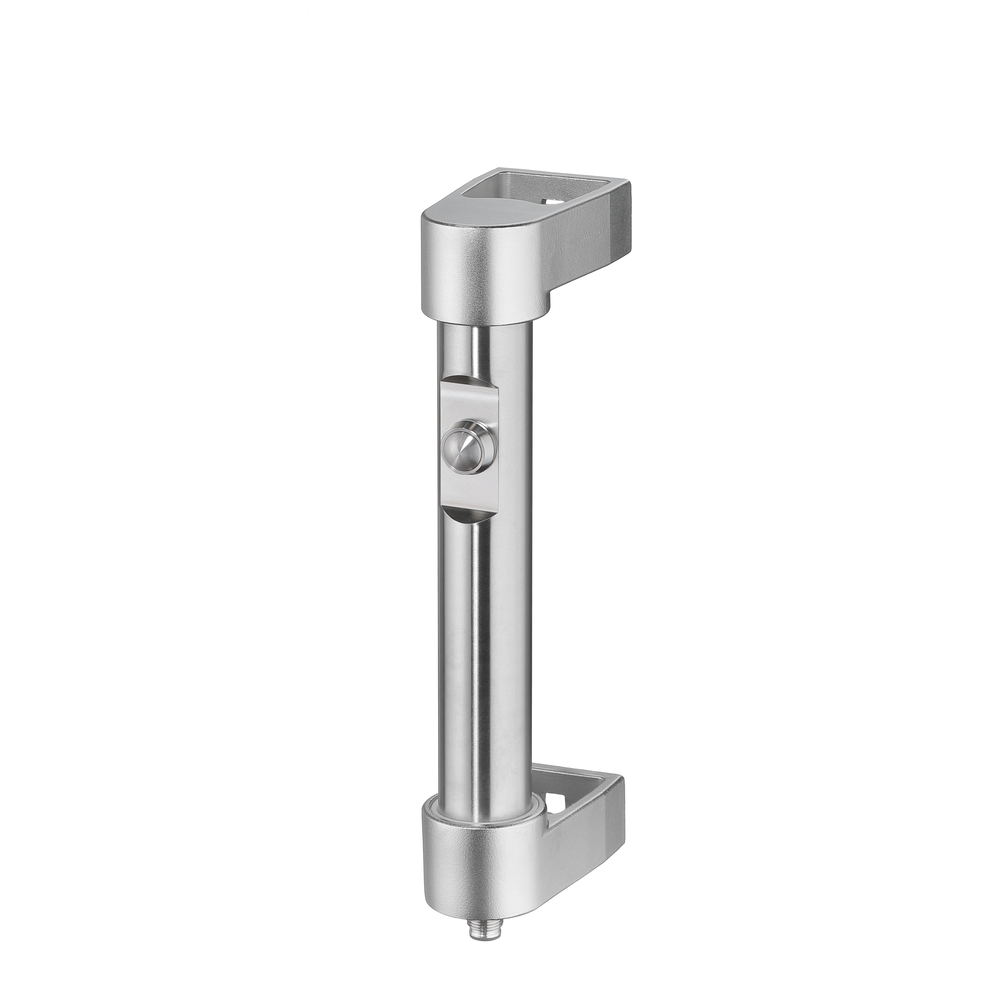

Stainless steel industrial handle with a cylindrical shank and rectangular top and bottom ends, featuring a round push-button on a rectangular plate.
Close-up of a stainless steel push-button labeled 'Start' on a cylindrical metallic surface
Silver metallic handle with cylindrical grip and trapezoidal end supports on white background

Functional handles FG16-01, FG16-04

Material and surface:
Shanks made of stainless steel precision casting 1.4408, blasted and electropolished. Tube made of stainless steel 1.4301, fine grounded. Button made of stainless steel.

Function elements:
FG16-01:
Push-button (NO contact)

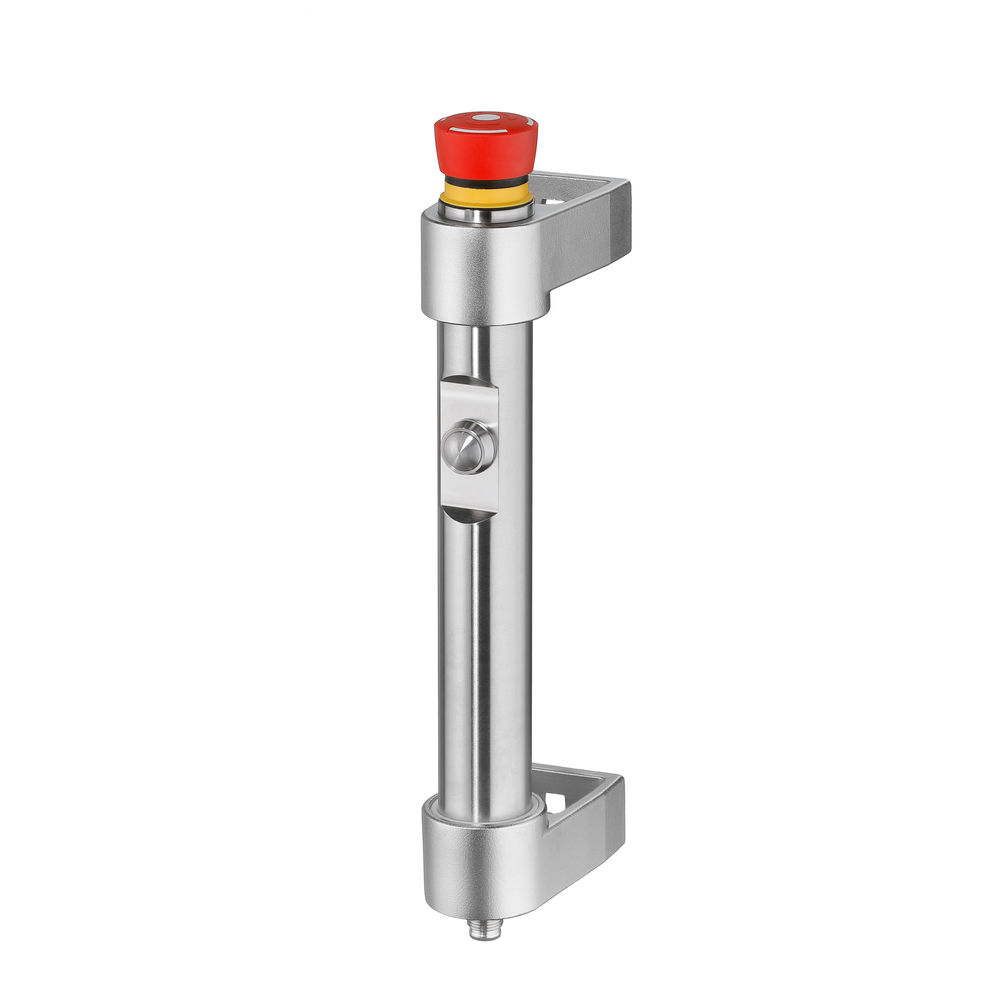

FG16-04:
Emergency-stop (2 NC contacts)
Push-button (NO contact)

FG16-00:
Opposite handle without switching elements.

Connection:
8-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m ready-made cable avaiable as accessory.

Protection:
IP 54 with coupling screwed on.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities
  • labeling possible
show more show less

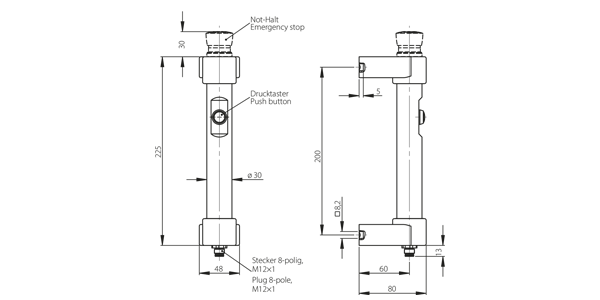

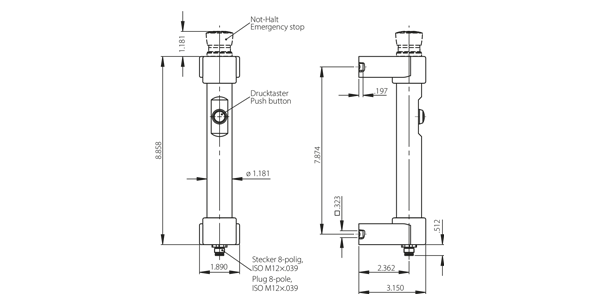

Technical drawing showing front and side views of industrial handles FG16-01 and FG16-04 with dimensions and labeled push-button, emergency stop, and plug connection.
Unit of measure
Product Type Description Order-No.
Product Type Description Order-No.
Product Type FG16-00 Description Counter handle without function Order-No. FG16-00.200.36 3D+CAD
Product Type FG16-01 Description 1 push button Order-No. FG16-01S.200.36 3D+CAD
Product Type FG16-04 Description 1 push button and emergency stop Order-No. FG16-04S.200.36 3D+CAD
Handle accessories
Length Coupling 8-pole (M12 x 1)
Order-No.
Length Coupling 8-pole (M12 x 1)
Order-No.
Length 10 m Coupling angled 8-pole (M12 x 1)
Order-No. FZ-KS.W08.10
Length 10 m Coupling straight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10
