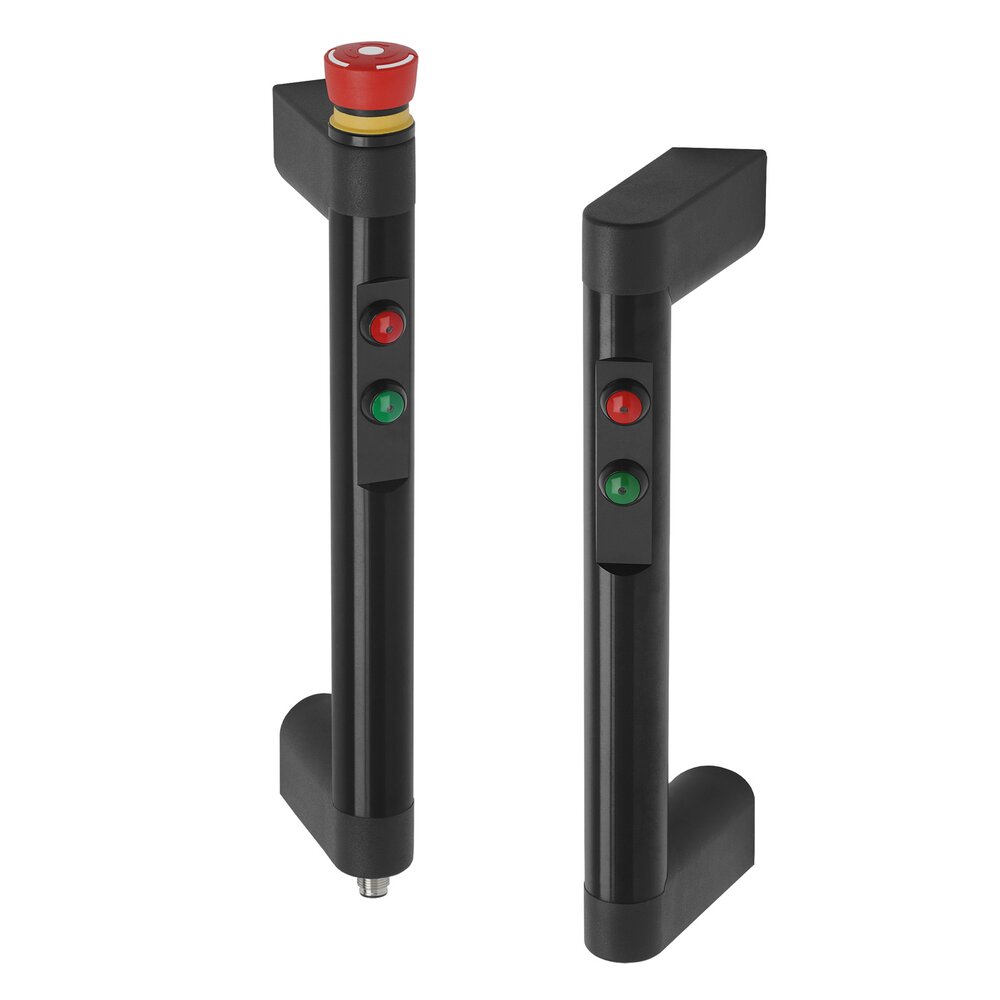

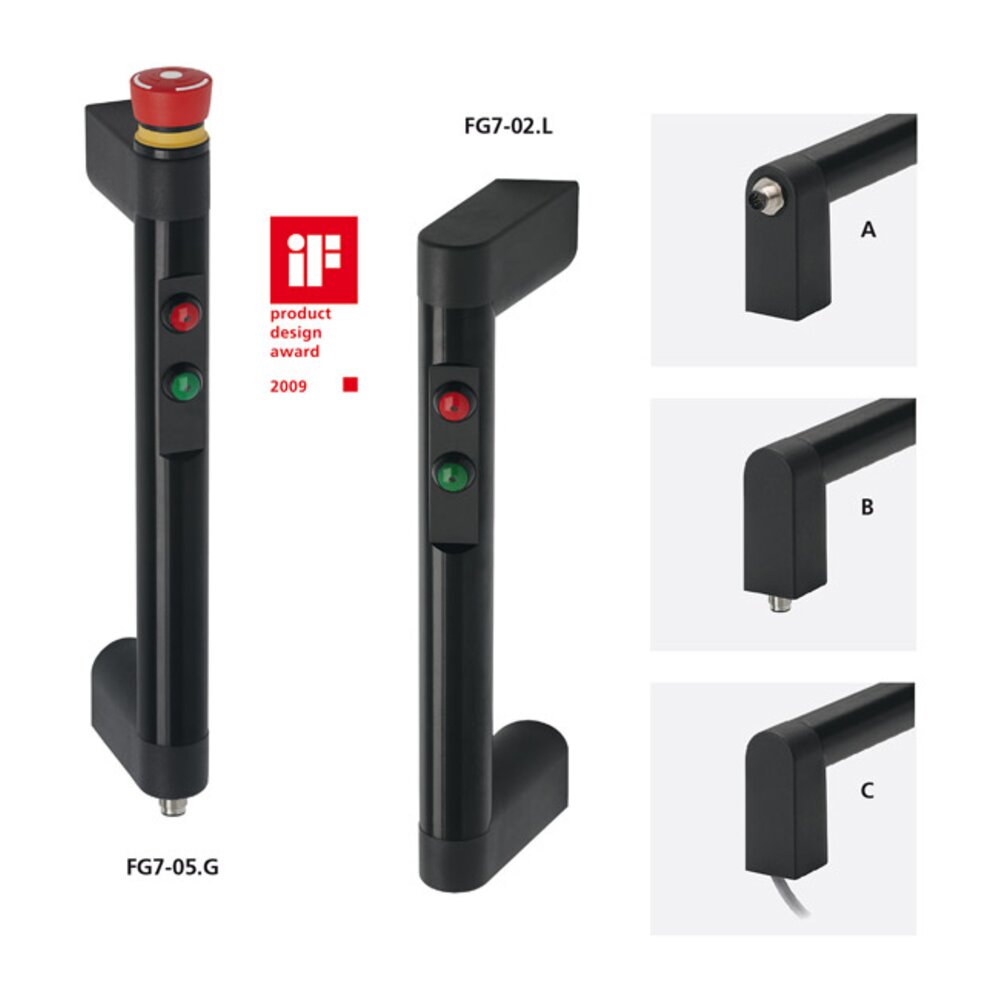

  • Black handles FG7-02 and FG7-05 with red and green push buttons; FG7-05 includes a red emergency stop button. Close-ups of three coupling types labeled A, B, and C.

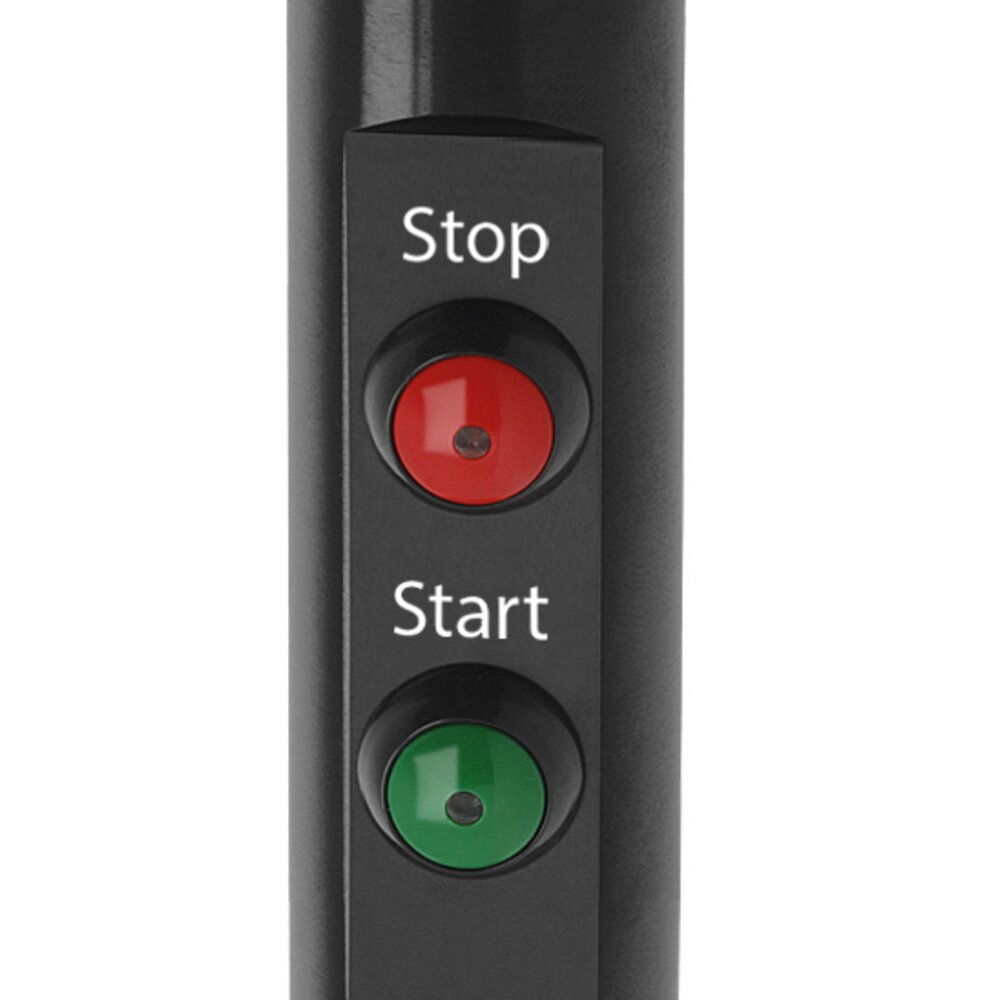

  • Black handle shank with two push buttons, red Stop button above and green Start button below, each labeled clearly.
Black handles FG7-02 and FG7-05 with red and green push buttons; FG7-05 includes a red emergency stop button. Close-ups of three coupling types labeled A, B, and C.
Black handle shank with two push buttons, red Stop button above and green Start button below, each labeled clearly.

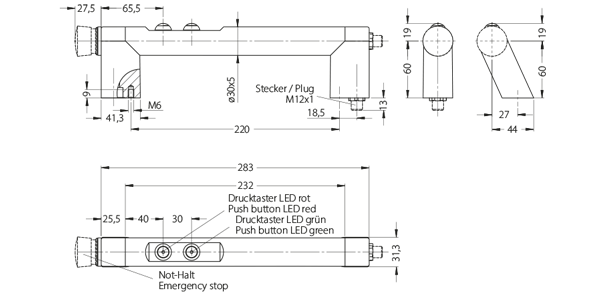

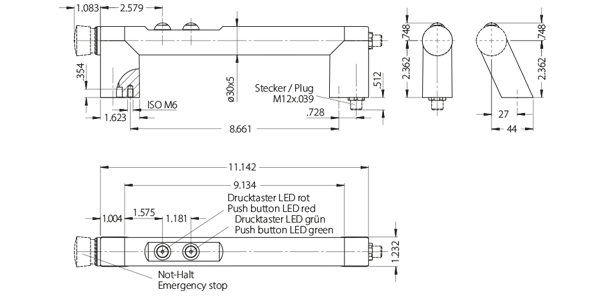

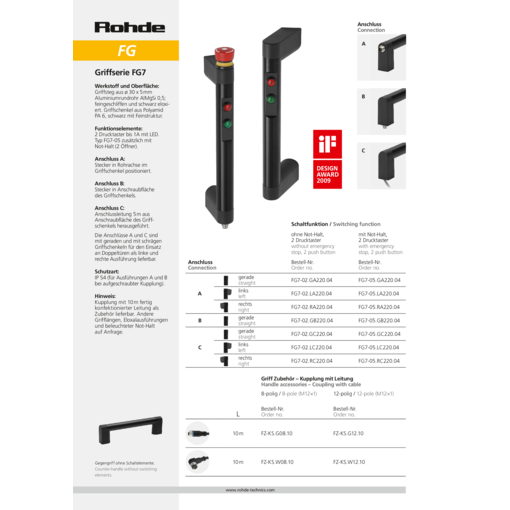

Functional handles FG7-02, FG7-05

Material and surface:
Handle ledge Ø30x5 mm aluminium round tube AlMgSi 0.5; fine ground and black anodized. Handle shanks of polyamide PA6, black with fine structure.

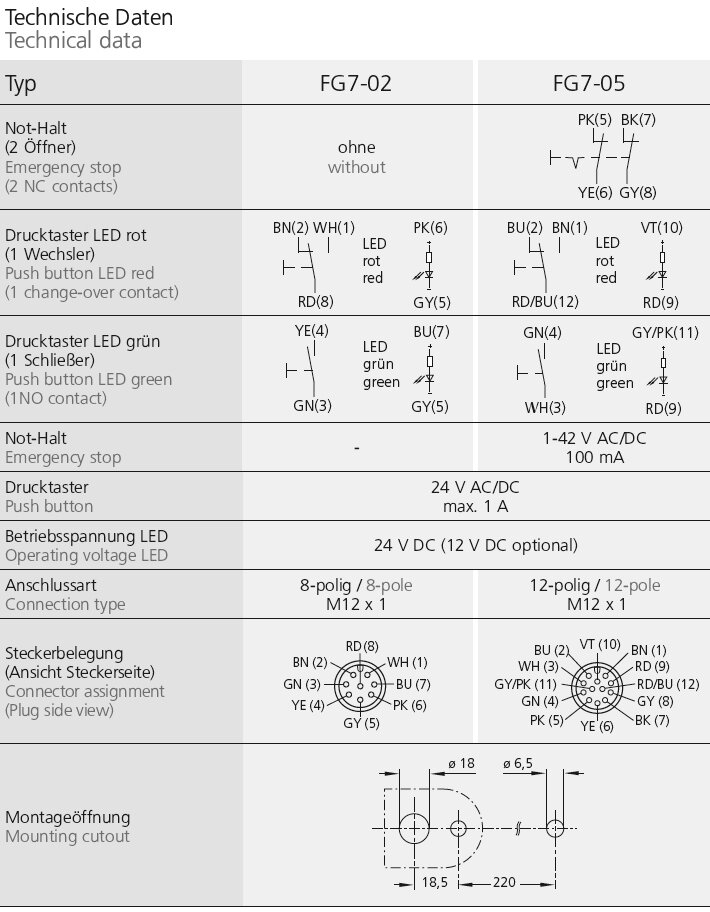

Function elements:
2 Push buttons up to 1A with LED. Type FG7-05 with additional emergency stop (2 NC contacts).

Connection A:
Coupling positioned at the tubular axle of the handle ledge in the handle shank.

Connection B:
Coupling positioned in the mounting surface of the handle shank.

Connection C:
The 5m connection cable is guided out of the mounting surface of the handle shank.

The connection A and C are available with straight and chamfer handle shanks, as left and right-hand versions for use with double doors.

Protection class:
IP 54 (for the connecting A and B with screwed coupling).

Note:
Coupling with 10m ready made cable available as accessories. Other handle lengths, anodized versions and illuminated emergency stop button on request.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities
  • labeling possible
  • further color versions
show more show less
Unit of measure
Connection
Product Type Description Handle shank version A / Plug
Order-No. 		B / Plug
Order-No. 		C / Cable
Order-No.
Product Type Description Handle shank version A / Plug
Order-No. 		B / Plug
Order-No. 		C / Cable
Order-No.
Product Type FG7-02 Description 2 push buttons Handle shank version left A / Plug
Order-No. FG7-02.LA220.04 3D+CAD 		B / Plug
Order-No. — 		C / Cable
Order-No. FG7-02.LC220.04 3D+CAD
Product Type FG7-02 Description 2 push buttons Handle shank version right A / Plug
Order-No. FG7-02.RA220.04 3D+CAD 		B / Plug
Order-No. — 		C / Cable
Order-No. FG7-02.RC220.04 3D+CAD
Product Type FG7-02 Description 2 push buttons Handle shank version straight A / Plug
Order-No. FG7-02.GA220.04 3D+CAD 		B / Plug
Order-No. FG7-02.GB220.04 3D+CAD 		C / Cable
Order-No. FG7-02.GC220.04 3D+CAD
Product Type FG7-05 Description 2 push buttons and emergency stop Handle shank version left A / Plug
Order-No. FG7-05.LA220.04 3D+CAD 		B / Plug
Order-No. — 		C / Cable
Order-No. FG7-05.LC220.04 3D+CAD
Product Type FG7-05 Description 2 push buttons and emergency stop Handle shank version right A / Plug
Order-No. FG7-05.RA220.04 3D+CAD 		B / Plug
Order-No. — 		C / Cable
Order-No. FG7-05.RC220.04 3D+CAD
Product Type FG7-05 Description 2 push buttons and emergency stop Handle shank version straight A / Plug
Order-No. FG7-05.GA220.04 3D+CAD 		B / Plug
Order-No. FG7-05.GB220.04 3D+CAD 		C / Cable
Order-No. FG7-05.GC220.04 3D+CAD
Handle accessories
Length Coupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length Coupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length 10 m Coupling angled 8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.W12.10
Length 10 m Coupling straight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.G12.10
