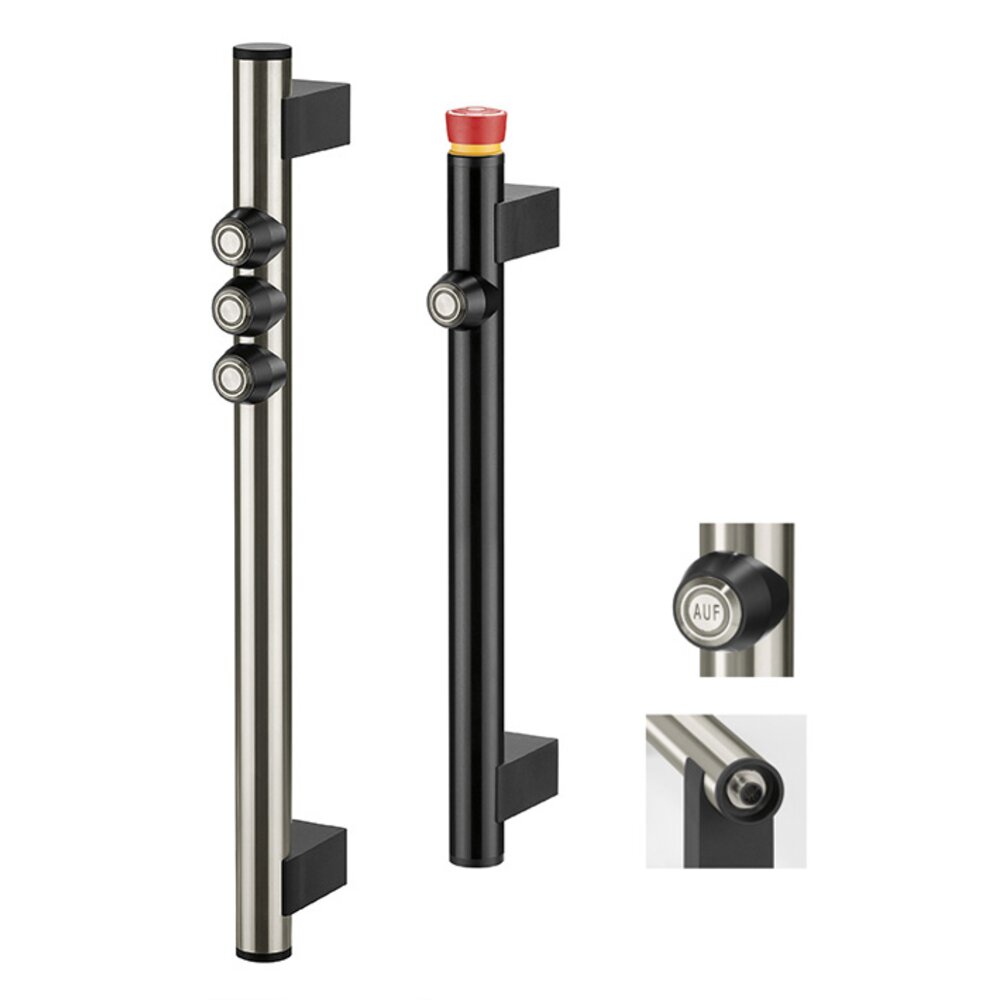

  • Two FG14 functional handles, one in stainless steel with three push buttons, the other black with an emergency stop and one push button, shown with mounting brackets and close-up views of push buttons and handle mounting.
Two FG14 functional handles, one in stainless steel with three push buttons, the other black with an emergency stop and one push button, shown with mounting brackets and close-up views of push buttons and handle mounting.

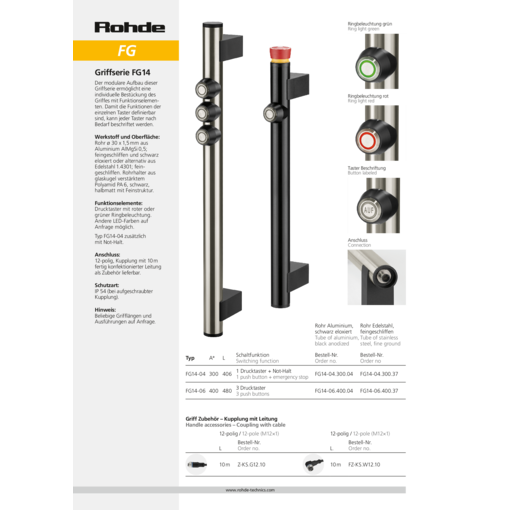

Functional handles FG14

The modular design of this handle series allows an individual assembly of the handle with function elements. In order to define the functions of the separate operating devices, each button can be labeled on demand.

Material and surface:
Tube Ø30x1.5 mm AlMgSi 0,5; fine ground and black anodized or alternatively made of stainless steel, material no. 1.4301; fine ground. Tube holders of glassball reinforced polyamid PA6, black, half-matt with fine structure.

Function elements:
Push buttons with red resp. green illuminated ring. Other LED colours on request.

Connection:
12-pole, coupling with 10m ready made cable available as accessory.

Protection class:
IP 54 (with screwed coupling).

Note:
Other handle lengths and designs on request.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities
  • labeling possible
  • further color versions
show more show less

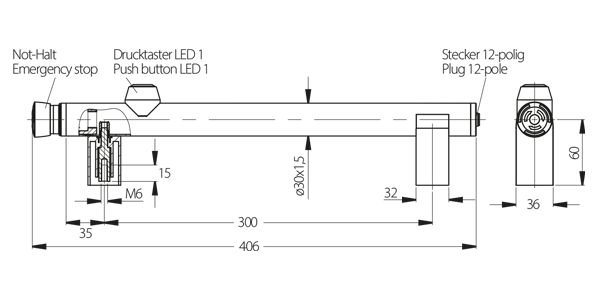

FG14-04

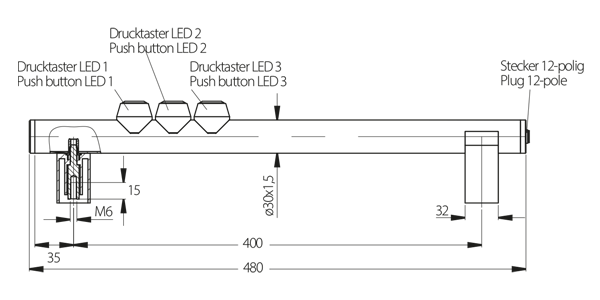

FG14-06

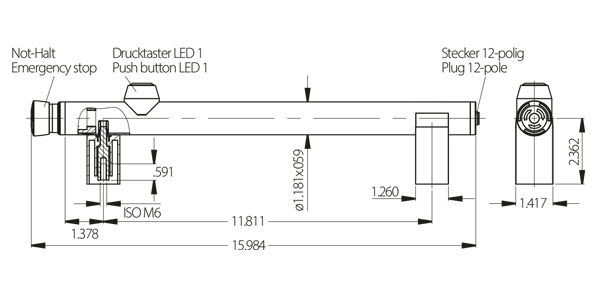

FG14-04

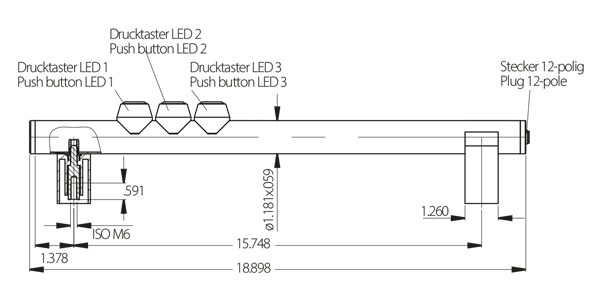

Side view technical drawing of FG14 handle with three push buttons with LED indicators and a 12-pole plug connection, including detailed measurements in inches.
Unit of measure
Type
Product Type Description A L Anodized aluminum black
Order-No. 		Polished stainless steel
Order-No.
Product Type Description A L Anodized aluminum black
Order-No. 		Polished stainless steel
Order-No.
Product Type FG14-04 Description 1 push button and emergency stop A 300 L 406 Anodized aluminum black
Order-No. FG14-04.300.04 3D+CAD 		Polished stainless steel
Order-No. FG14-04.300.37 3D+CAD
Product Type FG14-06 Description 3 push buttons A 400 L 480 Anodized aluminum black
Order-No. FG14-06.400.04 3D+CAD 		Polished stainless steel
Order-No. FG14-06.400.37 3D+CAD
Handle accessories
Length Coupling 12-pole (M12 x 1)
Order-No.
Length Coupling 12-pole (M12 x 1)
Order-No.
Close-up view of a 12-pole round electrical connector with a black cable attached Length 10 m Coupling angled 12-pole (M12 x 1)
Order-No. FZ-KS.W12.10
Black cylindrical electrical connector with silver metallic coupling and textured grip on a white background Length 10 m Coupling straight / axial 12-pole (M12 x 1)
Order-No. FZ-KS.G12.10

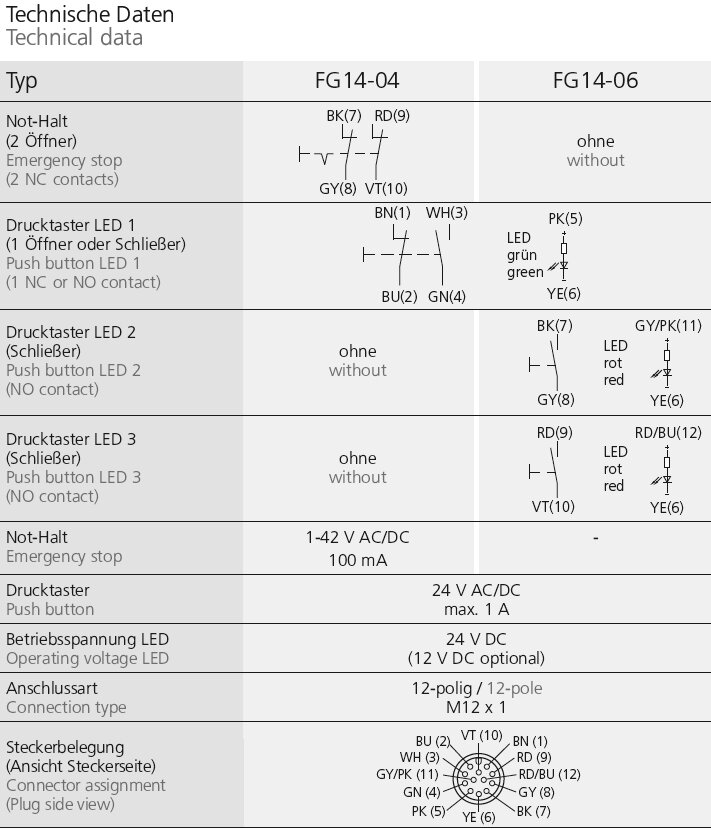

Technical data table describing electrical and mechanical specifications of FG14 series functional handles, including emergency stop features, push button LEDs, voltage ratings, and connector pin assignments.
