Functional handles FG10

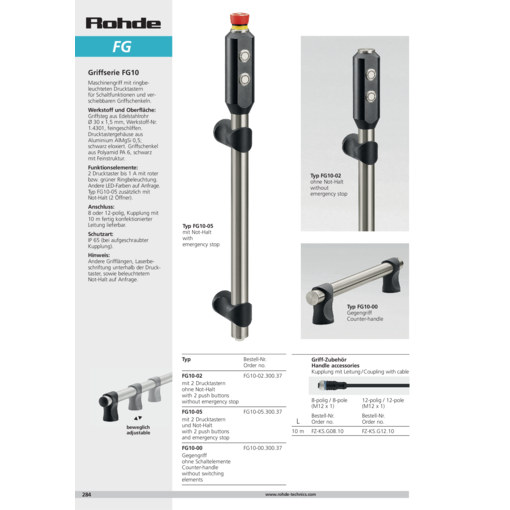

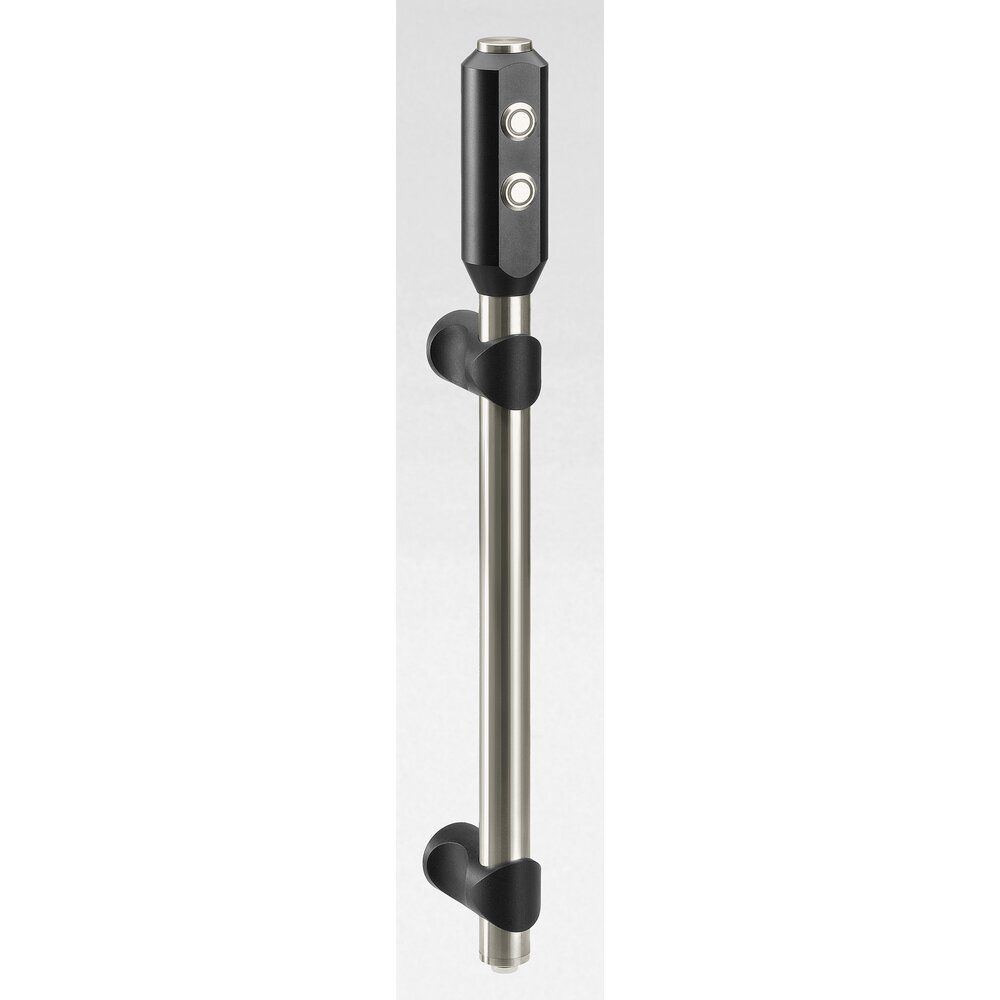

Machine handle with ringilluminated push buttons for switching functions and adjustable handle shanks.
Material and surface:
Handle ledge Ø30x1.5 mm made of stainless steel tube, material no. 1.4301, fine ground. Housing of pushbuttons made of aluminium AlMgSi 0.5; black anodized. Handle shanks made of polyamide PA6, black with fine structure.
Function elements:

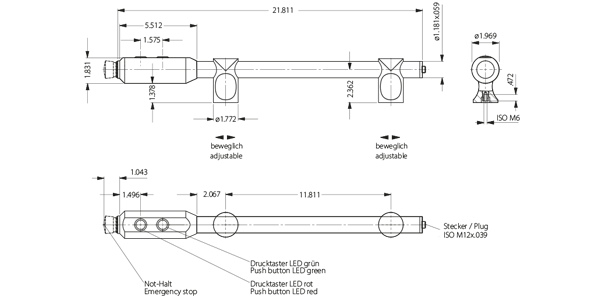

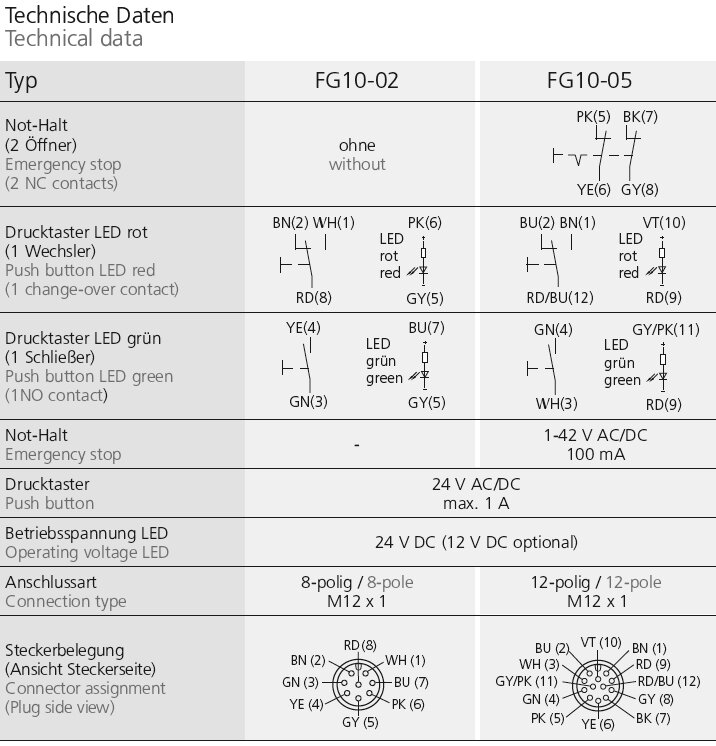

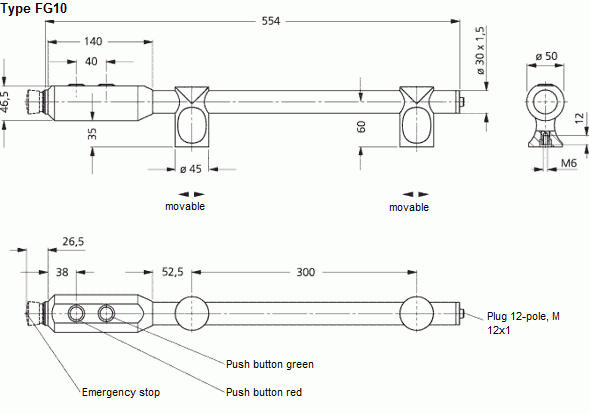

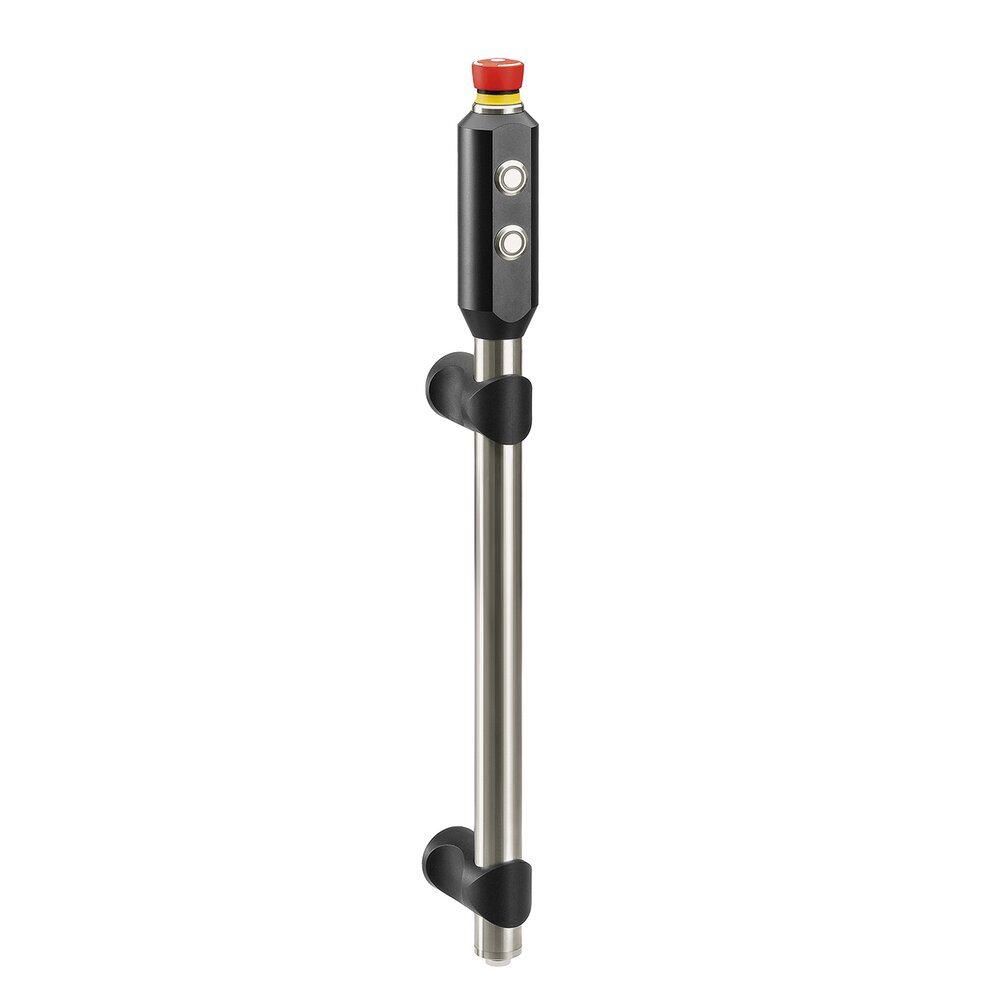

2 push buttons up to 1A and red or green illuminated ring. Other LED colours on request. Type FG10-05 with additional emergency stop (2 NC contacts).
Protection class:
IP 54 with screwed on coupling.
Connection:
8 or 12-pole coupling available with 10m ready made cable.
Note:

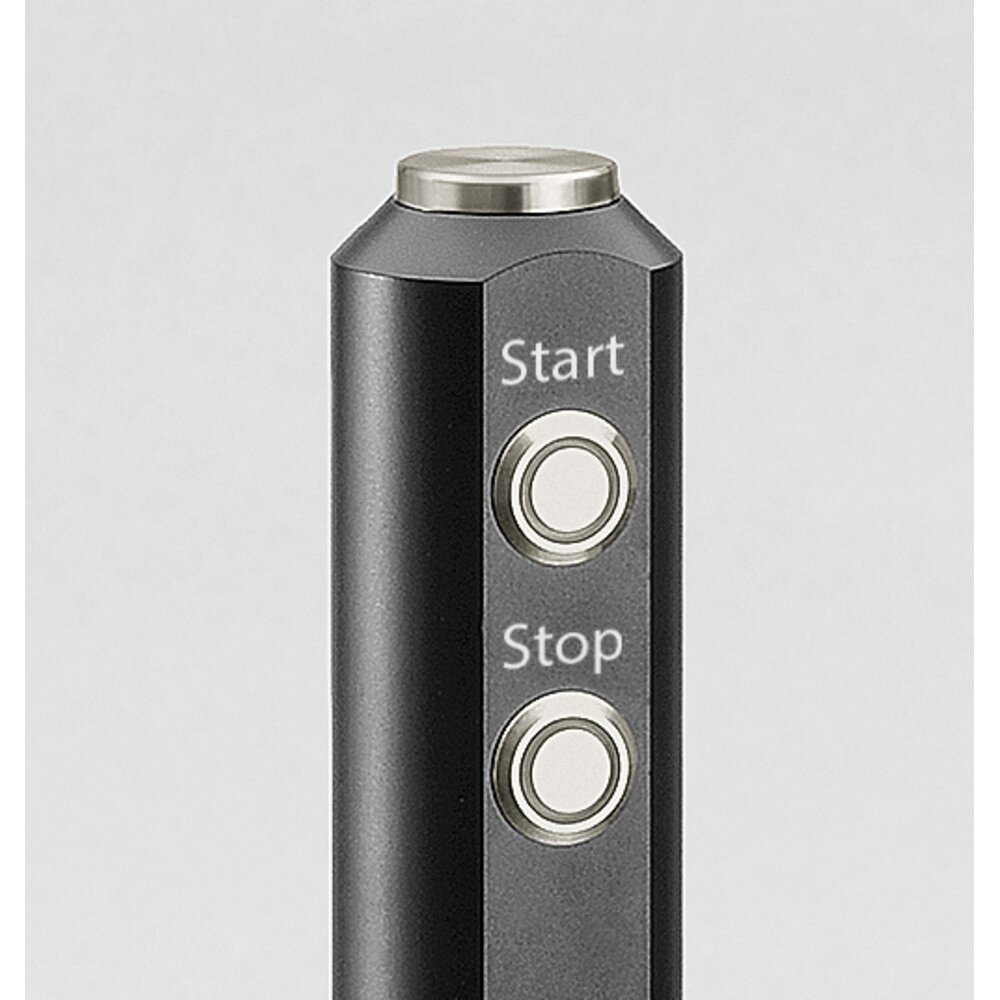

Other handle lengths, laserinscription below the push buttons and illuminated emergency stop on request.
- handle lengths customized
- button assignment according to customer requirements
- button / LED colors according to customer specifications
- further connection possibilities
- labeling possible
- further color versions
|
Unit of measure
|
||
|---|---|---|
| Product Type | Description | Order-No. |
| Product Type | Description | Order-No. |
|---|---|---|
| Product Type FG10-00 | Description Counter handle without function | Order-No. FG10-00.300.37 3D+CAD |
| Product Type FG10-02 | Description with 2 push buttons, without emergency stop button | Order-No. FG10-02.300.37 3D+CAD |
| Product Type FG10-05 | Description with 2 push buttons, with emergency stop button | Order-No. FG10-05.300.37 3D+CAD |
| Handle accessories | ||||
|---|---|---|---|---|
| Length | Coupling |
8-pole (M12 x 1)
Order-No. |
12-pole (M12 x 1)
Order-No. |
|
| Length | Coupling |
8-pole (M12 x 1)
Order-No. |
12-pole (M12 x 1)
Order-No. |
|
|---|---|---|---|---|
|
Length 10 m | Coupling angled |
8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 |
12-pole (M12 x 1)
Order-No. FZ-KS.W12.10 |
|
Length 10m | Coupling straight / axial |
8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 |
12-pole (M12 x 1)
Order-No. FZ-KS.G12.10 |
