Switch Housing TG2

Ledge handle with buttons and emergency stop for rear attachment with a continuous groove for a variable bolting distance.

Material and surface:
Housing made of aluminum profile AlMgSi 0.5; blasted and natural anodized. End caps made of aluminum AlMgSi 0.5; natural anodized.

Function elements:
Depending on type with push button or emergency stop.

Connection:
8- or 12-pole, coupling available with 10 m ready made cable.

Protection class:
IP 65 with screwed coupling.

Scope of delivery:
Two M6 self-locking sliding blocks are included for mounting.

Note:
Customized variants are possible on request.

show more show less
Technical schematic of TG2 switch housing ledge handle displaying side and front views with push buttons and emergency stop button and detailed dimensional measurements in millimeters.
Technical line drawing of TG2 ledge handle switch housing with two push buttons and M12x1 plug showing front and side views with dimensional measurements
Technical drawing of TG2 switch housing showing two push buttons on the top and detailed side view dimensions in inches with labeled plug ISO M12x1

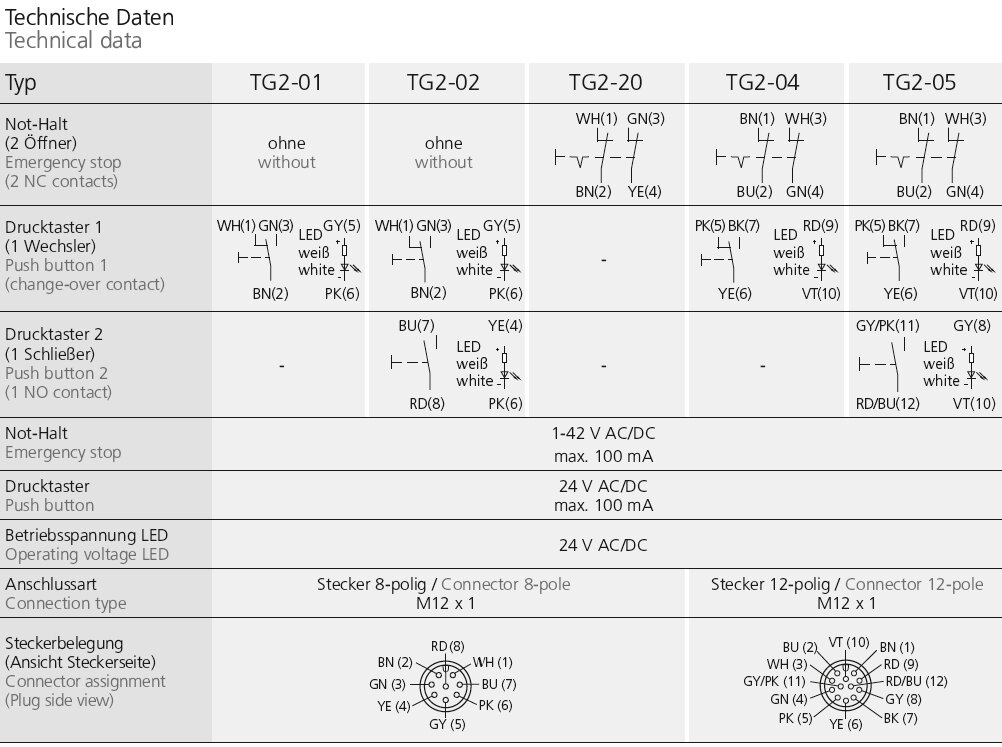

Unit of measure
Product Type Description L Version Order-No.
Product Type Description L Version Order-No.
Product Type TG2-01 Description 1 push button L 200 Version left Order-No. TG2-01.LA200.11 3D+CAD
Product Type TG2-01 Description 1 push button L 200 Version right Order-No. TG2-01.RA200.11 3D+CAD
Product Type TG2-02 Description 2 push buttons L 200 Version left Order-No. TG2-02.LA200.11 3D+CAD
Product Type TG2-02 Description 2 push buttons L 200 Version right Order-No. TG2-02.RA200.11 3D+CAD
Product Type TG2-04 Description 1 push button and emergency stop L 200 Version left Order-No. TG2-04.LA200.11 3D+CAD
Product Type TG2-04 Description 1 push button and emergency stop L 200 Version right Order-No. TG2-04.RA200.11 3D+CAD
Product Type TG2-05 Description 2 push buttons and emergency stop L 250 Version left Order-No. TG2-05.LA250.11 3D+CAD
Product Type TG2-05 Description 2 push buttons and emergency stop L 250 Version right Order-No. TG2-05.RA250.11 3D+CAD
Product Type TG2-20 Description 1 emergency stop L 200 Version left Order-No. TG2-20.LA200.11 3D+CAD
Product Type TG2-20 Description 1 emergency stop L 200 Version right Order-No. TG2-20.RA200.11 3D+CAD
Handle accessories
Length Coupling 8-pole (M12 x 1)
Order-No. 		8-polig (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No. 		12-polig (M12 x 1)
Order-No.
Length Coupling 8-pole (M12 x 1)
Order-No. 		8-polig (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No. 		12-polig (M12 x 1)
Order-No.
Length 10 m Coupling angled 8-pole (M12 x 1)
Order-No. — 		8-polig (M12 x 1)
Order-No. FZ-KS.W08.10 		12-pole (M12 x 1)
Order-No. — 		12-polig (M12 x 1)
Order-No. FZ-KS.W12.10
Length 10 m Coupling straight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 		8-polig (M12 x 1)
Order-No. — 		12-pole (M12 x 1)
Order-No. FZ-KS.G12.10 		12-polig (M12 x 1)
Order-No. —
