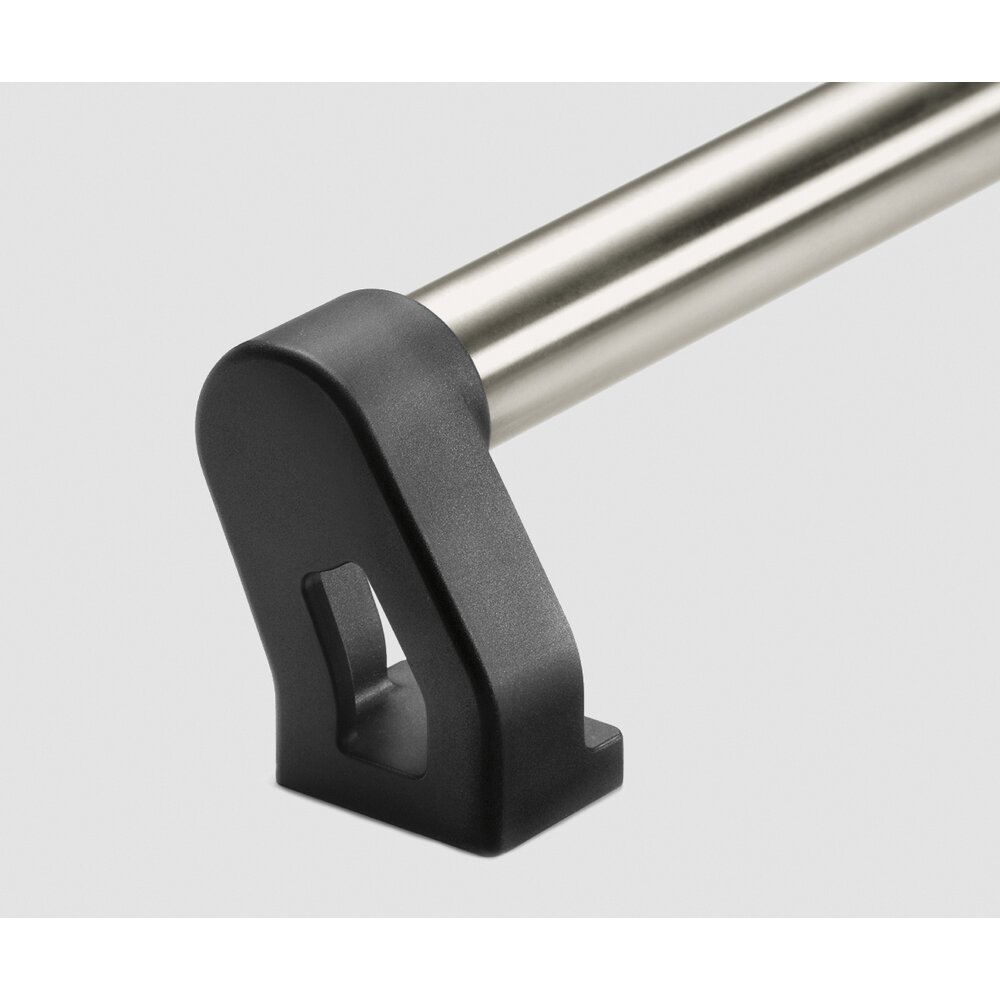

  • Close-up of an angled black polyamide handle shank attached to a smooth anodized aluminium tube on a light background
Close-up of an angled black polyamide handle shank attached to a smooth anodized aluminium tube on a light background

Handles RR 30.A

Multi-purpose Rohde handle types in 2 design dimensions for machinery and apparatus engineering. The variation RR-30.A with angled shanks also for applications on double doors.

Material:
Handle shanks made of high duty polyamide PA6, glass ball reinforced, black, similar to RAL 9005, half-matt, with fine structure. Connecting tubes made of aluminium AIMgSi 0.5.

Design advantages:
The handle shanks are provided with 4 clamping bars. They give firm fitting.

Version A:
Connecting tube ground and anodized in natural colour.

Version B:
Connecting tube with grooved plastic cover.

Version C:
Connecting tube black powder coated with fine structure.

Scope of delivery:
RR-20 including black galvanized hexagon screws (chromium VI free) M5x20 DIN 933 and galvanized nuts DIN 934 with washers DIN 125. RR-30 and RR-30.A same as above however with screws M8x25.

Note:
Any desired handle lengths on request.

Stress resistance:
min. 1000 N.

show more show less
Black and white technical drawing showing side and end views of a Rohde RR-30.A handle with angled shanks and mounting hardware.
Unit of measure
Type
A L anodized
Order-No. 		Aluminum with corrugated plastic coating
Order-No. 		Aluminum powder coated black
Order-No.
A L anodized
Order-No. 		Aluminum with corrugated plastic coating
Order-No. 		Aluminum powder coated black
Order-No.
A 150 L 200 anodized
Order-No. RR-30.A150.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A150.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A150.64 3D+CAD
A 200 L 250 anodized
Order-No. RR-30.A200.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A200.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A200.64 3D+CAD
A 250 L 300 anodized
Order-No. RR-30.A250.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A250.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A250.64 3D+CAD
A 300 L 350 anodized
Order-No. RR-30.A300.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A300.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A300.64 3D+CAD
A 350 L 400 anodized
Order-No. RR-30.A350.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A350.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A350.64 3D+CAD
A 400 L 450 anodized
Order-No. RR-30.A400.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A400.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A400.64 3D+CAD
A 500 L 550 anodized
Order-No. RR-30.A500.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A500.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A500.64 3D+CAD
A 600 L 650 anodized
Order-No. RR-30.A600.62 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. RR-30.A600.63 3D+CAD 		Aluminum powder coated black
Order-No. RR-30.A600.64 3D+CAD
Product Type
Article Version RR-30.A
Order-No.
Article Version RR-30.A
Order-No.
Article Handle shank, 1 piece, with mounting material Version left RR-30.A
Order-No. RR-30.AL000.84
Article Handle shank, 1 piece, with mounting material Version right RR-30.A
Order-No. RR-30.AR000.84
Article Handle shank, 1 piece, without mounting material Version left RR-30.A
Order-No. RR-30.ALOWS.84
Article Handle shank, 1 piece, without mounting material Version right RR-30.A
Order-No. RR-30.AROWS.84
