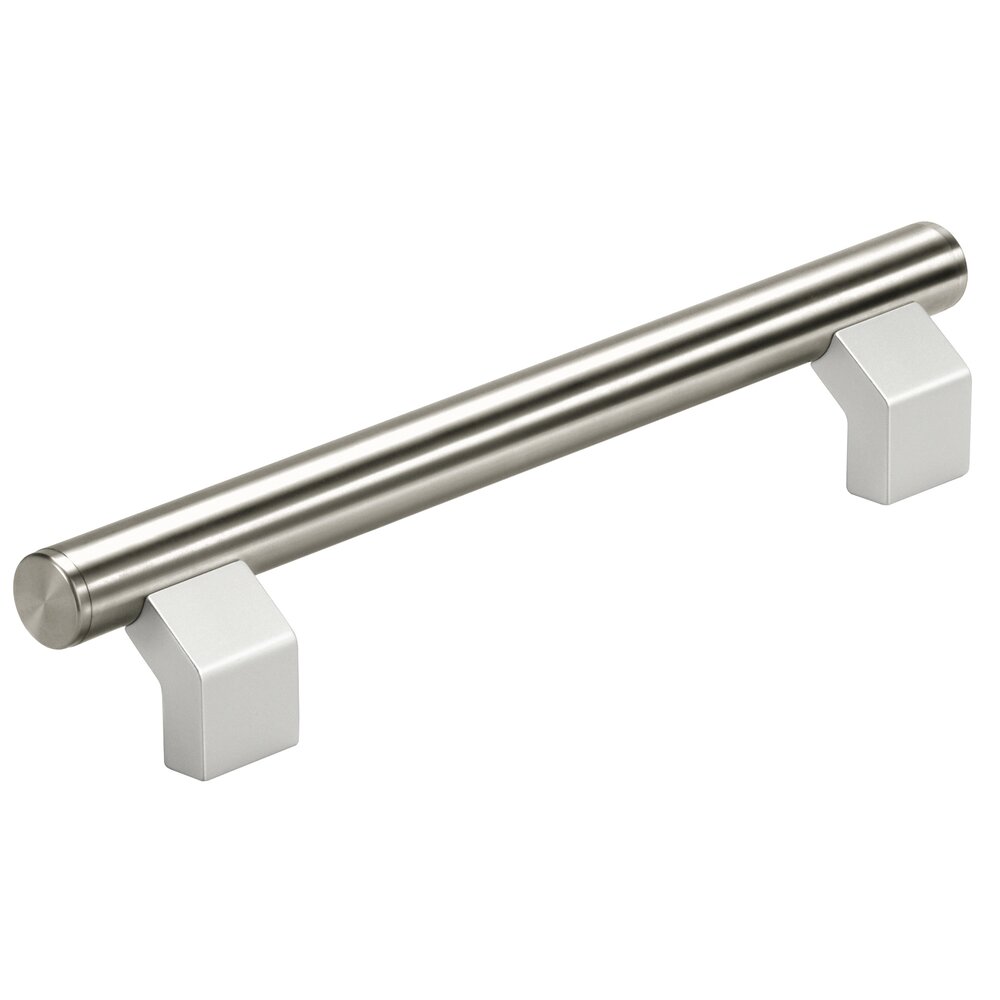

  • Stainless steel tubular handle with two aluminum mounting legs on a white background
Stainless steel tubular handle with two aluminum mounting legs on a white background

Handles TL.WR

Material and surface:
Stainless steel tube, material no. 1.4301; fine ground. Handle shanks of extruded aluminium AlMgSi 0.5; natural colour anodized with dull bright finish. End caps of stainless steel, material no. 1.4305; fine lathed. Fixing sleeves of anodized aluminium, clamping screws and pegs of stainless steel.

Note:
For other versions see also type series WR.

Stress resistance:
min. 1000 N.

show more show less

Version TL.WR-20

Technical line drawing showing three views of a stainless steel and aluminum handle with detailed sectional view of attachment components.
Technical line drawing illustrating the front, side, and top views of the TL.WR stainless steel and aluminum handle with sectional detailing.
Unit of measure
A L Order-No.
A L Order-No.
A 200 L 260 Order-No. TL.WR-20.200.37 3D+CAD
A 250 L 310 Order-No. TL.WR-20.250.37 3D+CAD
A 300 L 360 Order-No. TL.WR-20.300.37 3D+CAD

Version TL.WR-30

Technical line drawing showing front sectional and side views of the TL.WR stainless steel handle with aluminium profile and mounting components.
Technical drawing of TL.WR handle including side sectional view, cross-sectional view, and end view, illustrating stainless steel tube and aluminium profile components.
Unit of measure
A L Order-No.
A L Order-No.
A 300 L 390 Order-No. TL.WR-30.300.37 3D+CAD
A 350 L 440 Order-No. TL.WR-30.350.37 3D+CAD
A 400 L 490 Order-No. TL.WR-30.400.37 3D+CAD
A 500 L 590 Order-No. TL.WR-30.500.37 3D+CAD
A 600 L 690 Order-No. TL.WR-30.600.37 3D+CAD
