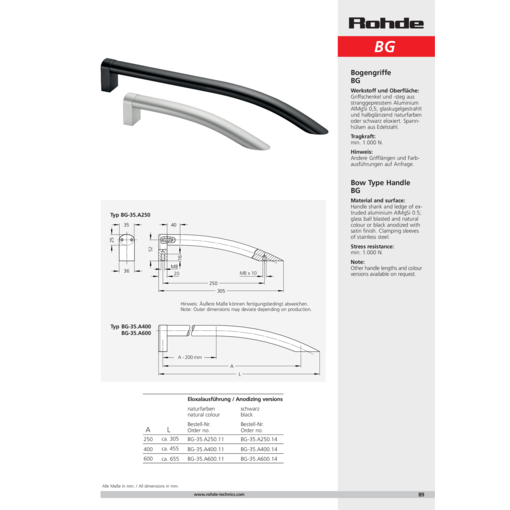

Handles BG

Material and surface:

Handle shank and ledge of extruded aluminium AlMgSi 0.5; glass ball blasted and natural colour or black anodized with satin finish. Clamping sleeves of stainless steel.

Due to design constraints, dimension L may vary.

Note:

Other handle lengths and colour versions available on request.

Stress resistance:

min. 1000 N.

BG-35.A
Unit of measure
		Type
A	L	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.
A250	Lca. 305	Anodizing version natural-colored with satin finish Order-No. BG-35.A250.11 3D+CAD	Anodized aluminum black with satin finish Order-No. BG-35.A250.14 3D+CAD
A400	Lca. 455	Anodizing version natural-colored with satin finish Order-No. BG-35.A400.11 3D+CAD	Anodized aluminum black with satin finish Order-No. BG-35.A400.14 3D+CAD
A600	Lca. 655	Anodizing version natural-colored with satin finish Order-No. BG-35.A600.11 3D+CAD	Anodized aluminum black with satin finish Order-No. BG-35.A600.14 3D+CAD
