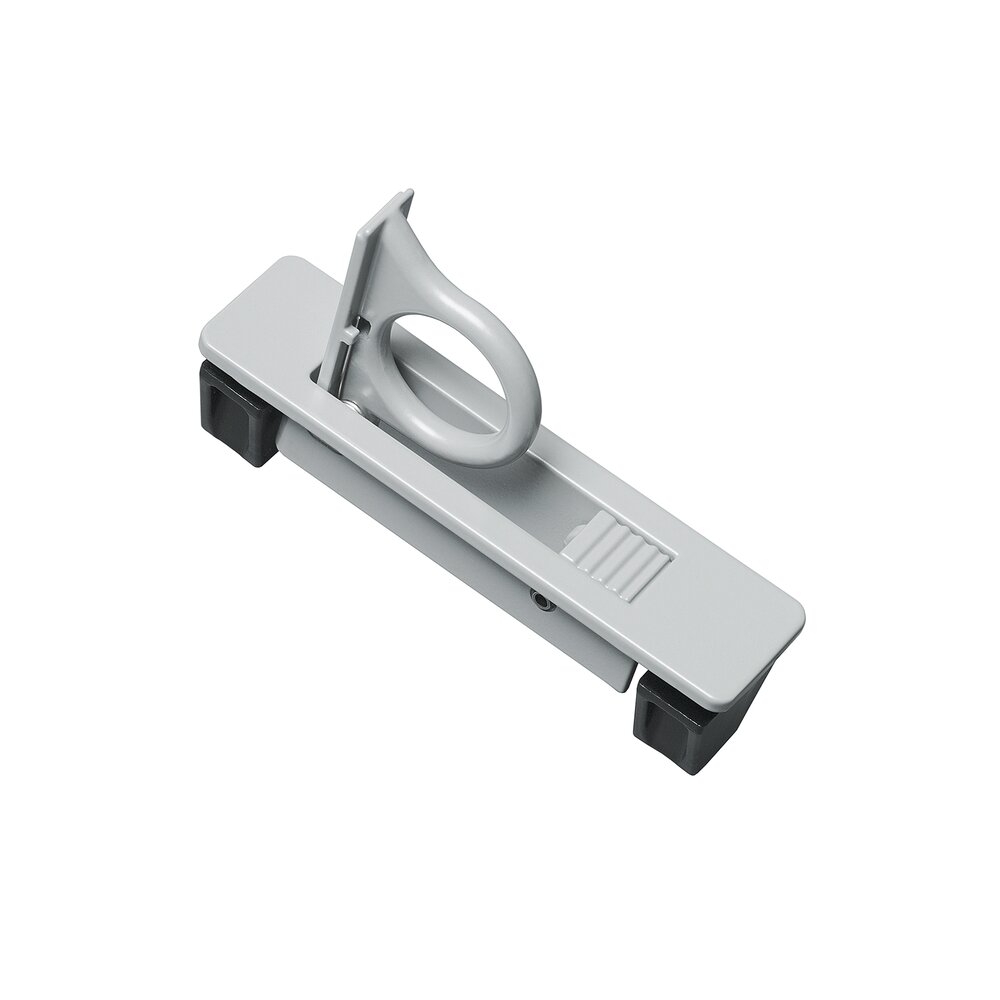

Silver retractable folding handle with a central loop and two black end caps, designed for rear mounting

Handles KT-21

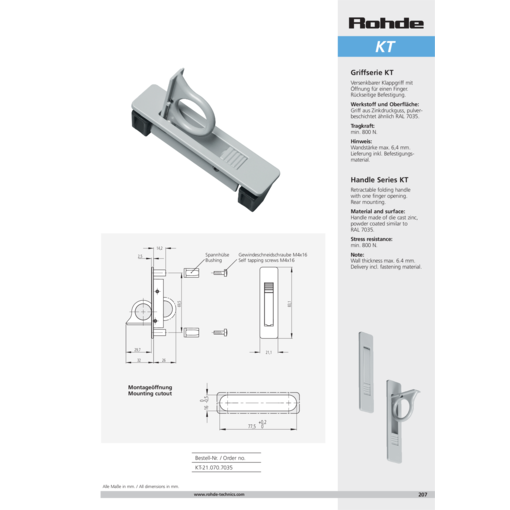

kt-21.pdf

Handles KT-21

Retractable folding handle with one finger opening. Rear mounting.

Material and surface:
Handle made of die cast zinc, silver powder coated.

Note:
Wall thickness max. 6,4 mm. Delivery incl. fastening material

Stress resistance:
min. 800 N.

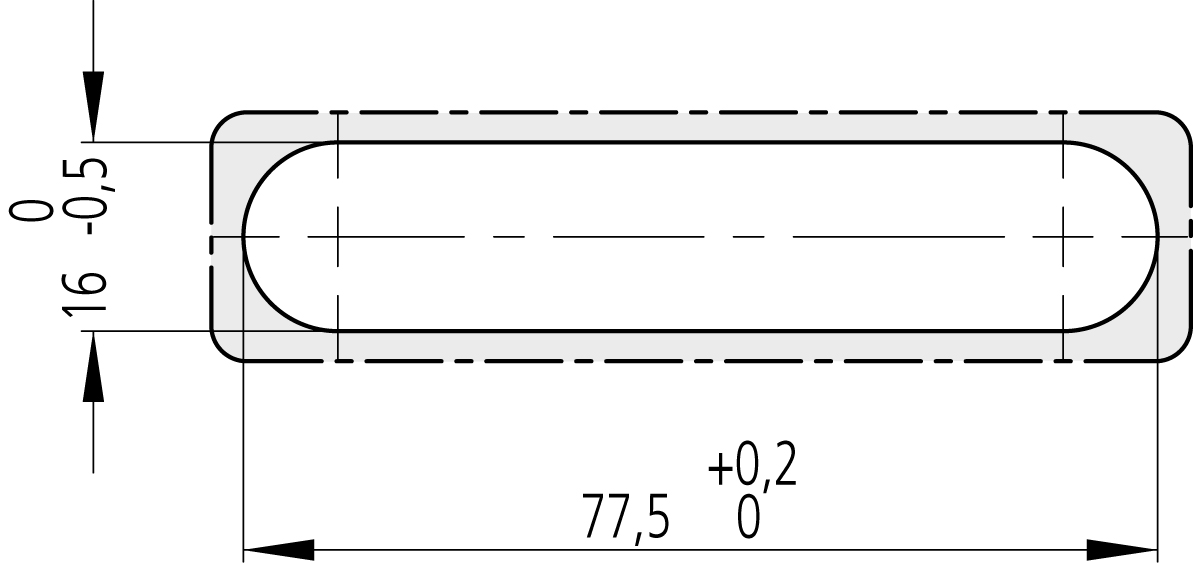

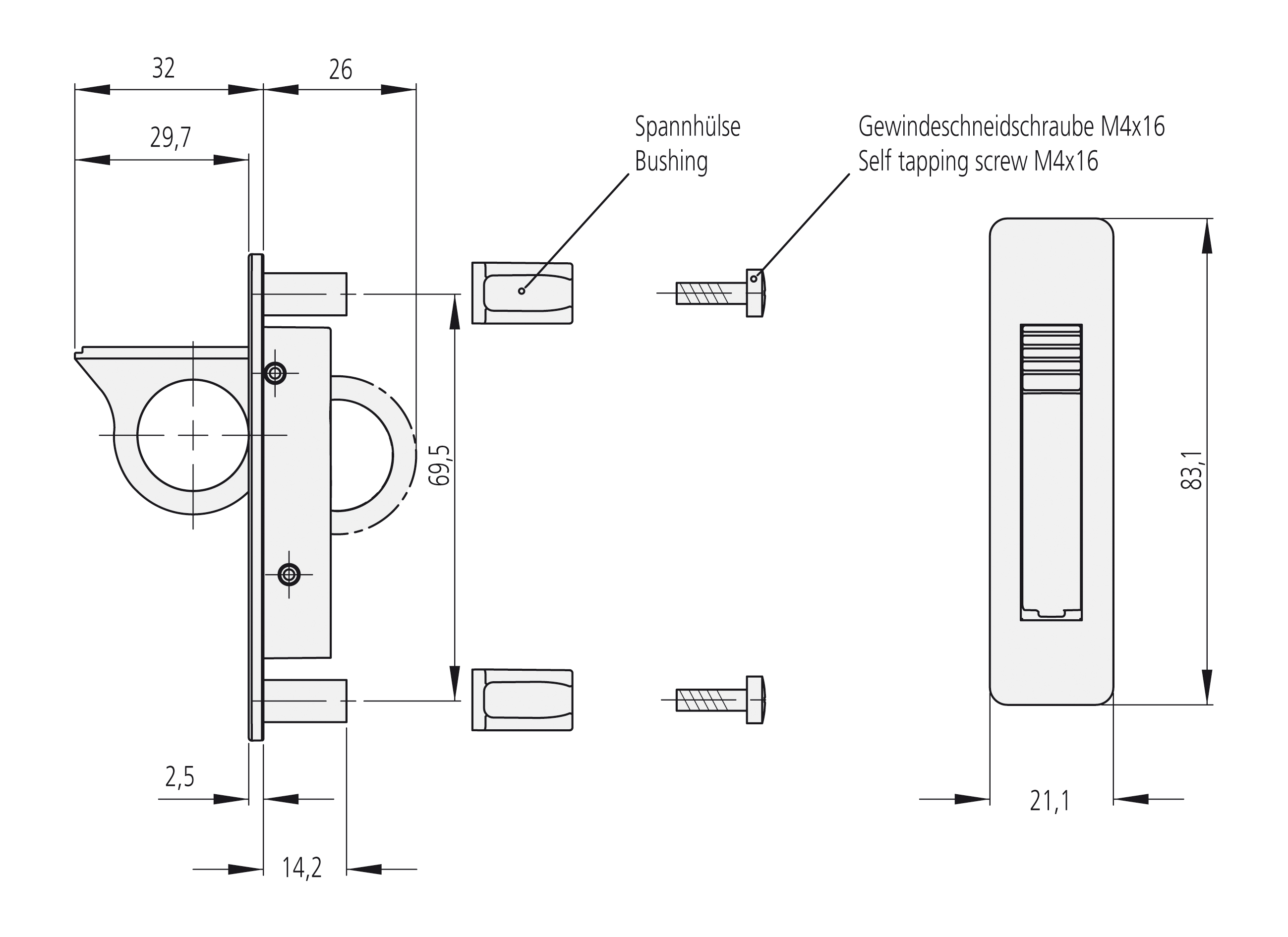

Technical drawing

Technical drawing

Technical drawing

Technical drawing

Technical data
Unit of measure

Order-No.
Order-No. KT-21.070.7035 3D+CAD
