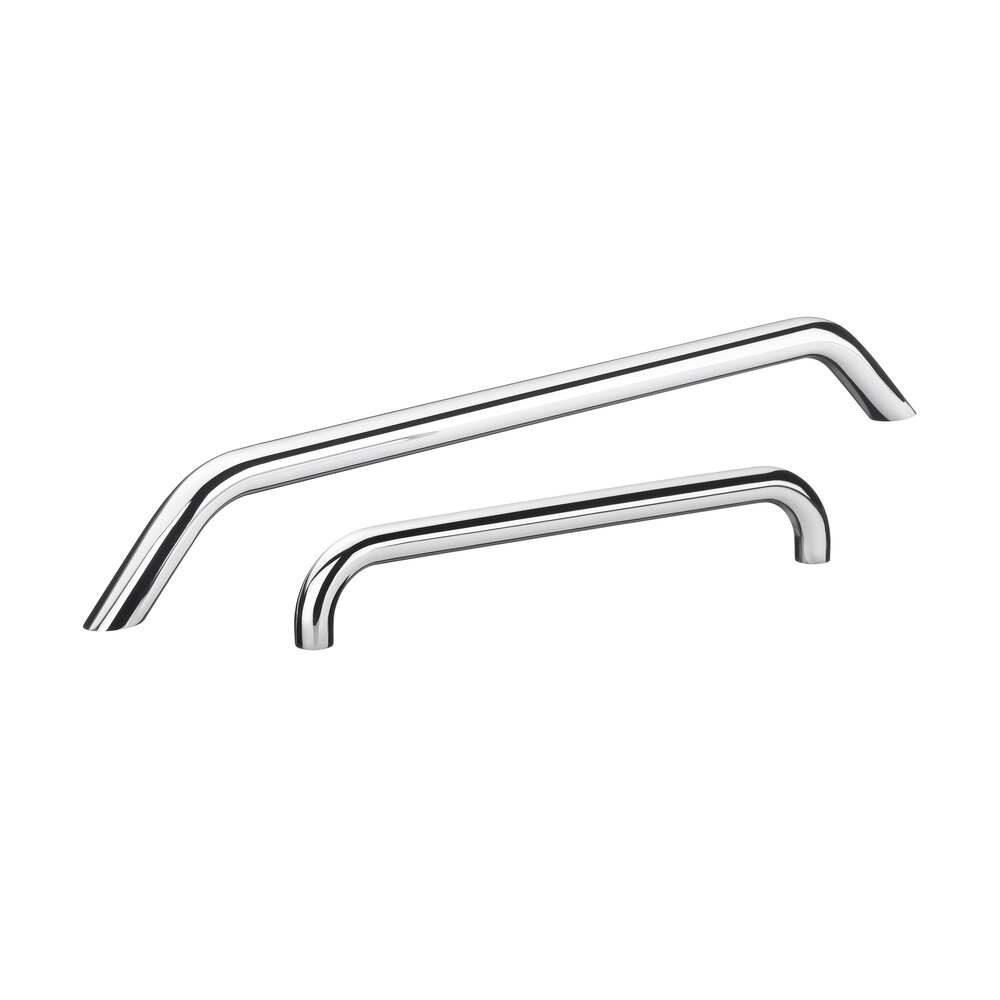

  • Stainless Steel Handles ER-20 und ER-25, marine grade
Stainless Steel Handles ER-20 und ER-25, marine grade

Handles ER-20, ER-25

Material and surface:
Handle made of stainless steel material 1.4404 with polished surface.

Stress resistance:
min. 1000 N.

show more show less

Version ER-20

Unit of measure
A Order-No.
A Order-No.
A 200 Order-No. ER-20.B200.49 3D+CAD
A 300 Order-No. ER-20.B300.49 3D+CAD

Version ER-25

Technical drawing of a bent stainless steel handle showing top and side views with mounting points on both ends.
Unit of measure
A L Order-No.
A L Order-No.
A 300 L 340 Order-No. ER-25.A300.49 3D+CAD
A 450 L 490 Order-No. ER-25.A450.49 3D+CAD
A 600 L 640 Order-No. ER-25.A600.49 3D+CAD
A 750 L 790 Order-No. ER-25.A750.49 3D+CAD
A 900 L 940 Order-No. ER-25.900.49 3D+CAD
Order-No.
Order-No.

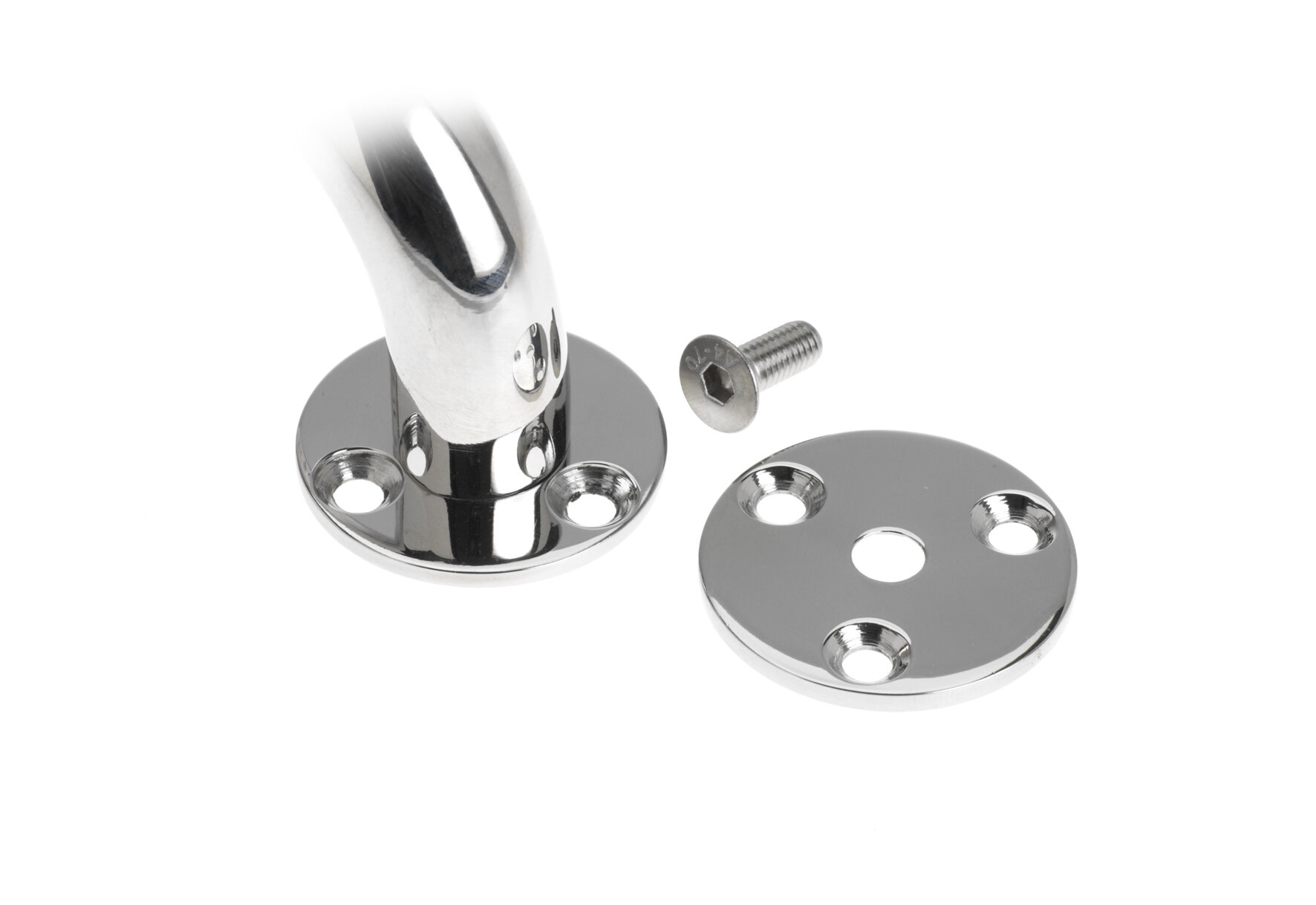

Polished stainless steel handle base with circular mounting plates and a hex socket screw on white background Order-No. ER-20.B001.49 3D+CAD

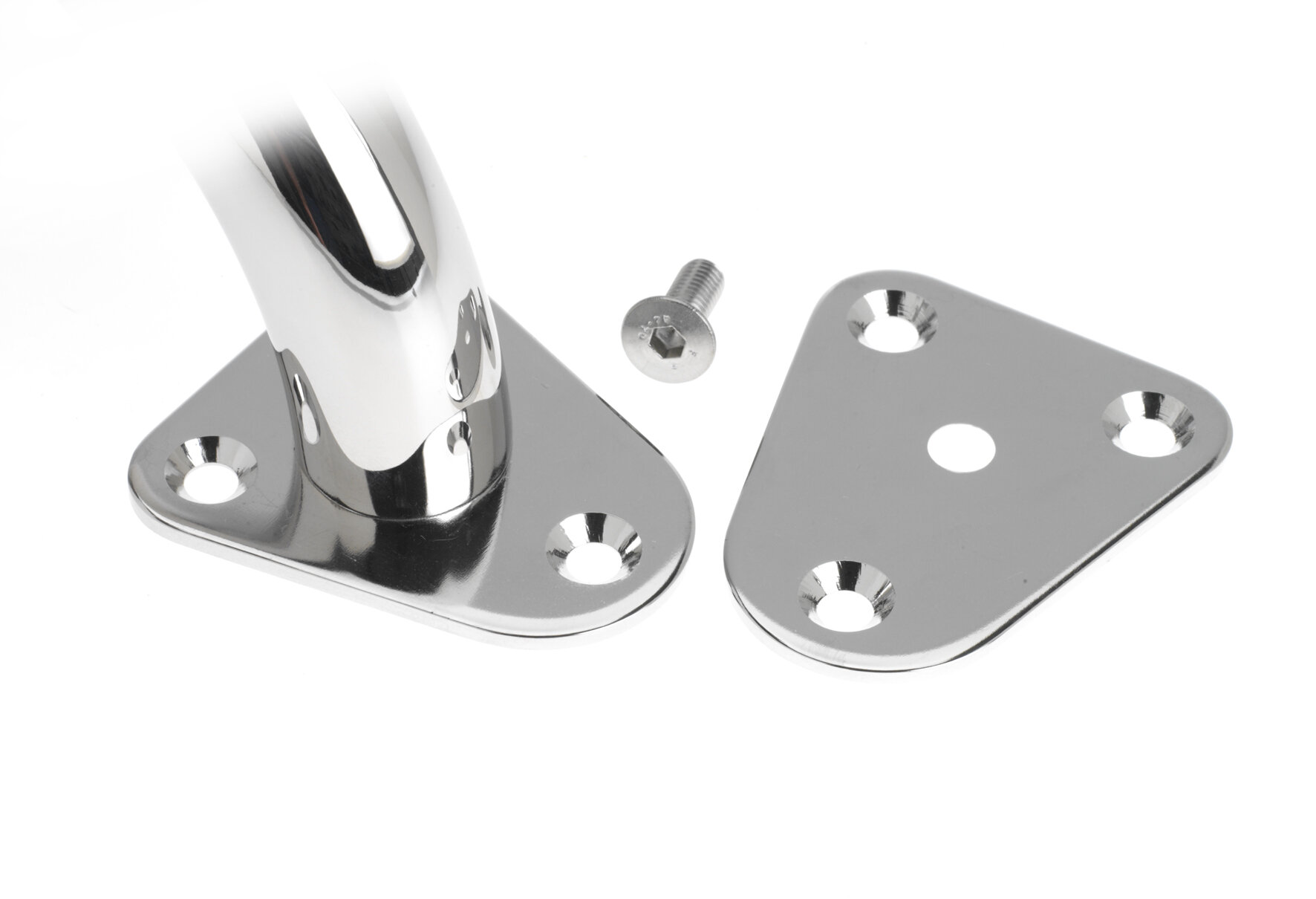

ER-25.A001.49 3D+CAD

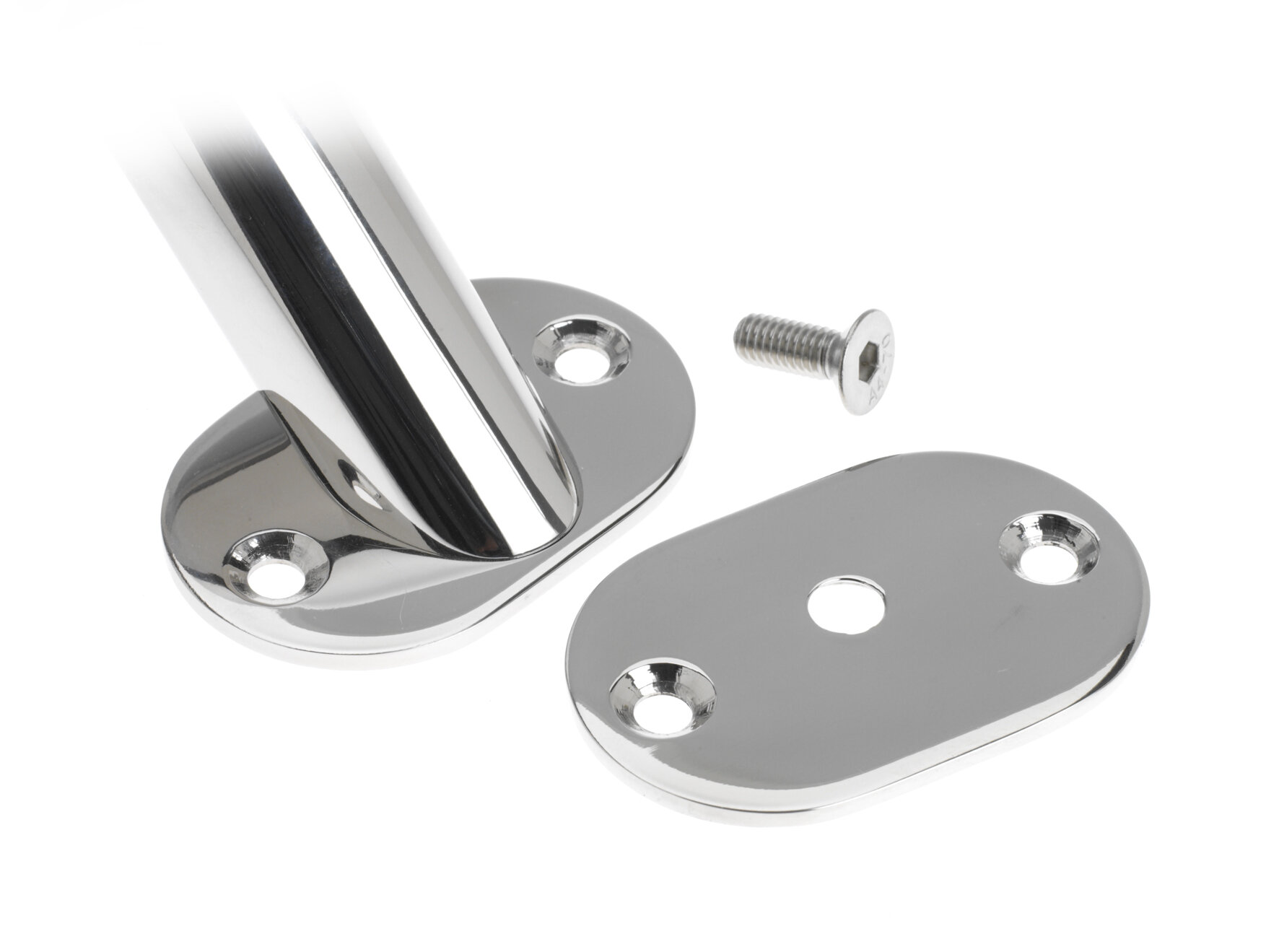

ER-25.A002.49 3D+CAD
