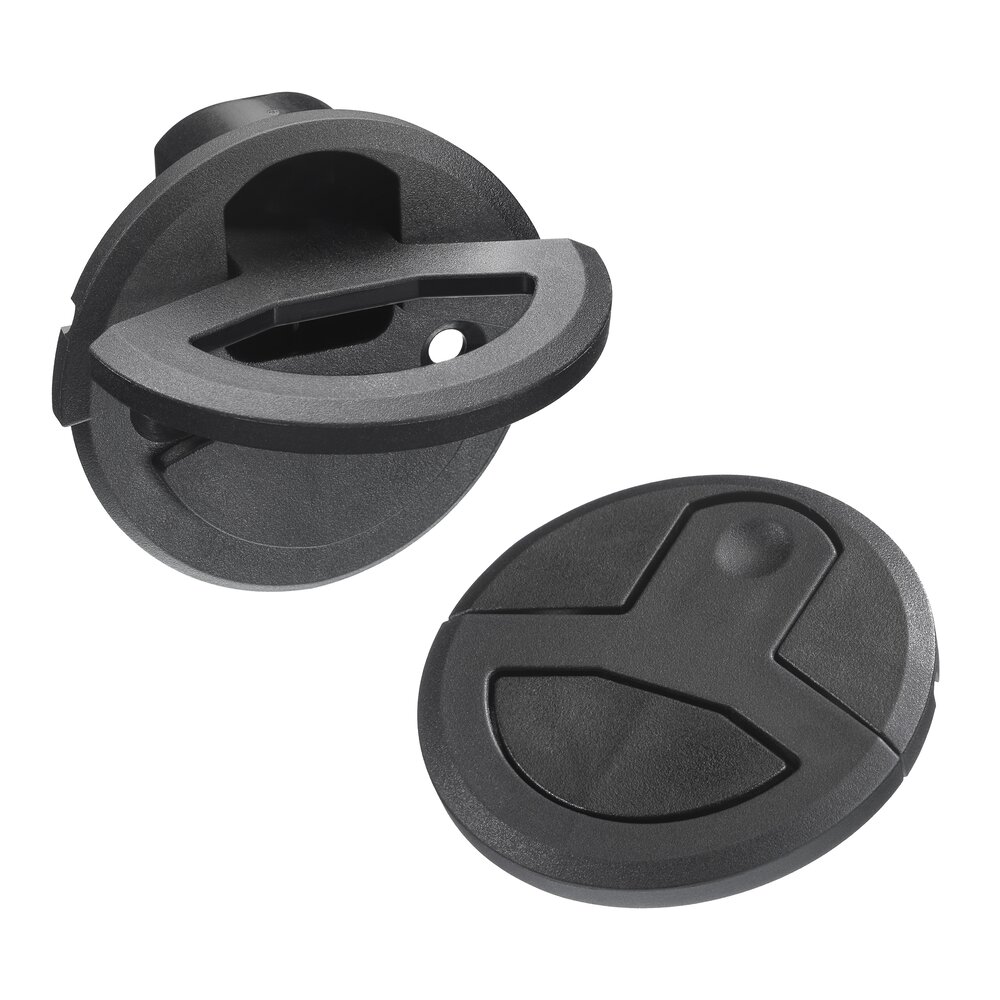

Handles KK-06

Can be used as a floor lifter or folding handle.

Material and surface:
Holder and handle made of heavy duty polyamide PA 6, glass ball reinforced, black, similar to RAL 9005, semi gloss, with fine structure.Arbors and restoring springs made of stainless steel.

Stress resistance:
Min. 200 N.

Scope of delivery:
Including mounting screws.

Note:
More color options are available upon request.

Technical data
Unit of measure

Order-No.
Order-No. KK-06.035.84 3D+CAD
