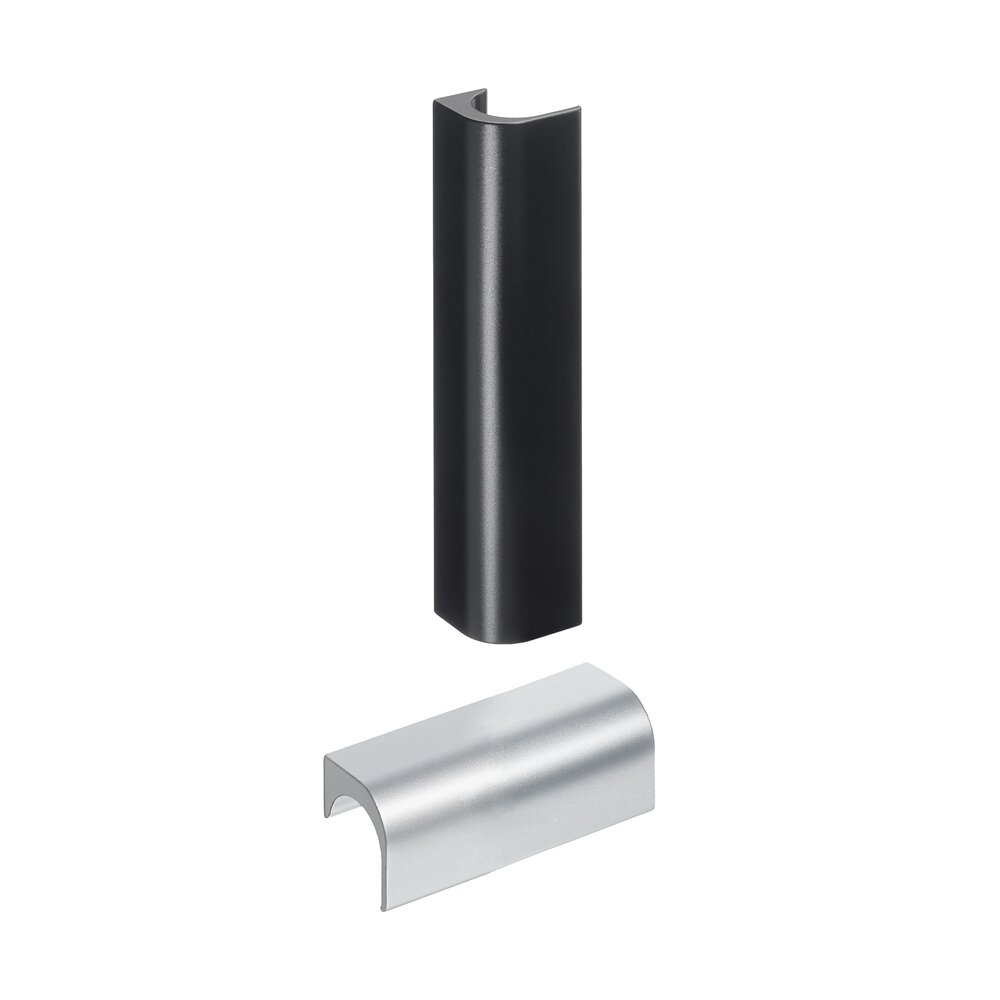

Handles LG-09
Material and surface:
Profiled aluminium AlMgSi 0.5; blasted and anodized in natural or black color with a matte finish.
Stress resistance:
Min. 500 N.
Note:
Any other handle lengths and further color options are available upon request.
Also available: Profile material, 1 m
Order number:
LG-09.001.01 (natural color)
LG-09.001.04 (black)
|
Unit of measure
|
|||
|---|---|---|---|
| Type | |||
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
|---|---|---|---|
| A 60 | L 80 |
Anodizing version natural-colored
Order-No. LG-09.060.01 3D+CAD |
Anodized aluminum black
Order-No. LG-09.060.04 3D+CAD |
| A 80 | L 100 |
Anodizing version natural-colored
Order-No. LG-09.080.01 3D+CAD |
Anodized aluminum black
Order-No. LG-09.080.04 3D+CAD |
| A 130 | L 150 |
Anodizing version natural-colored
Order-No. LG-09.130.01 3D+CAD |
Anodized aluminum black
Order-No. LG-09.130.04 3D+CAD |
| A 180 | L 200 |
Anodizing version natural-colored
Order-No. LG-09.180.01 3D+CAD |
Anodized aluminum black
Order-No. LG-09.180.04 3D+CAD |
