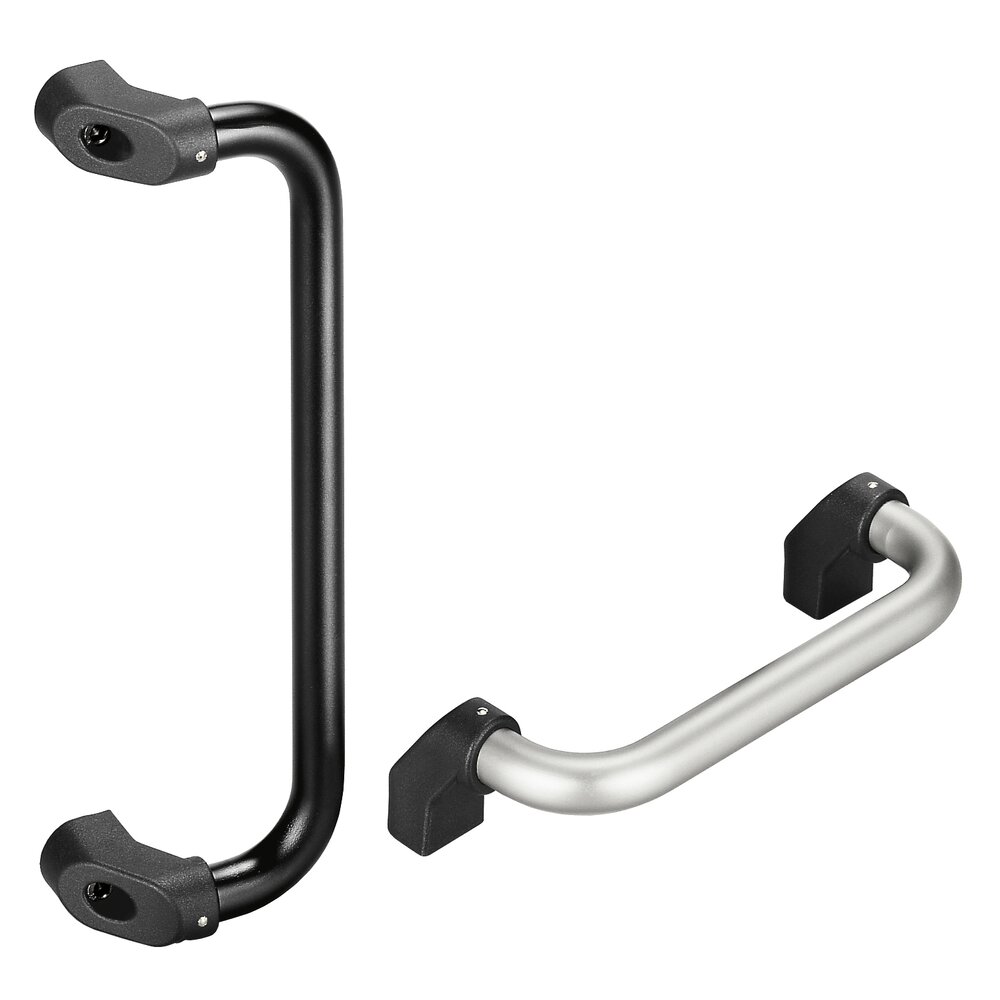

Handles M3

Offset machine handles for front sided screw attachment.

Material and surface:
Connecting bow from Ø20 or Ø30 round aluminium AlMgSI 0.5 satimatt anodized, in 2 colours. Alternatively black powder coated.

Scope of delivery:
Includes black galvanized cheese head screws (chromium VI free) with hexagon sockets M8x30 or M10x45 DIN 912 and galvanized nuts DIN 934 with washers DIN 125.

Stress resistance:
min. 800 N.

Version M3-20

M3-20
Unit of measure
	Type
A	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.	powder coated black Order-No.
A200	Anodizing version natural-colored with satin finish Order-No. M3-20.A200.11 3D+CAD	Anodized aluminum black with satin finish Order-No. M3-20.A200.14 3D+CAD	powder coated black Order-No. M3-20.A200.54 3D+CAD
A250	Anodizing version natural-colored with satin finish Order-No. M3-20.A250.11 3D+CAD	Anodized aluminum black with satin finish Order-No. M3-20.A250.14 3D+CAD	powder coated black Order-No. M3-20.A250.54 3D+CAD
A300	Anodizing version natural-colored with satin finish Order-No. M3-20.A300.11 3D+CAD	Anodized aluminum black with satin finish Order-No. M3-20.A300.14 3D+CAD	powder coated black Order-No. M3-20.A300.54 3D+CAD
A350	Anodizing version natural-colored with satin finish Order-No. M3-20.A350.11 3D+CAD	Anodized aluminum black with satin finish Order-No. M3-20.A350.14 3D+CAD	powder coated black Order-No. M3-20.A350.54 3D+CAD
A400	Anodizing version natural-colored with satin finish Order-No. M3-20.A400.11 3D+CAD	Anodized aluminum black with satin finish Order-No. M3-20.A400.14 3D+CAD	powder coated black Order-No. M3-20.A400.54 3D+CAD

Version M3-30

M3-30
Unit of measure
	Type
A	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.	powder coated black Order-No.
A300	Anodizing version natural-colored with satin finish Order-No. M3-30.A300.11 3D+CAD	Anodized aluminum black with satin finish Order-No. M3-30.A300.14 3D+CAD	powder coated black Order-No. M3-30.A300.54 3D+CAD
A400	Anodizing version natural-colored with satin finish Order-No. M3-30.A400.11 3D+CAD	Anodized aluminum black with satin finish Order-No. M3-30.A400.14 3D+CAD	powder coated black Order-No. M3-30.A400.54 3D+CAD
