Functional handles FG5
fg5.pdf
PDF

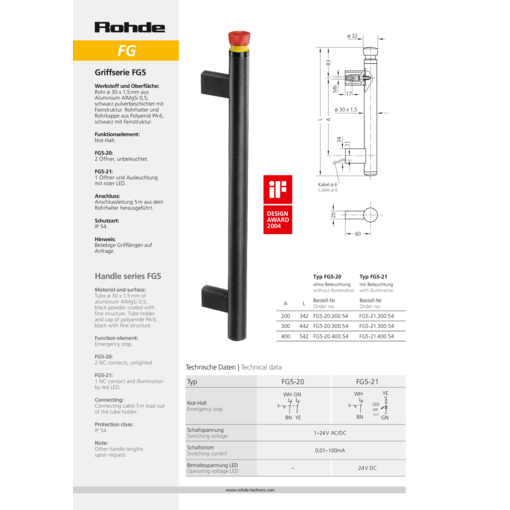

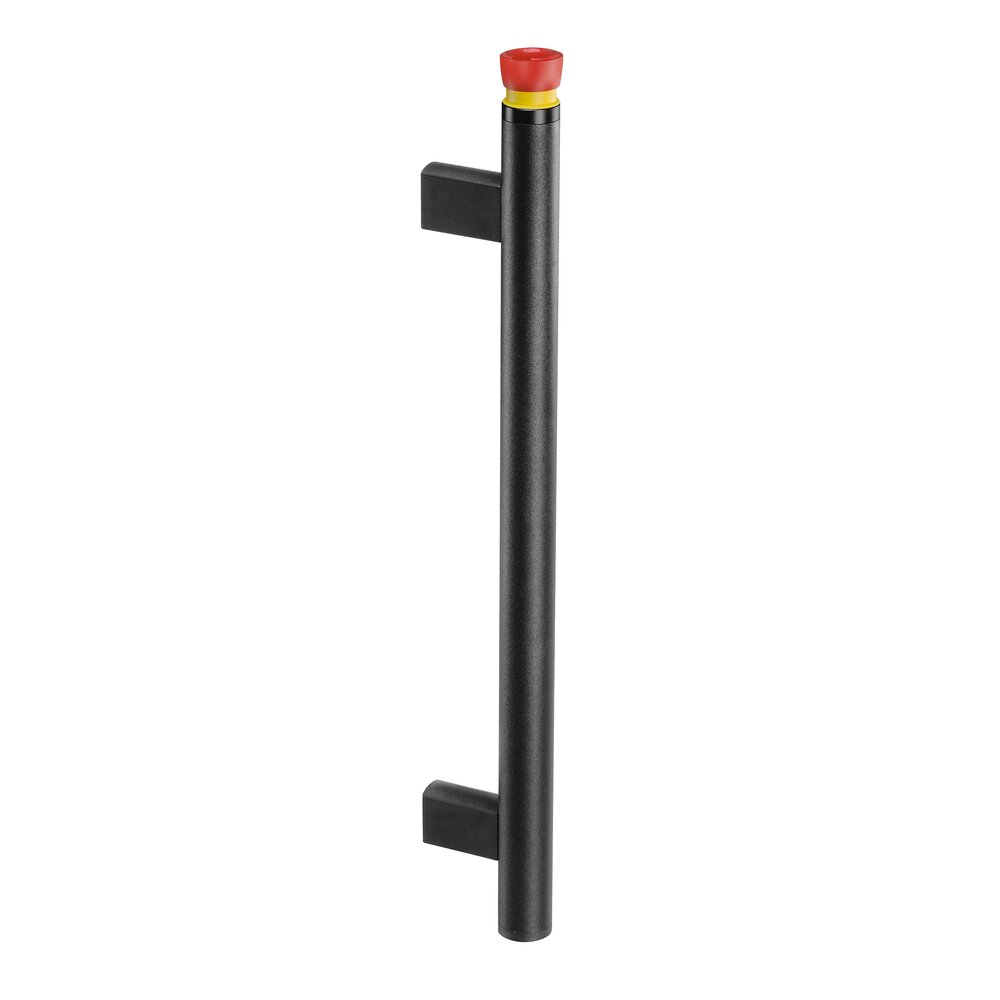

Functional handles FG5

Material and surface:
Tube Ø30x1.5 mm of aluminium AlMgSi 0.5; black powder coated with fine structure. Tube holder and cap of polyamide PA6, black with fine structure.

Function element:
Emergency stop.

FG5-20:
2 NC contacts, unlighted.

FG5-21:
1 NC contact and illumination by red LED.

Protection class:
The protection class of the functional handle conforms to IP 65.

Connecting:
Connecting cable 5m lead out of the tube holder.

Note:
Other handle lengths on request.

Technical data
Unit of measure
Product TypeDescriptionAL Order-No.

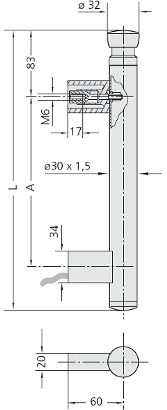

Product TypeFG5-20 Description1 emergency stop A200 L342 Order-No. FG5-20.200.54 3D+CAD
Product TypeFG5-20 Description1 emergency stop A300 L442 Order-No. FG5-20.300.54 3D+CAD
Product TypeFG5-20 Description1 emergency stop A400 L542 Order-No. FG5-20.400.54 3D+CAD
Product TypeFG5-21 Description1 emergency stop with lighting A200 L342 Order-No. FG5-21.200.54 3D+CAD
Product TypeFG5-21 Description1 emergency stop with lighting A300 L442 Order-No. FG5-21.300.54 3D+CAD
Product TypeFG5-21 Description1 emergency stop with lighting A400 L542 Order-No. FG5-21.400.54 3D+CAD

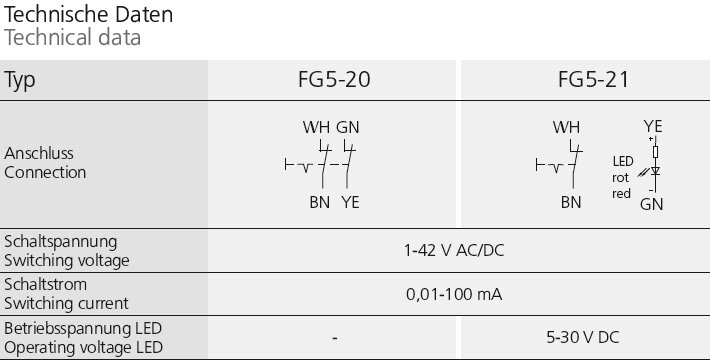

Technical data table showing specifications for FG5-20 and FG5-21 functional handles including connection diagrams, switching voltage range 1-42 V AC/DC, switching current 0.01-100 mA, and LED operating voltage 5-30 V DC for FG5-21.
