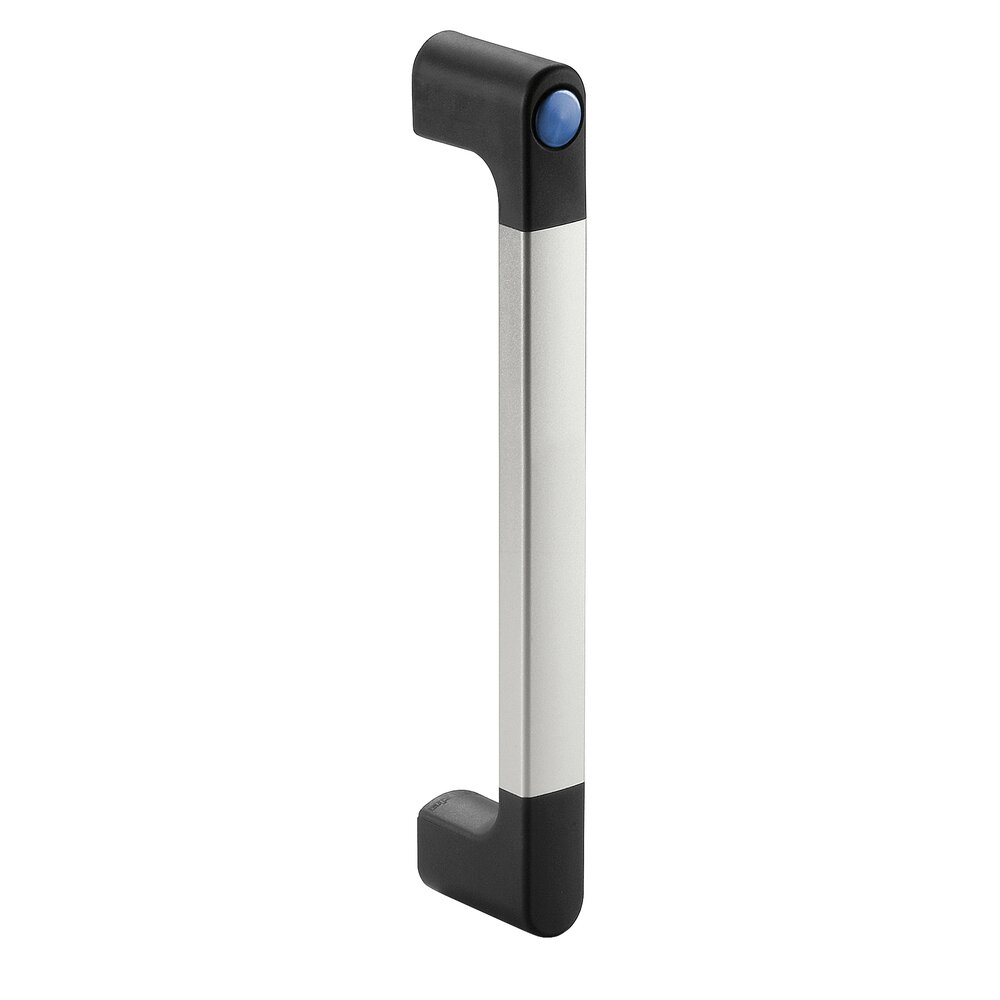

  • Pneumatic FG4-P handle with black shank and blue start button on top

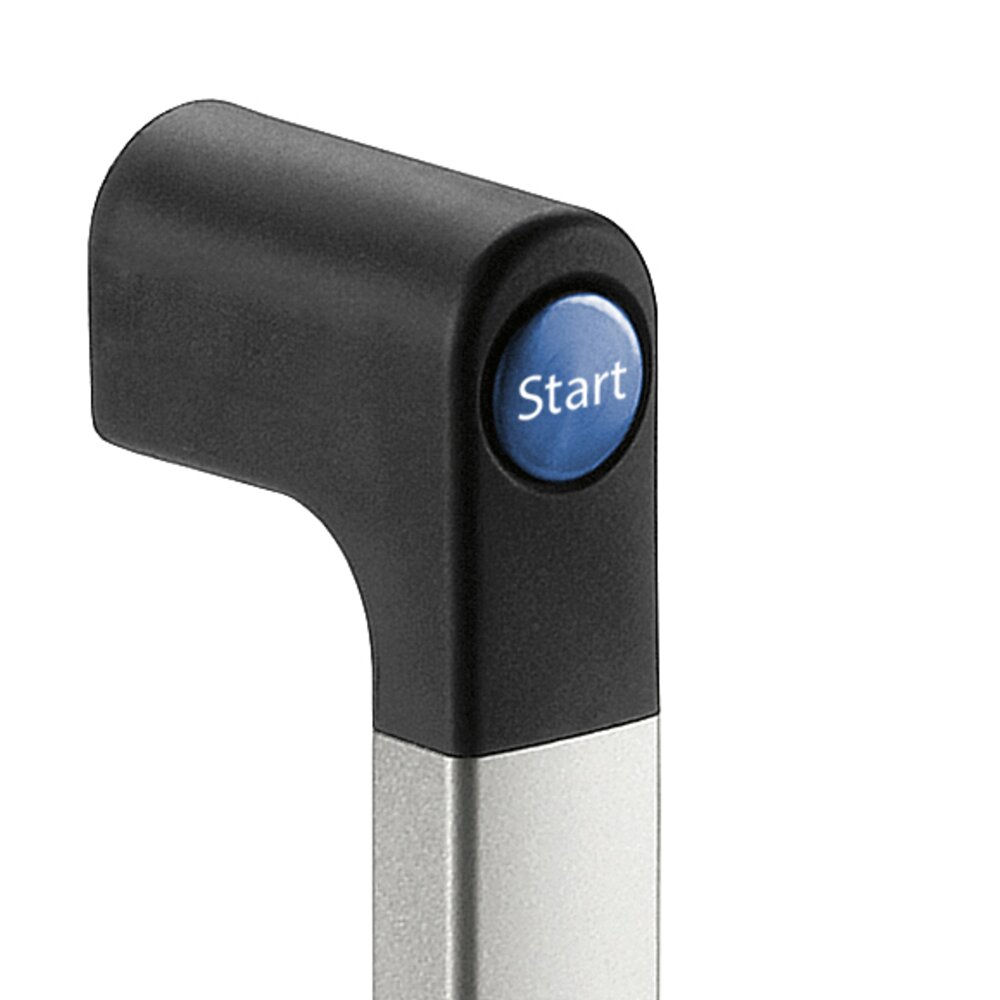

Pneumatic FG4-P handle with black shank and blue start button on top

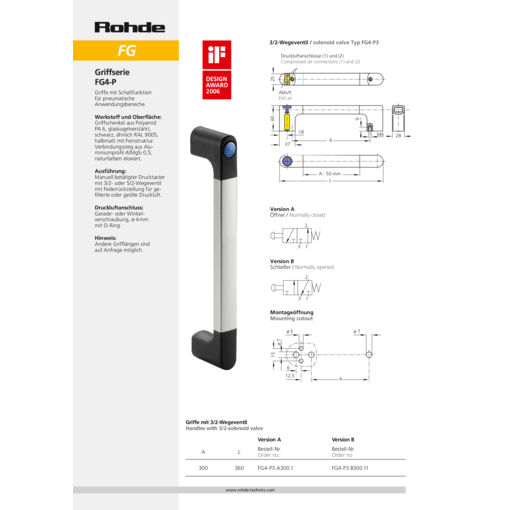

Functional handles FG4-P

Handles with switching function for pneumatic purposes.

Material and surface:
Handle shanks of polyamide PA6, glass ball reinforced, black, similar to RAL 9005, semi-matte with fine-grain structure. Connecting ledge of profiled aluminium, natural coloured anodized.

Design:
Manually operated push-button with 3/2 or 5/2 solenoid valve with return spring for filtered or oiled compressed air.

Compressed air connection:
Straight or angled adaptor, Ø4 mm with o-ring.

Special designs:
Other handle lengths on request.

show more show less
  • handle lengths customized
  • button colors according to customer specifications
  • further color versions
show more show less

Version FG4-P3.A300

Technical schematic of FG4-P pneumatic handle, showing dimensions and compressed air connections in top, side, and cross-sectional views.
Technical schematic of FG4-P pneumatic handle, showing dimensions and compressed air connections in top, side, and cross-sectional views.
Unit of measure
Type
A L Description Anodizing version natural-colored with satin finish
Order-No.
A L Description Anodizing version natural-colored with satin finish
Order-No.
A 300 L 360 Description Version A Anodizing version natural-colored with satin finish
Order-No. FG4-P3.A300.11 3D+CAD

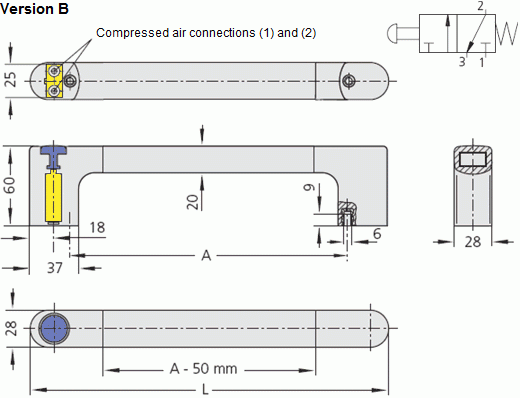

Version FG4-P3.B300

Unit of measure
Type
A L Description Anodizing version natural-colored with satin finish
Order-No.
A L Description Anodizing version natural-colored with satin finish
Order-No.
A 300 L 360 Description Version B Anodizing version natural-colored with satin finish
Order-No. FG4-P3.B300.11 3D+CAD

Version FG4-P5.GL300

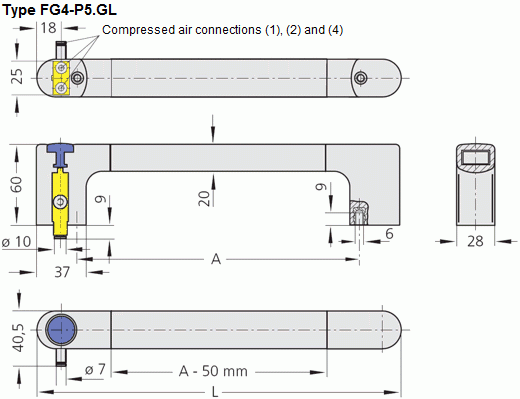

Engineering diagram of the FG4-P5.GL pneumatic handle showing front, side, and cross-sectional views with detailed dimensions and compressed air connection points.
Engineering diagram of the FG4-P5.GL pneumatic handle showing front, side, and cross-sectional views with detailed dimensions and compressed air connection points.
Unit of measure
Type
A L Description Anodizing version natural-colored with satin finish
Order-No.
A L Description Anodizing version natural-colored with satin finish
Order-No.
A 300 L 360 Description with straight adaptor left Anodizing version natural-colored with satin finish
Order-No. FG4-P5.GL300.11 3D+CAD

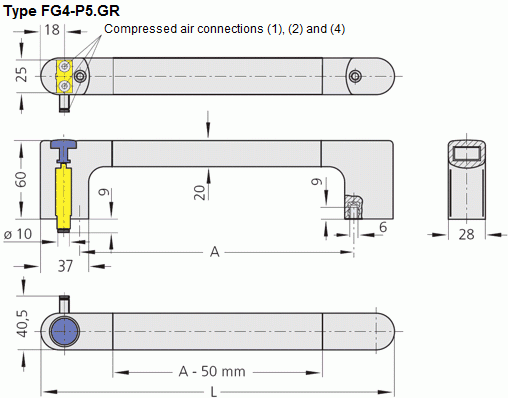

Version FG4-P5.GR300

Unit of measure
Type
A L Description Anodizing version natural-colored with satin finish
Order-No.
A L Description Anodizing version natural-colored with satin finish
Order-No.
A 300 L 360 Description with straight adaptor right Anodizing version natural-colored with satin finish
Order-No. FG4-P5.GR300.11 3D+CAD

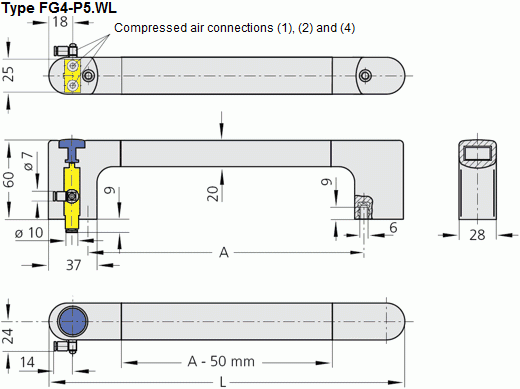

Version FG4-P5.WL300

Unit of measure
Type
A L Description Anodizing version natural-colored with satin finish
Order-No.
A L Description Anodizing version natural-colored with satin finish
Order-No.

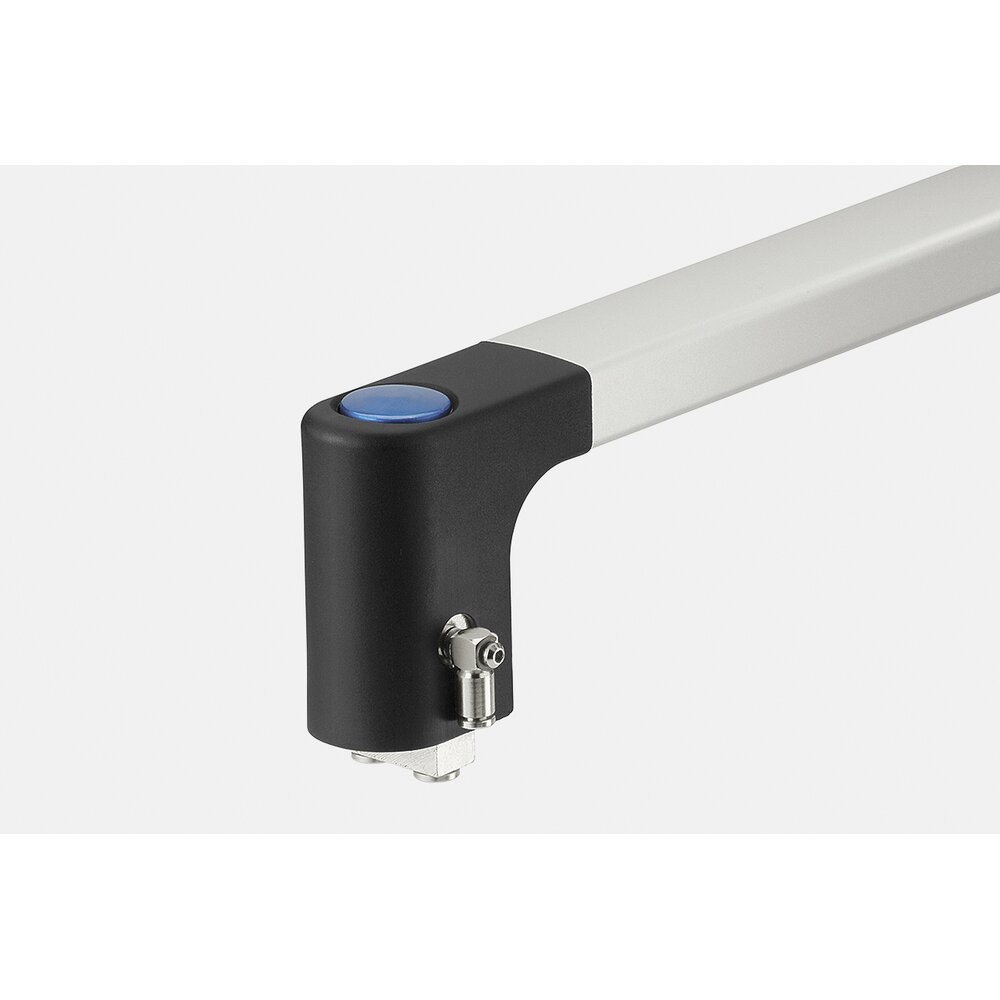

A 300 L 360 Description with angled adaptor left Anodizing version natural-colored with satin finish
Order-No. FG4-P5.WL300.11 3D+CAD

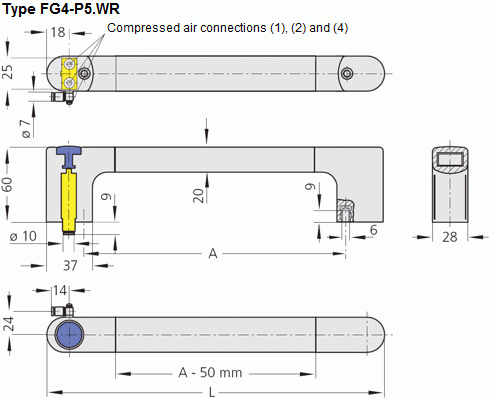

Version FG4-P5.WR300

Unit of measure
Type
A L Description Anodizing version natural-colored with satin finish
Order-No.
A L Description Anodizing version natural-colored with satin finish
Order-No.
A 300 L 360 Description with angled adaptor right Anodizing version natural-colored with satin finish
Order-No. FG4-P5.WR300.11 3D+CAD
