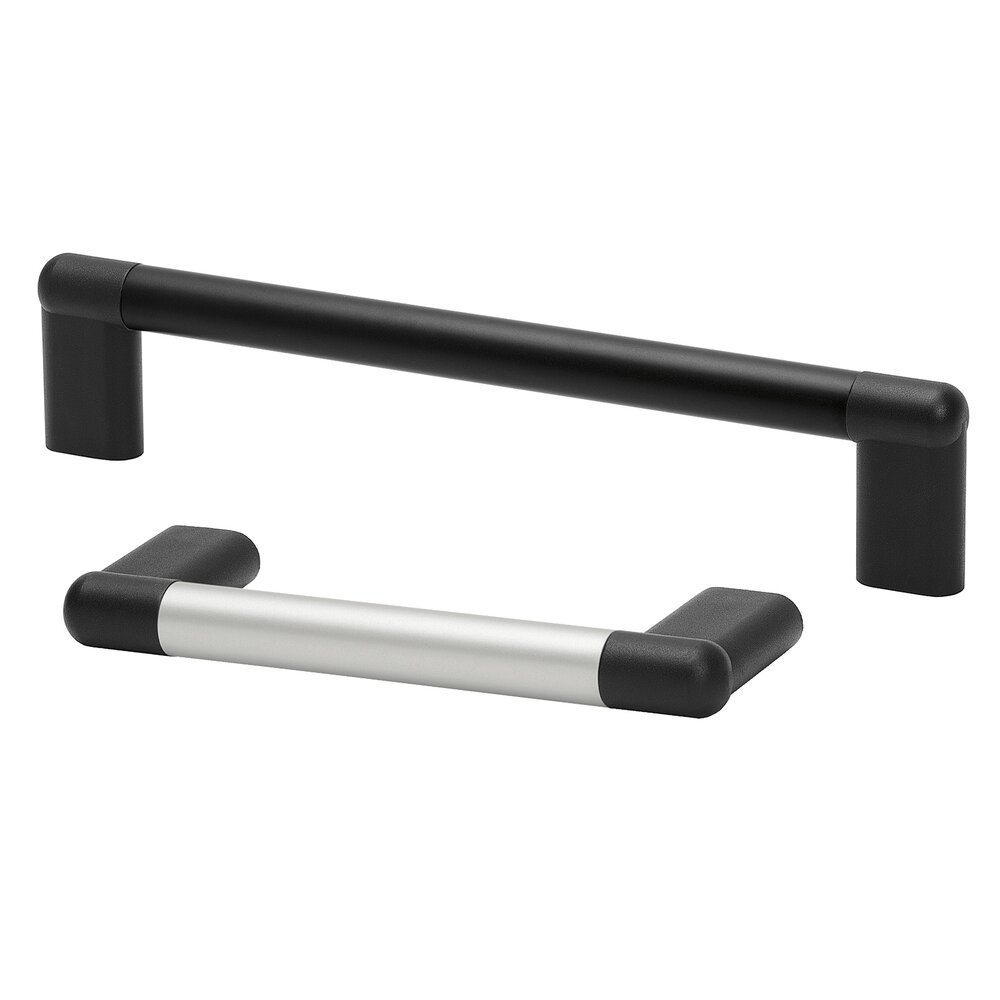

Handles UG-07

Material and surface:
Handle profile of aluminium round tube AlMgSi 0.5; fine ground and anodized in natural or black colour. Handle shanks of polyamide PA6, black with fine structure.

Note:
Any other handle lengths and surfaces available on request.

Stress resistance:
min. 500 N.

Technical data
Unit of measure
		Anodizing version
A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.
A120	L144	Anodizing version natural-colored Order-No. UG-07.120.01 3D+CAD	Anodized aluminum black Order-No. UG-07.120.04 3D+CAD
A150	L174	Anodizing version natural-colored Order-No. UG-07.150.01 3D+CAD	Anodized aluminum black Order-No. UG-07.150.04 3D+CAD
A180	L204	Anodizing version natural-colored Order-No. UG-07.180.01 3D+CAD	Anodized aluminum black Order-No. UG-07.180.04 3D+CAD
A200	L224	Anodizing version natural-colored Order-No. UG-07.200.01 3D+CAD	Anodized aluminum black Order-No. UG-07.200.04 3D+CAD
A250	L274	Anodizing version natural-colored Order-No. UG-07.250.01 3D+CAD	Anodized aluminum black Order-No. UG-07.250.04 3D+CAD
