EO-20.F, EO-26.F - Rohde AG | Aluminum, stainless steel and plastic handles

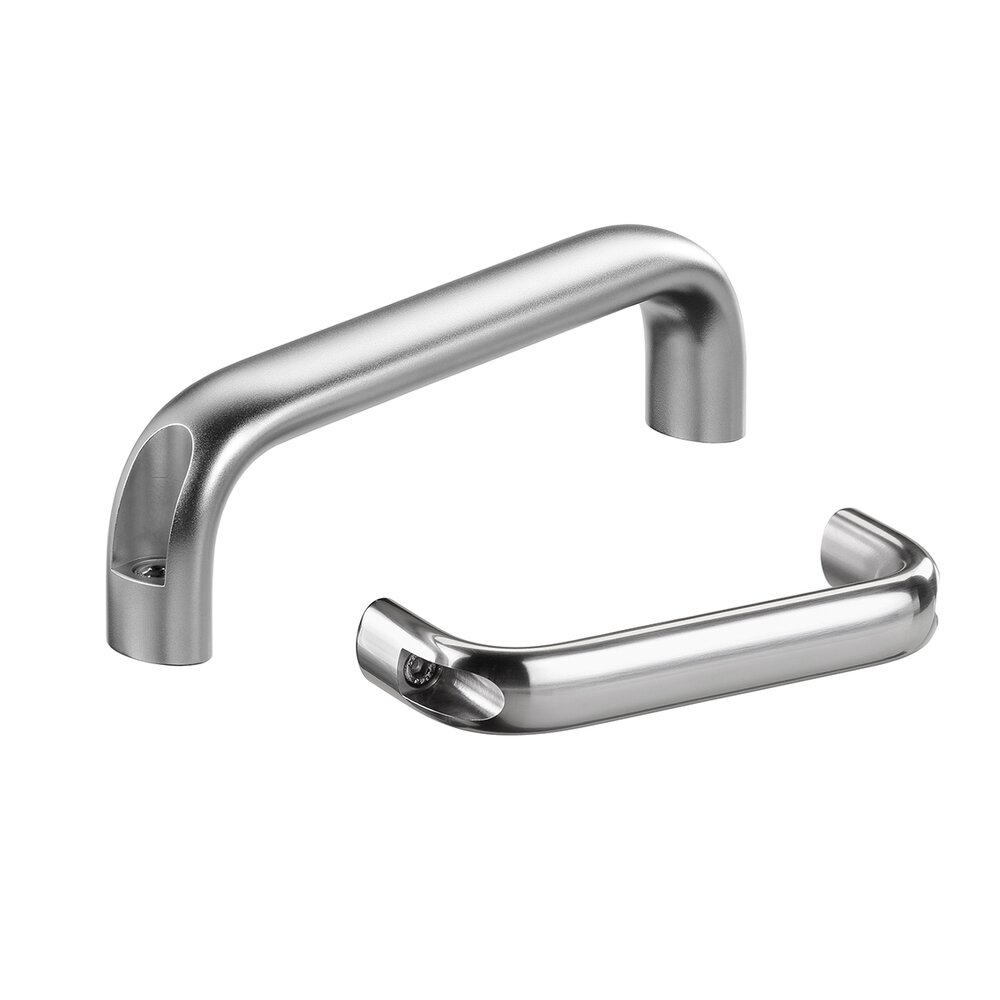

  • Two stainless steel handles with oval profiles and screws visible in cutout sections, one larger with a semi-matte finish and one smaller with a polished surface.
Two stainless steel handles with oval profiles and screws visible in cutout sections, one larger with a semi-matte finish and one smaller with a polished surface.

Handles EO-20.F, EO-26.F

Material and surface:
Oval-profiled stainless steel made of Materialno: 1.4307. or 1.4404.

Version A:
Surface ground, brushed and electropolished.

Version B:
Surface ground, blasted and electropolished with a half-matt finish.

Version C:
Surface ground, brushed and electropolished.

Note:
Other handle lengths on request.

Stress resistance:
min. 1000 N.

show more show less

Version EO-20.F

Unit of measure
Type
A Surface ground with a half-matt finish (Material: 1.4307 / 304L)
Order-No. 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. 		Surface ground with a half-matt finish (Material: 1.4404 / 316L)
Order-No. 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No.
A Surface ground with a half-matt finish (Material: 1.4307 / 304L)
Order-No. 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. 		Surface ground with a half-matt finish (Material: 1.4404 / 316L)
Order-No. 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No.
A 100 Surface ground with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F100.31 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F100.36 3D+CAD 		Surface ground with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F100.41 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F100.46 3D+CAD
A 120 Surface ground with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F120.31 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F120.36 3D+CAD 		Surface ground with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F120.41 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F120.46 3D+CAD
A 160 Surface ground with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F160.31 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F160.36 3D+CAD 		Surface ground with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F160.41 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F160.46 3D+CAD
A 180 Surface ground with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F180.31 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-20.F180.36 3D+CAD 		Surface ground with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F180.41 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-20.F180.46 3D+CAD

Version EO-26.F

Technical drawing showing side and top views of an oval-profile stainless steel handle with mounting nuts on both ends.
Unit of measure
Type
A Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. 		Surface ground, brushed and electropolished (Material: 1.4307 / 304L)
Order-No. 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. 		Surface ground, brushed and electropolished (Material: 1.4404 / 316L)
Order-No.
A Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. 		Surface ground, brushed and electropolished (Material: 1.4307 / 304L)
Order-No. 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. 		Surface ground, brushed and electropolished (Material: 1.4404 / 316L)
Order-No.
A 120 Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-26.F120.36 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4307 / 304L)
Order-No. EO-26.F120.38 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-26.F120.46 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4404 / 316L)
Order-No. EO-26.F120.48 3D+CAD
A 160 Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-26.F160.36 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4307 / 304L)
Order-No. EO-26.F160.38 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-26.F160.46 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4404 / 316L)
Order-No. EO-26.F160.48 3D+CAD
A 180 Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. Eo-26.F180.36 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4307 / 304L)
Order-No. EO-26.F180.38 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-26.F180.46 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4404 / 316L)
Order-No. EO-26.F180.48 3D+CAD
A 250 Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-26.F250.36 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4307 / 304L)
Order-No. EO-26.F250.38 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-26.F250.46 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4404 / 316L)
Order-No. EO-26.F250.48 3D+CAD
A 350 Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4307 / 304L)
Order-No. EO-26.F350.36 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4307 / 304L)
Order-No. EO-26.F350.38 3D+CAD 		Surface ground, blasted and electropolished with a half-matt finish (Material: 1.4404 / 316L)
Order-No. EO-26.F350.46 3D+CAD 		Surface ground, brushed and electropolished (Material: 1.4404 / 316L)
Order-No. EO-26.F350.48 3D+CAD
