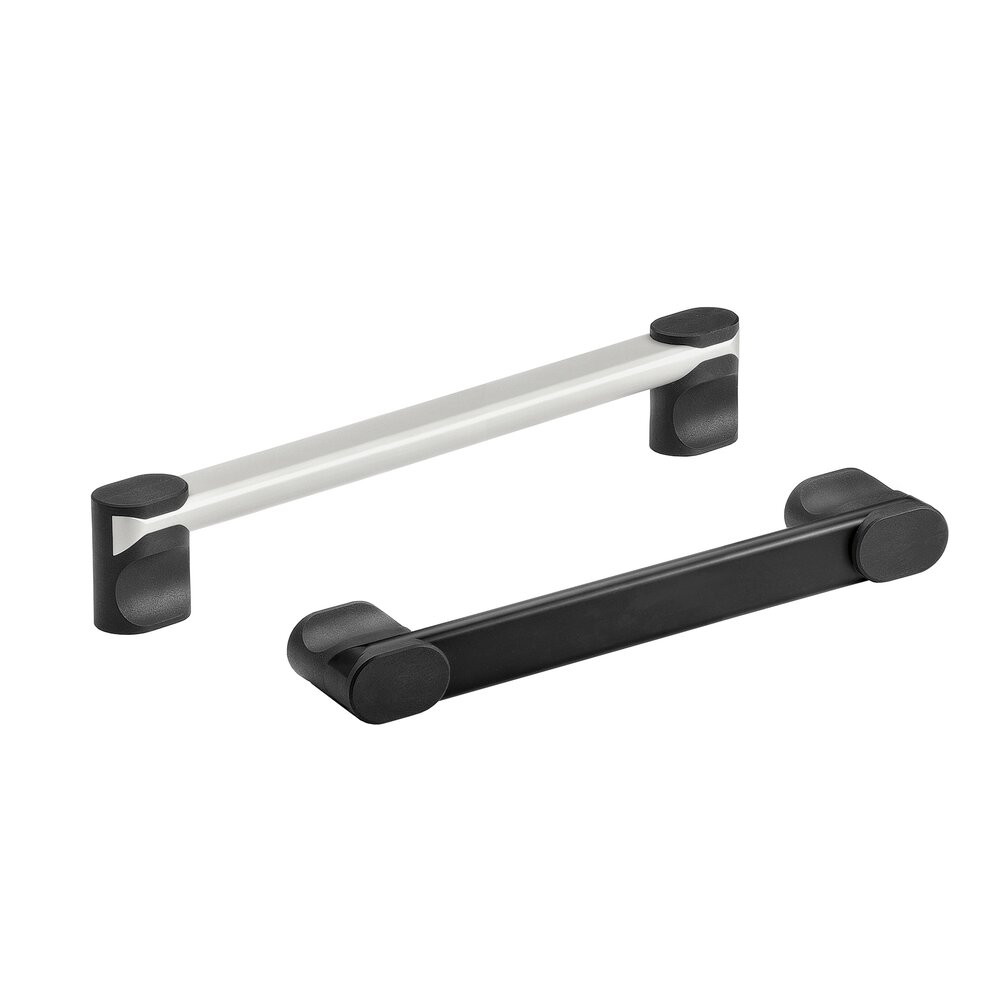

Handles VM-30

Material and surface:
Solid extruded aluminium oval profile AlMgSi 0.5; glass ball blasted, half-matt finished natural coloured or black anodized. Handle shanks made of polyamide PA6, black with fine structure.

Note:
Other handle lengths and colour combinations available on reques

Stress resistance:
min. 800 N.

Technical data
Unit of measure
	Anodizing version
A	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.
A200	Anodizing version natural-colored with satin finish Order-No. VM-30.200.S11 3D+CAD	Anodized aluminum black with satin finish Order-No. VM-30.200.S14 3D+CAD
A250	Anodizing version natural-colored with satin finish Order-No. VM-30.250.S11 3D+CAD	Anodized aluminum black with satin finish Order-No. VM-30.250.S14 3D+CAD
A300	Anodizing version natural-colored with satin finish Order-No. VM-30.300.S11 3D+CAD	Anodized aluminum black with satin finish Order-No. VM-30.300.S14 3D+CAD
