Handles U7

Material and surface:
Handle ledge ø30x5 mm aluminium round tube AlMgSi 0.5; fine ground and natural or black anodized. Handle shanks of polyamide PA6, black with fine structure.

Version:

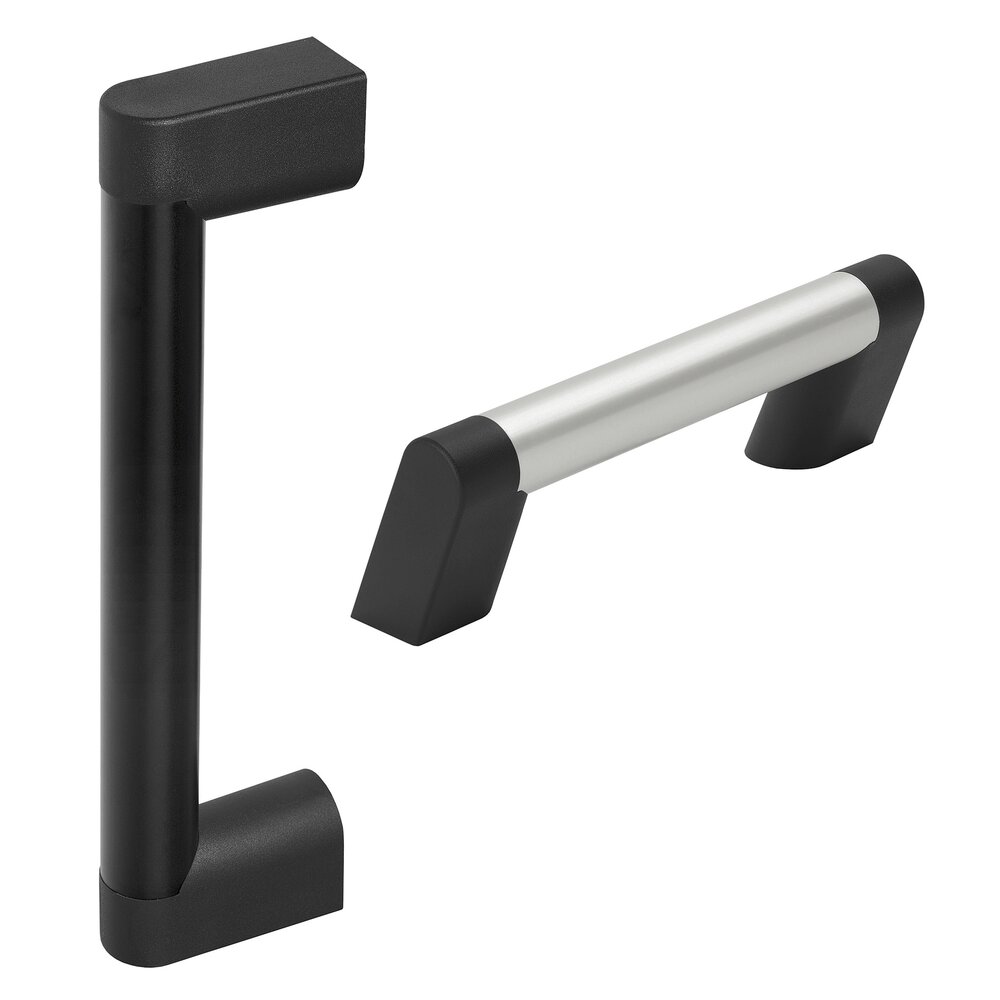

U7-30.G with straight polyamide shanks and U7-30.S with slanted polyamide shanks.

Note:
Any other handle lengths and anodized versions available on request.

Stress resistance:
min. 600 N.

Technical data
Unit of measure
			Type
Version	A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.
VersionG	A160	L223	Anodizing version natural-colored Order-No. U7-30.G160.01 3D+CAD	Anodized aluminum black Order-No. U7-30.G160.04 3D+CAD
VersionG	A220	L283	Anodizing version natural-colored Order-No. U7-30.G220.01 3D+CAD	Anodized aluminum black Order-No. U7-30.G220.04 3D+CAD
VersionS	A160	L223	Anodizing version natural-colored Order-No. U7-30.S160.01 3D+CAD	Anodized aluminum black Order-No. U7-30.S160.04 3D+CAD
VersionS	A220	L283	Anodizing version natural-colored Order-No. U7-30.S220.01 3D+CAD	Anodized aluminum black Order-No. U7-30.S220.04 3D+CAD
