Functional handles FG4-E
Handles with electrical switching functions by keypad.
Material and surface:
Handle shanks of polyamide PA6, glass ball reinforced, black, similar to RAL 9005, semi-matte with fine-grain structure. Connecting tube of profiled aluminium, natural coloured anodized.
Versions:

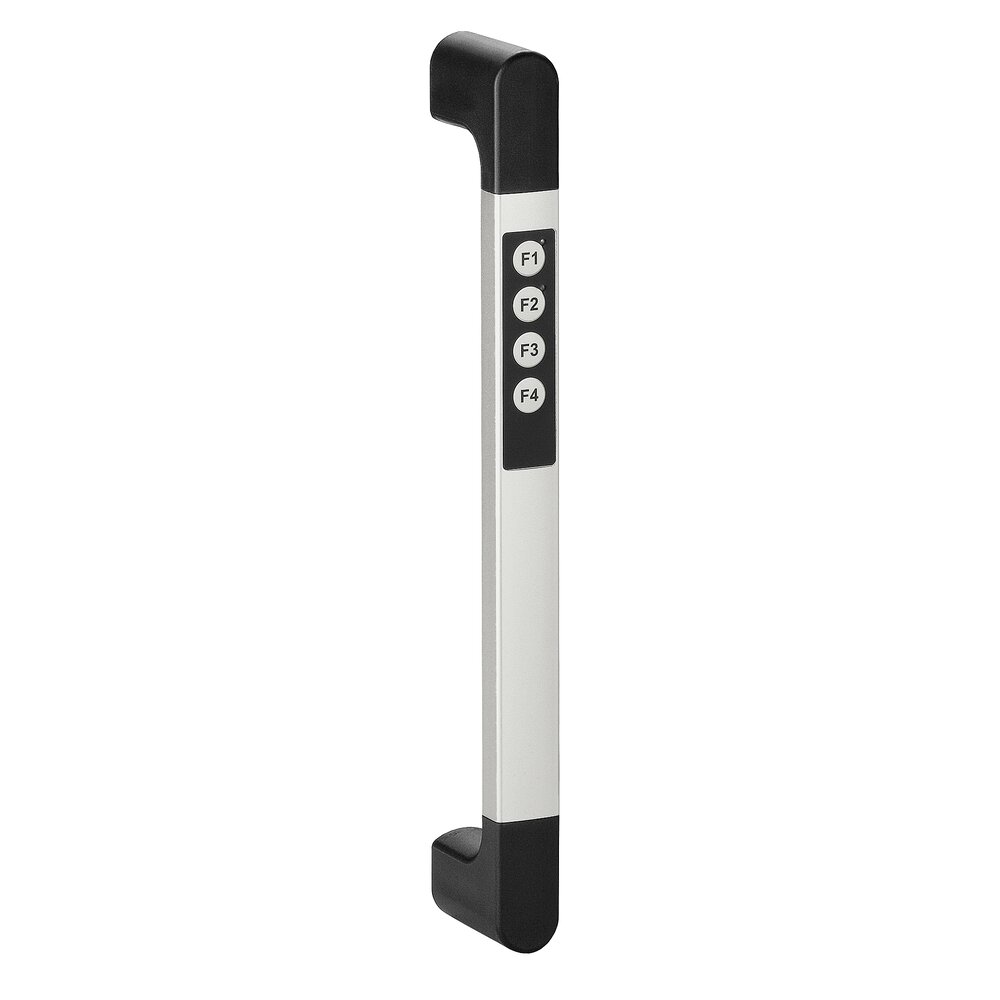

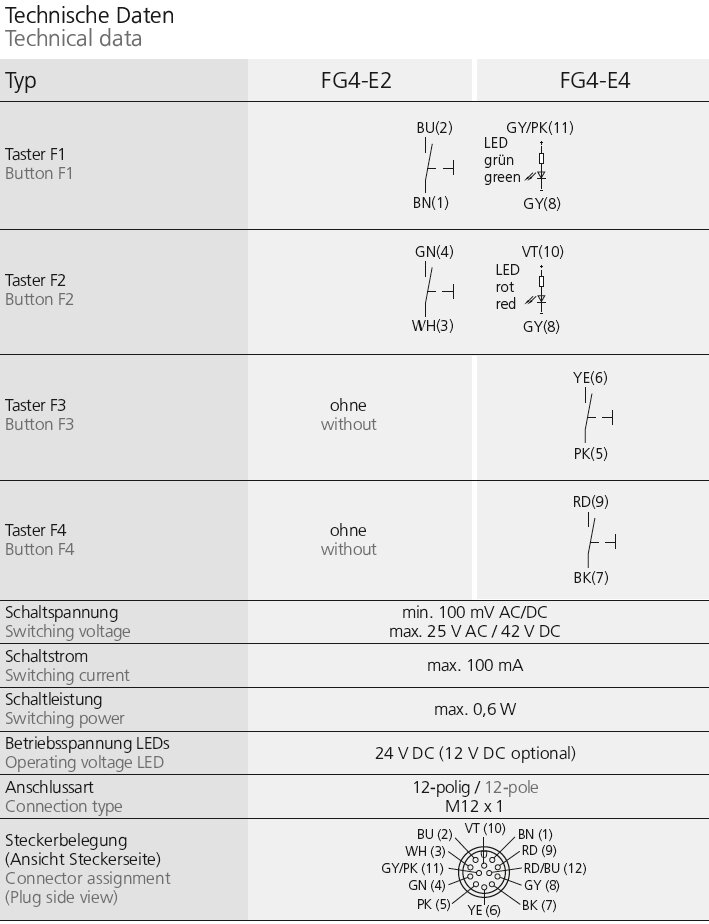

Keypad with 2 resp. 4 free optional push-buttons. Both buttons on top are additionally fitted with LEDs. Button labelling as standard with F1 to F4 or individually on customers request.
Connection:
12-pole, coupling with 10m ready-made cable as accessories available.
Special designs:
Other handle lengths on request.
- handle lengths customized
- button assignment according to customer requirements
- button / LED colors according to customer specifications
- further connection possibilities
- labeling possible
- further color versions
|
Unit of measure
|
||||
|---|---|---|---|---|

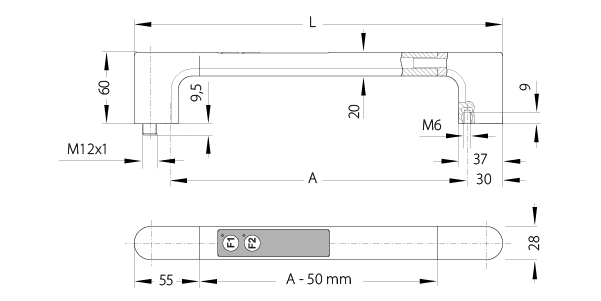

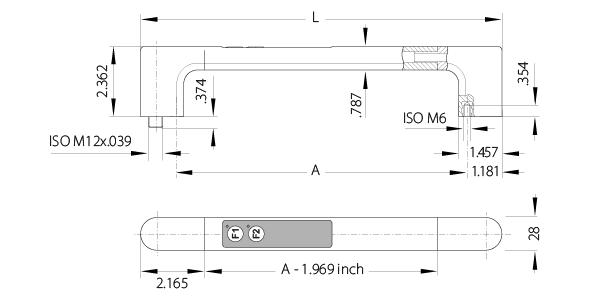

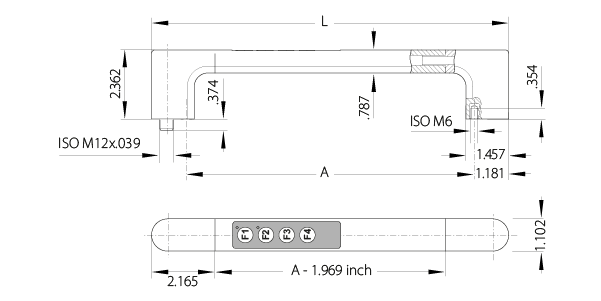

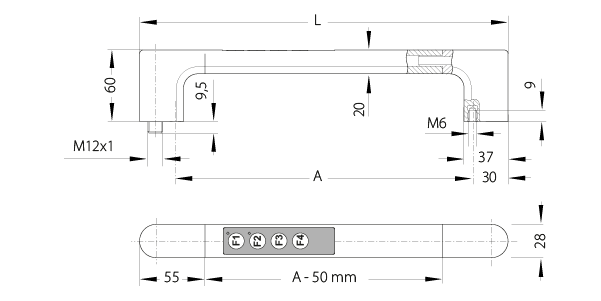

| Product Type | Description | A | L | Order-No. |
| Product Type | Description | A | L | Order-No. |
|---|---|---|---|---|
| Product Type FG4-E2-04 | Description Keypad with 2 buttons + emergency stop | A 350 | L 410 | Order-No. FG4-E2-04.350.11 3D+CAD |
| Product Type FG4-E2 | Description Keypad with 2 buttons | A 350 | L 410 | Order-No. FG4-E2.350.11 3D+CAD |
| Product Type FG4-E4-04 | Description Keypad with 4 buttons + emergency stop | A 350 | L 410 | Order-No. FG4-E4-04.350.11 3D+CAD |
| Product Type FG4-E4 | Description Keypad with 4 buttons | A 350 | L 410 | Order-No. FG4-E4.350.11 3D+CAD |
| Handle accessories | |||
|---|---|---|---|
| Length | Coupling |
12-pole (M12 x 1)
Order-No. |
|
| Length | Coupling |
12-pole (M12 x 1)
Order-No. |
|
|---|---|---|---|
|
Length 10 m | Coupling angled |
12-pole (M12 x 1)
Order-No. FZ-KS.W12.10 |
