Handles SG

The Rohde SG tray handle can be supplied in any length.

Material and surface:

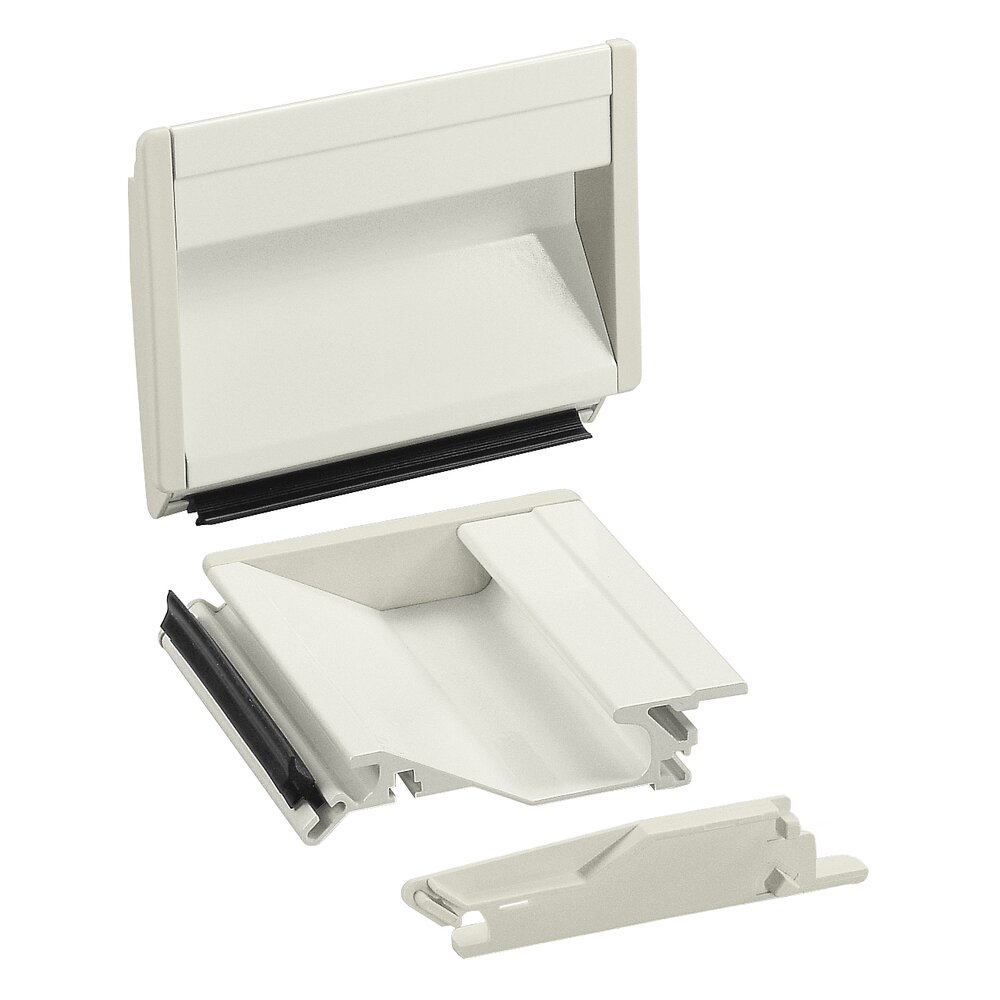

Handle tray made of profiled aluminium, varnished in RAL 9002 grey white. Side end caps made of Polyamide PA6 in similar RAL colour shade.

Design advantages:
Very simple installation. Does not require screws for metal thicknesses of 1-2.5 mm. Two rubber profiles guarantee tight and secure installation. Two cross slotted grooves for M4 screws displaced by 90° provide firm connection or may be used as mounting aids for installation elements. (For square nuts according to DIN standard 562).

Mounting:

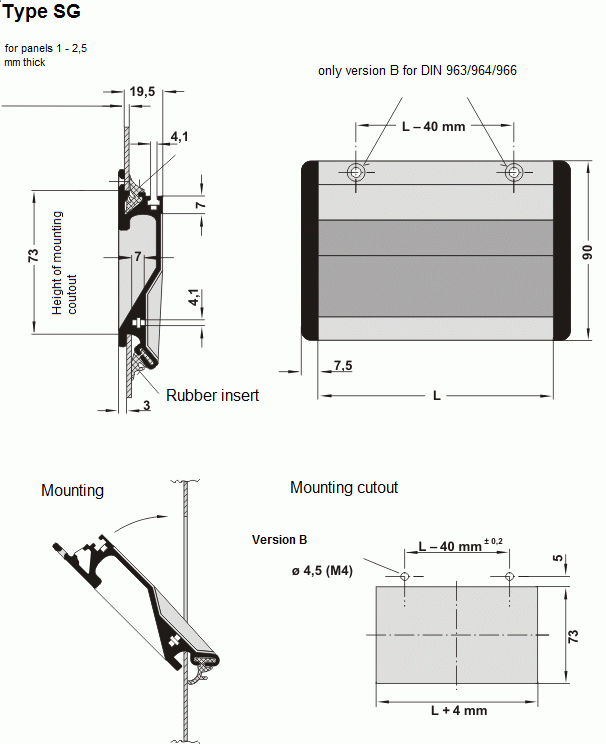

After insertion of the bottom rubber profile, the two end finals must be pushed on to the tray. Next the handle must be pressed over the lower edge of the mounting cutout at a 45° angle. Holding the handle against the housing panel, now the second rubber profile is pushed into the upper groove (see illustration).

Custom colours:
All handle lengths and RAL shades are available on request.

Stress resistance:
min. 500 N.
